Siemens Class 14 NEMA Starters

The Siemens 14GUG32A* is a 3-phase non-reversing motor starter with an  ESP200 25-100 Amp overload relay.  This NEMA Size 2 1/2 starter can start 3 -phase motors up to 30 HP on 460 VAC or up to 20 HP on 230 VAC. The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14GUG32AD

Read more less

The Siemens 14FUF32A* is a 3-phase non-reversing motor starter with an  ESP200 13-52 Amp overload relay.  This NEMA Size 2 starter can start 3 -phase motors up to 25 HP on 460 VAC or up to 15 HP on 230 VAC. The '*' in the part number above is replaced by the letter representing the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14FUF32AC

Read more less

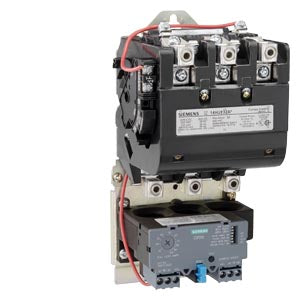

The Siemens 14DUE32A* is a 3-phase non-reversing motor starter with an  ESP200 10-40 Amp overload relay.  This NEMA Size 1 starter can start 3 -phase motors up to 10 HP on 460 VAC or up to 7.5 HP on 230 VAC. The '*' in the part number above is replaced by the letter representing the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14DUE32AC

Read more less

The Siemens 14EUE32A* is a 3-phase non-reversing motor starter with an  ESP200 10-40 Amp overload relay.  This NEMA Size 1 3/4 starter can start 3 -phase motors up to 15 HP on 460 VAC or up to 10 HP on 230 VAC. The '*' in the part number above is replaced by the letter representing the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14EUE32AC

Read more less

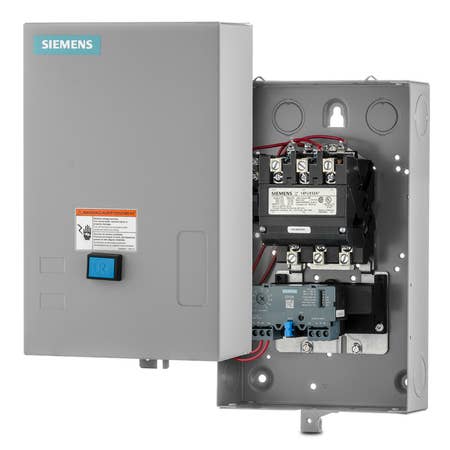

The Siemens 14GUG32B* is a Class 14 3-phase non-reversing motor starter with an  ESP200 25-100 Amp overload relay in a NEMA 1 metal box.  The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above. This NEMA Size 2 1/2 starter can start 3 -phase motors up to 30 HP on 460 VAC or up to 20 HP on 230 VAC. NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14GUG32AD

Read more less

The Siemens 14FUF32B* is a Class 14 3-phase non-reversing motor starter with an  ESP200 13-52 Amp overload relay in a NEMA 1 metal box.  The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above. This NEMA Size 2 starter can start 3 -phase motors up to 25 HP on 460 VAC or up to 15 HP on 230 VAC. NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14FUF32AA

Read more less

The Siemens 14EUE32B* is a Class 14 3-phase non-reversing motor starter with an  ESP200 10-40 Amp overload relay in a NEMA 1 metal box.  The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above. This NEMA Size 1 3/4 starter can start 3 -phase motors up to 15 HP on 460 VAC or up to 10 HP on 230 VAC. NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14EUE32AA

Read more less

The Siemens 14JUH32A* is a 3-phase non-reversing motor starter with an  ESP200 50-100 Amp overload relay.  This NEMA Size 4 starter can start 3 -phase motors up to 100 HP on 460 VAC or up to 50 HP on 230 VAC. The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14JUH32AA

Read more less

The Siemens 14IUH32A* is a 3-phase non-reversing motor starter with an  ESP200 50-100 Amp overload relay.  This NEMA Size 3 1/2 starter can start 3 -phase motors up to 75 HP on 460 VAC or up to 40 HP on 230 VAC. The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14IUH32AC

Read more less

The Siemens 14HUG32A* is a 3-phase non-reversing motor starter with an  ESP200 25-100 Amp overload relay.  This NEMA Size 3 starter can start 3 -phase motors up to 50 HP on 460 VAC or up to 30 HP on 230 VAC. The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.  NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The included ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14HUG32AA

Read more less

The Siemens 14DUE32Bx is a Class 14 3-phase non-reversing motor starter with an  ESP200 10-40 Amp overload relay in a NEMA 1 metal box.  The 'x' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above. This NEMA Size 1 starter can start 3 -phase motors up to 10 HP on 460 VAC or up to 7.5 HP on 230 VAC. NOTE: We can swap out the coil for the desired coil voltage you select.  So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.   The ESP200 solid-state overload relay has dip-switches to select the following settings: Selectable trip class 5,10,20 or 30 Phase-loss protection on or off Phase-unbalance protection on or off Ground fault-protection on or off Reset automatic or manual Complete Datasheet: 14DUE32AA

Read more less
