Weg VFD Drives

88 products

Filter

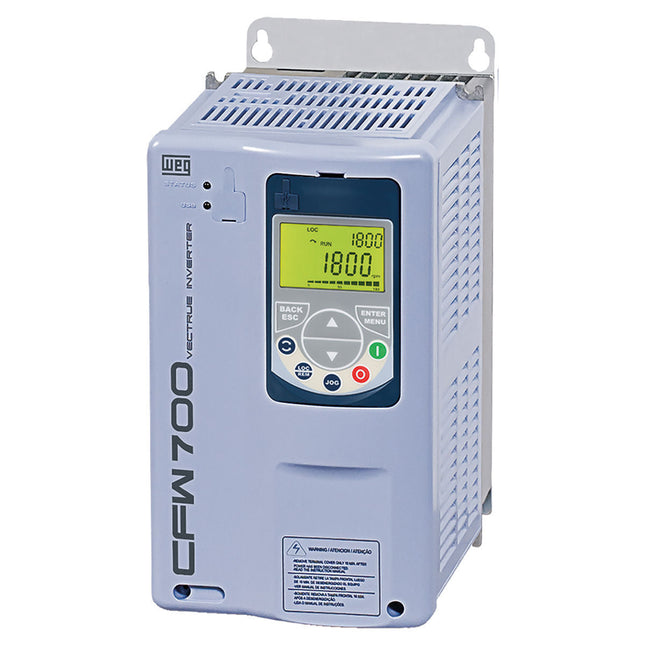

  • Weg CFW700A10P0T4DB20 10 Amp (7.5 HP) 380-480 VAC 3-phase VFD AC Drive

    View options

    Weg Weg CFW700A10P0T4DB20 10 Amp (7.5 HP) 380-480 VAC 3-phase VFD AC Drive

    The CFW700 series drive is optimized for variable torque applications such as pumps and fans, as well as general-purpose uses. Key features include build-in DC bus chokes for reduced harmonics on the line without the need for external reactors, built-in 24 VDC supply for external transducers, conformal coated circuit boards for harsh environments and prolonged life, built-in USB and RS-485 communications, and built-in Soft-PLC for complex programmable control. Communication options include  CANopen, DeviceNet, Profibus, and Modbus. Available in a IP20 DIN rail mountable enclosure. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs. Catalog No. CFW700A10P0T4DB20 Phase 3-phase Voltage 380-480 VAC Amps 10 HP 7.5 Braking Transistor Yes Enclosure IP20 Frame Size A: 12.1"H x 5.8"W x 9.0"D Weight 13.00   Documentation , CFW700 Users Manual CFW700 Brochure CFW700 Programming Manual CFW700 SoftPLC Manual CFW700 Parameter Quick Reference CFW700 Adenddum

    Read more

    $857.14

    View options

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S120G2 VFD 1.6A 0.33HP 120 VAC Single-Phase Input

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    $178.67

    View options

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S220G2 VFD 1.6A 0.33HP 220 VAC Single-Phase Input

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    $160.05

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S120G2 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    Delivery within 48 hours, pay afterwards

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Delivery within 48 hours, pay afterwards

    $194.97

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S220G2 VFD 2.6A 0.75HP 220 VAC Single-Phase Input

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    $172.27

    View options

  • Weg CFW100 VFD Frame Size C

    View options

    WEG Weg CFW100C04P2S220G2 VFD 4.2A 1HP 220 VAC Single-Phase Input

    Delivery within 48 hours, pay afterwards

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Delivery within 48 hours, pay afterwards

    $183.33

    View options

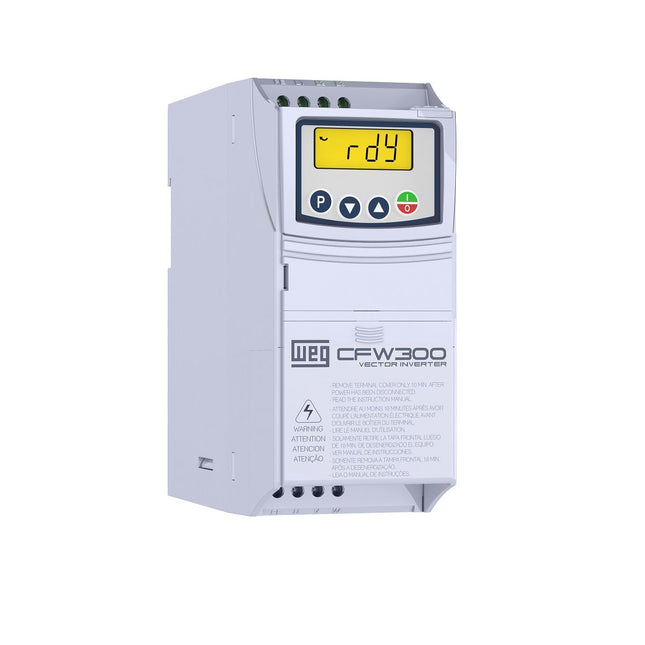

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A01P6S1NB20 VFD 1.6A 0.33HP 120 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $218.04

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A01P6S2NB20 VFD 1.6A 0.33HP 230 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $195.09

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A01P6T2NB20 VFD 1.6A 0.33HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $207.17

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A02P6S1NB20 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $237.98

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A02P6S2NB20 VFD 2.6A 0.75HP 230 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $210.19

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A02P6T2NB20 VFD 2.6A 0.75HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $227.10

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A04P2S1NB20 VFD 4.2A 1HP 120 VAC Single-Phase Input

      **This model has been superceded by the CFW320A04P2S1NB20.  Please click that link to purchase as this model is no longer available.** The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $253.68

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A04P2S2NB20 VFD 4.2A 1HP 230 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $224.08

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A04P2T2NB20 VFD 4.2A 1HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $241.00

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A06P0S1NB20 VFD 6.0A 2HP 120 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $306.23

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A06P0S2NB20 VFD 6.0A 2HP 230 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $278.44

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A06P0T2NB20 VFD 6.0A 2HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $292.34

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A07P3S2NB20 VFD 7.3A 2HP 230 VAC Single-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $327.97

    View options

  • Weg CFW300 VFD Frame Size A

    View options

    WEG Weg CFW300A07P3T2NB20 VFD 7.3A 2HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $344.88

    View options

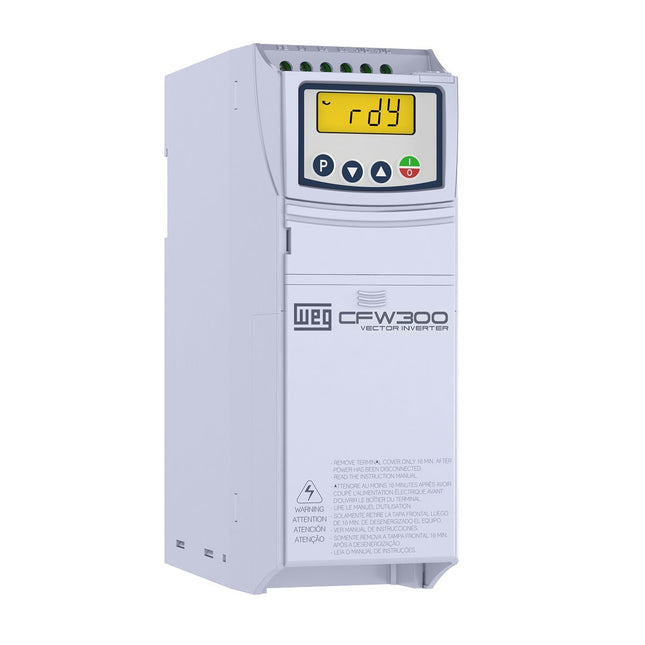

  • Weg CFW300 VFD Frame Size B

    View options

    WEG Weg CFW300B10P0B2DB20 VFD 10.0A 3HP 230 VAC Single/Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $391.39

    View options

  • Weg CFW300 VFD Frame Size B

    View options

    WEG Weg CFW300B15P2T2DB20 VFD 15.2A 5HP 230 VAC Three-Phase Input

    The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP. Features DIN-Rail Form Factor Easily replace contactor/overlaod setup with VFD. Built-In Motor Protection Protects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLC Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller PID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for Options Large variety of communications and I/O Option Modules available Conformal-Coated Circuit Boards Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW300 Users Manual CFW300 Brochure CFW300 Programming Manual CFW300 Quick Installation Guide CFW300 Quick Parameter Reference

    Read more

    $478.37

    View options

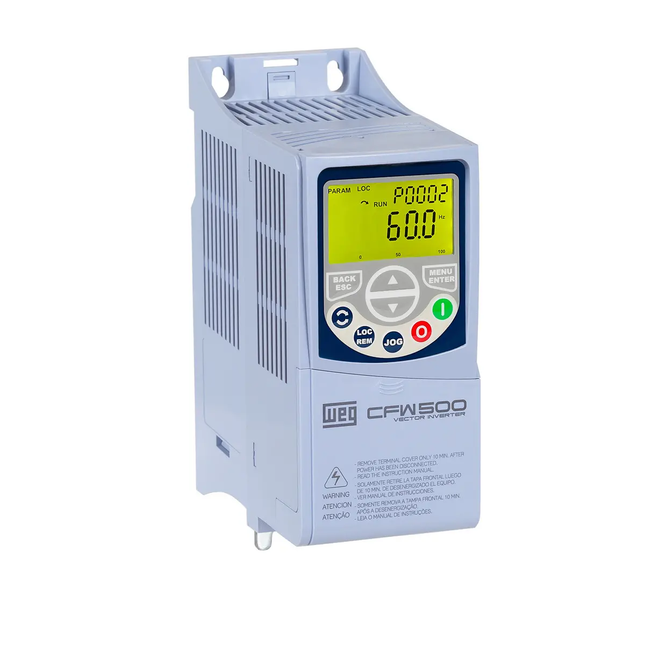

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P0T4NB20G2 VFD 1.0 Amp 0.5 HP 460 VAC Three-Phase Input

    WEG Product Code: 15572819 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    $351.53

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6B2NB20 VFD 1.6 Amp 0.33 HP 230 VAC Single/Three-Phase Input

    Delivery within 48 hours, pay afterwards

    WEG Product Code: 11575745 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Delivery within 48 hours, pay afterwards

    $275.42

    View options

You have seen 24 out of 88 products

Show more products



Weg automation and drive products, based in Brazil, are less immune to supply issues than products coming from Asia.   Caldwell Electric maintains a good stock of Weg VFDs, drives and other automation controls including contactors, and soft starters.

High-performance and energy-efficient solutions, WEG frequency inverters use cutting-edge technology for the speed variation of three-phase induction motors. Presenting a modern design and easy installation, they can be used in different industry segments, streamlining operations and contributing to the environment conservation.
