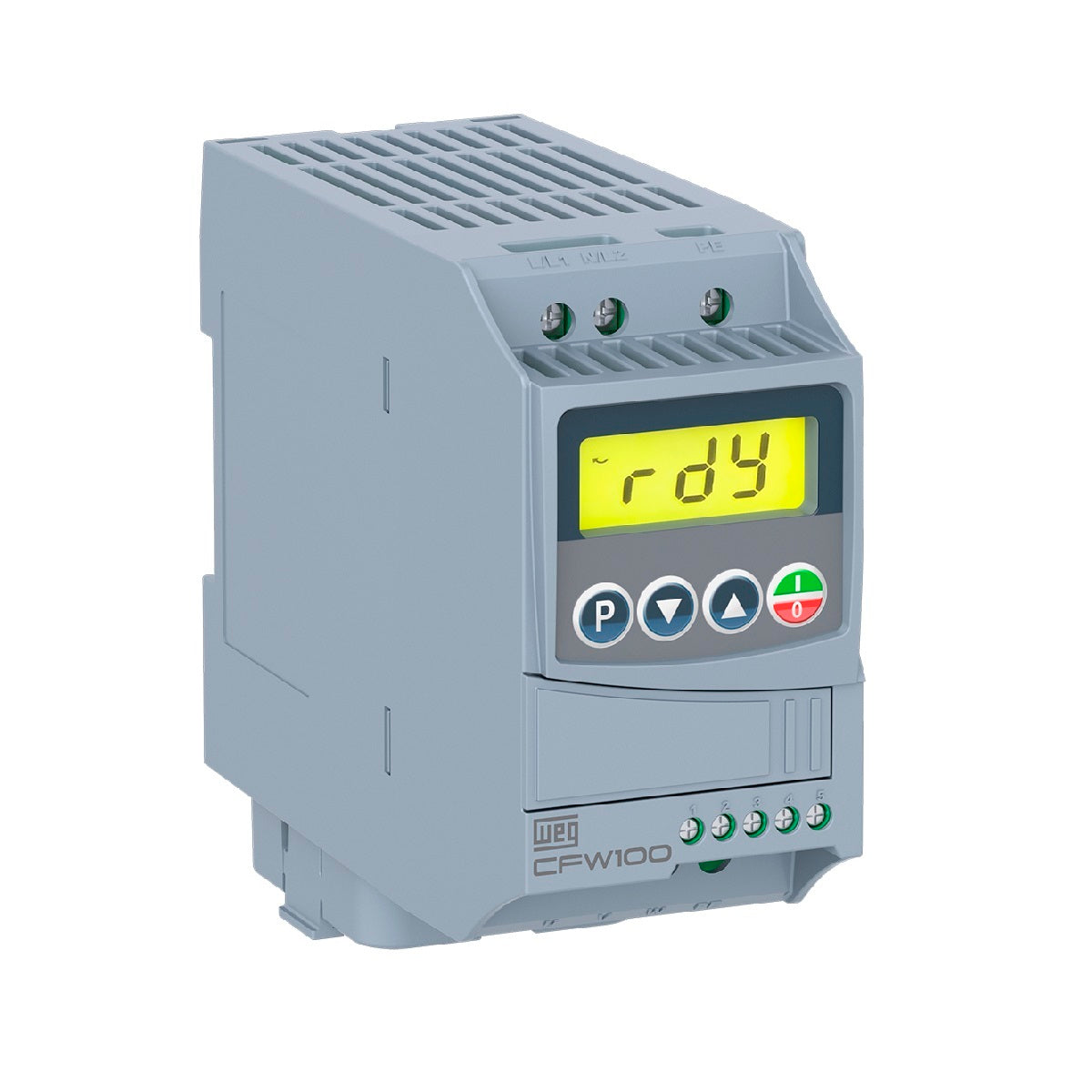

Weg CFW100B02P6S120G2 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available.

Features

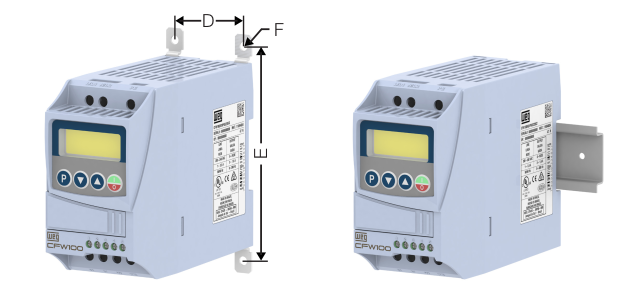

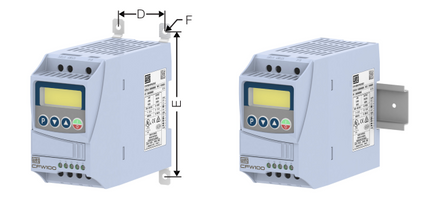

• DIN-Rail Form Factor
  Easily replace contactor/overload setup with VFD.
• Robust
  Overload current to 150% for 60 seconds, Ambient Temp. to 50°C
• SoftPLC
  Flexible customizable applications programmable with ladder logic
• PID Controller
  Performance control based on parameter changes (pressure, flow, or other input)
• Communication Protocols
  Modbus-RTU,CANopen, RS-485, Ethernet and other options
• Conformal Coated Circuits
  Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3.

Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.

A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor.

Documentation

• CFW100 Users Manual
• CFW100 Flyer
• CFW100 Programming Manual
• CFW100 SoftPLC Manual
• CFW100 Quick Installation Guide
• CFW100 Quick Parameter Reference
