Description
WEG Product Code: 15573714

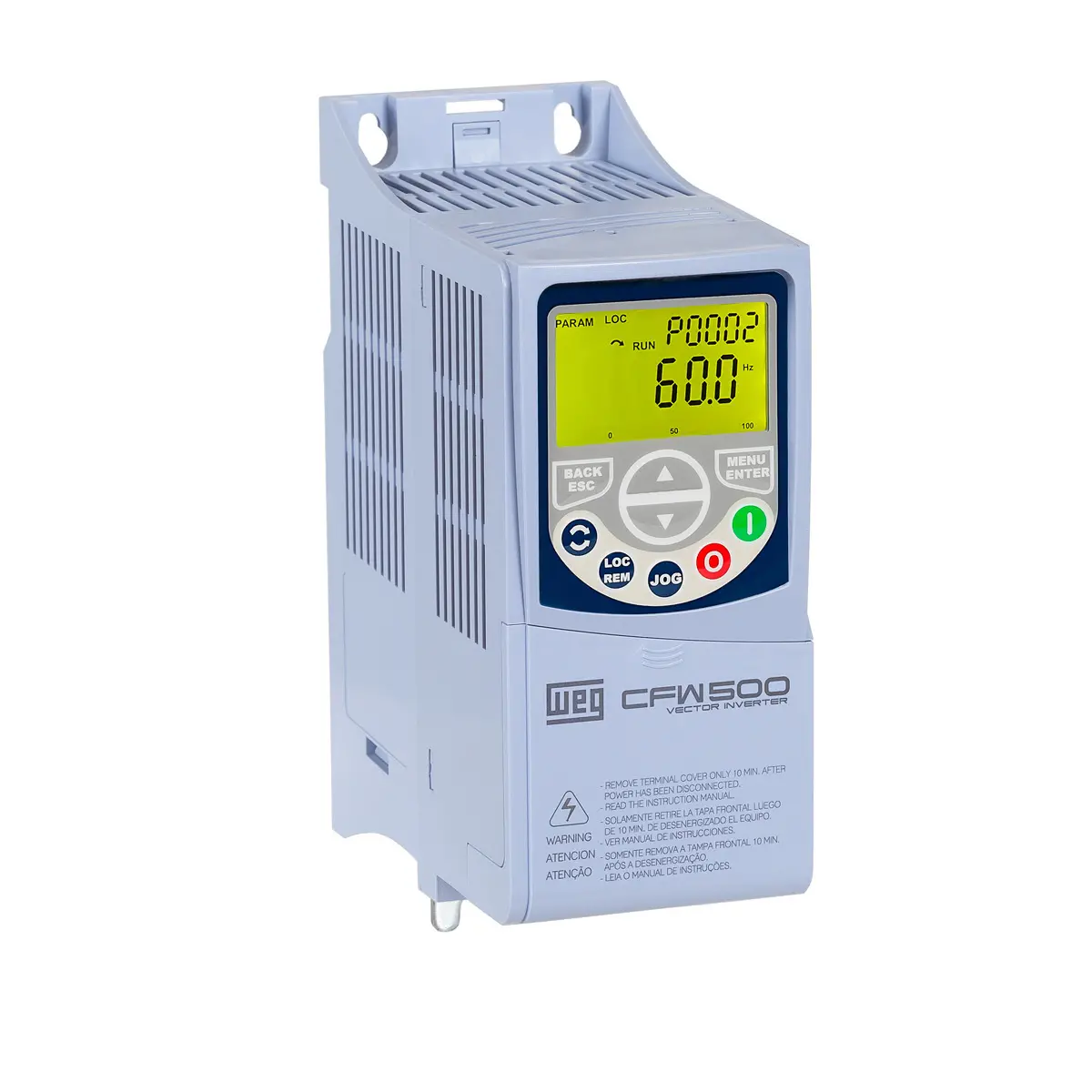

The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders,
general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C.
The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric
can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.
This is a CFW500 Generation 2 (G2) VFD. What is the difference?
Features
-
Multiple Control Modes:
Scaler (V/F), VVW (including PM motor), Vector (open and closed loop)
- Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds
-
Built-In Motor Protection:
Protects motor from overload/overcurrent, overvoltage, phase-loss, and more
-

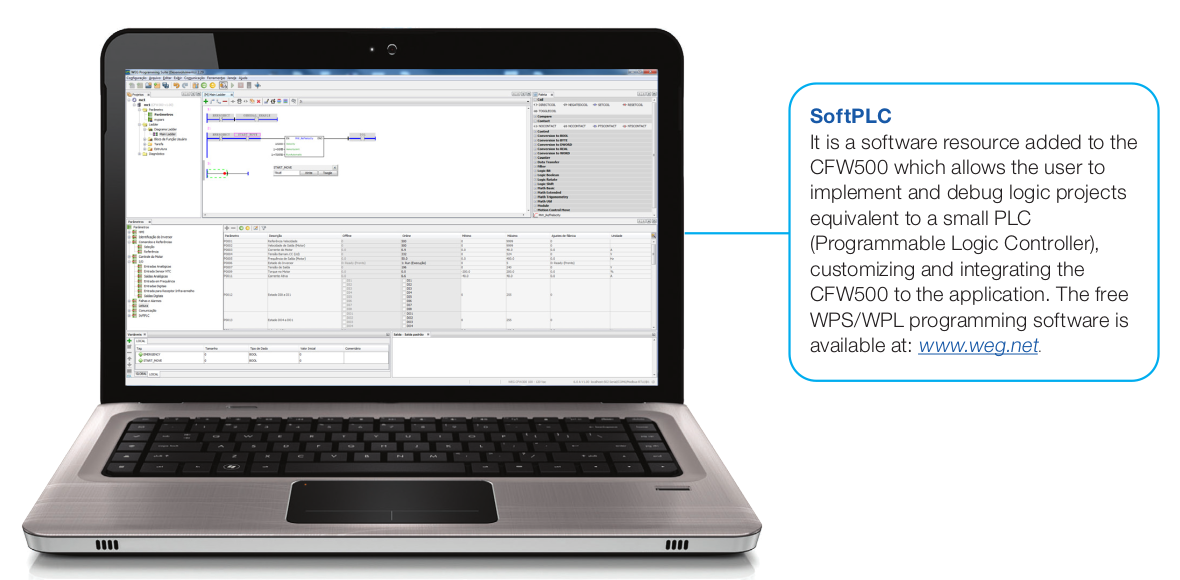

Built-in SoftPLC:
Flexible customization with programmable ladder logic and free WPS software.
-
Built-In PID Controller:
PID mode provides closed loop process control from pressure, flow, or other input.
- Ambient Temp Rating to 50°C (frame-dependent)

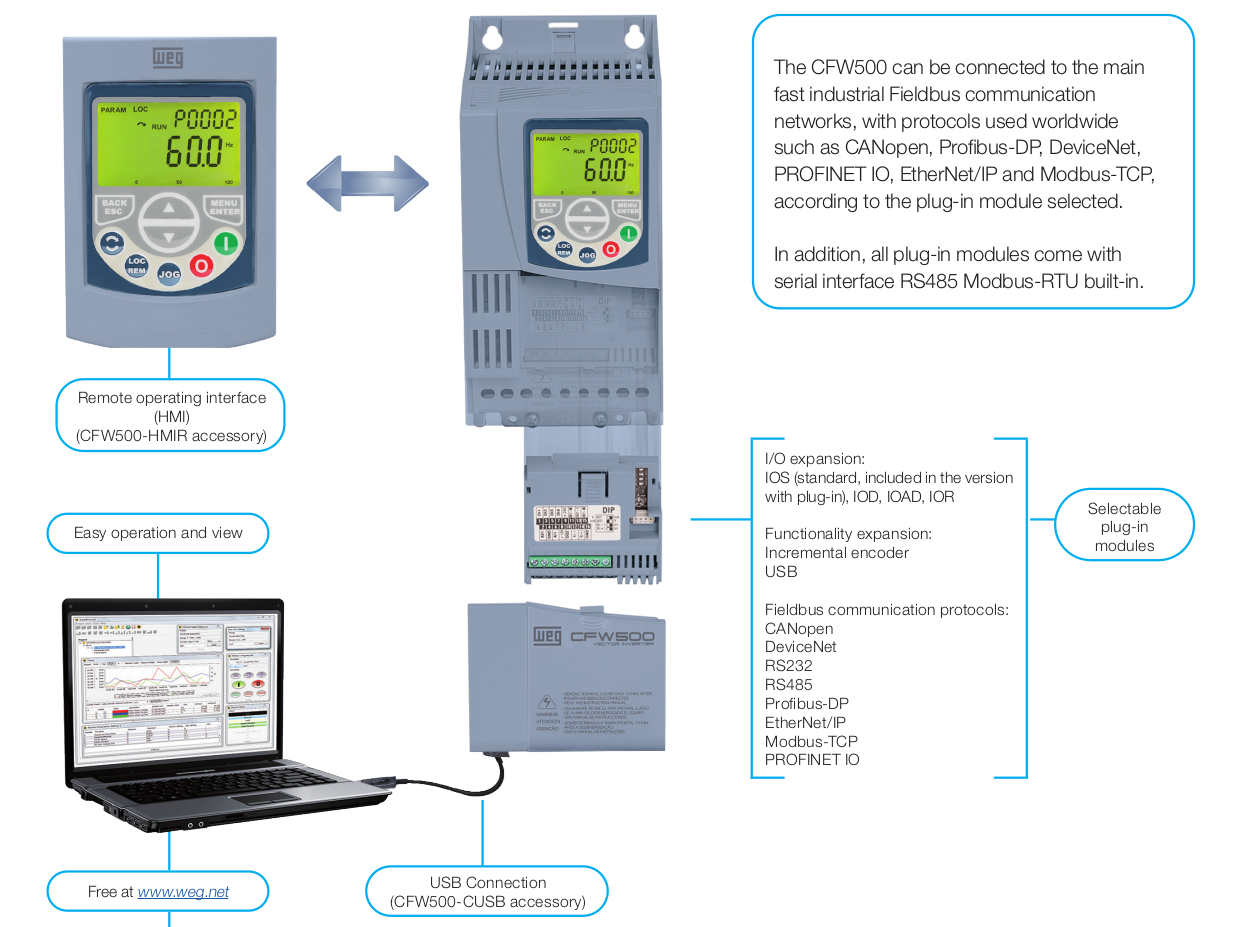

- Large variety of communications and I/O Option Modules available:
RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more
-
Conformal-Coated Circuit Boards:
Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3.
-
Available with WEG Pump Genius:
Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more
