Description

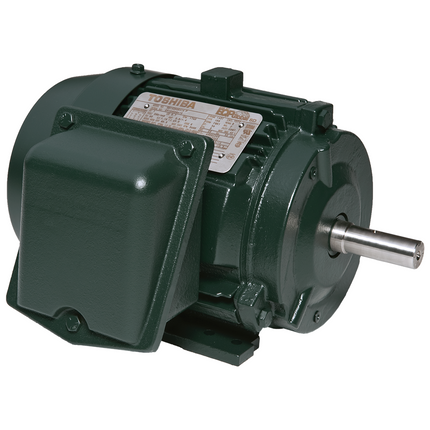

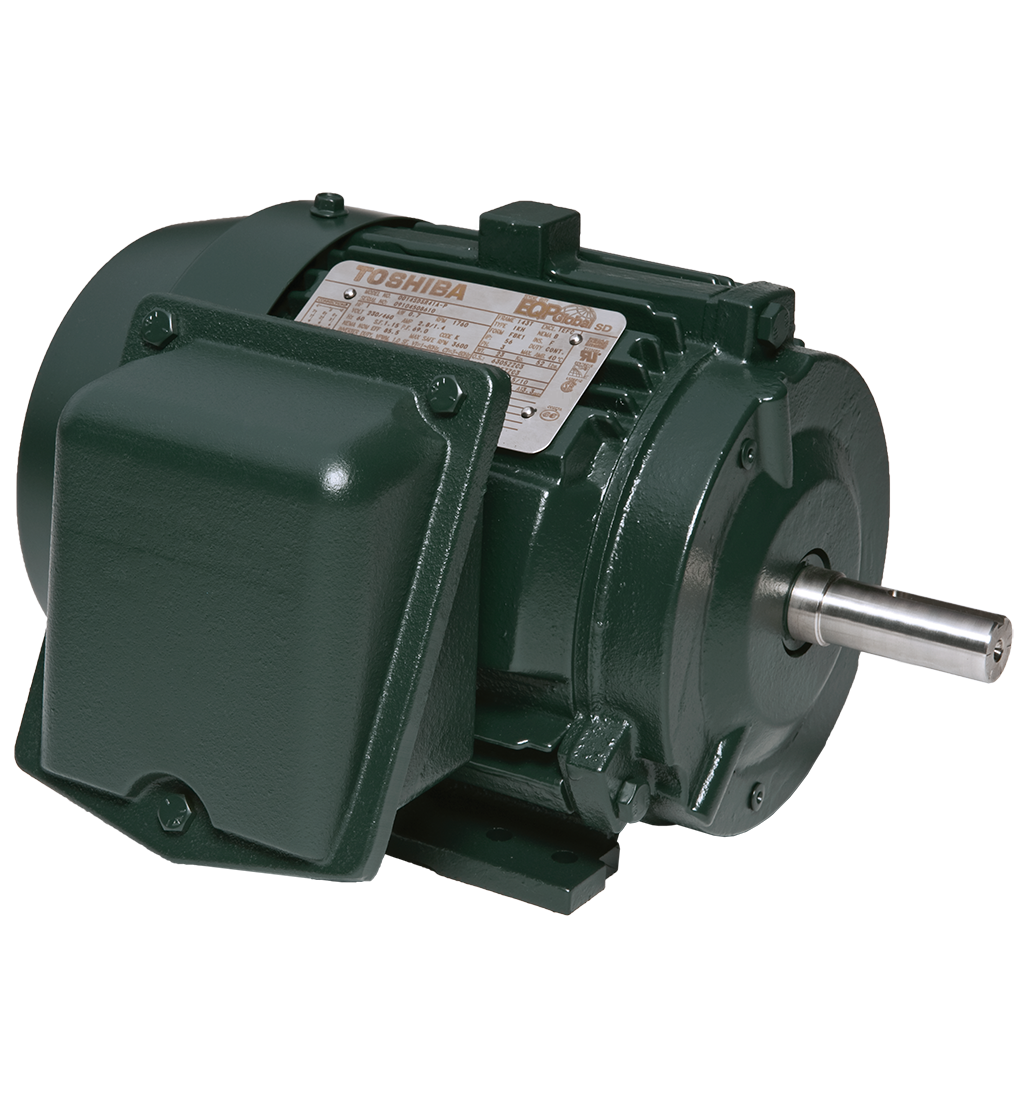

The Toshiba EQP Severe Duty series is a robust cast iron 3-phase motor designed for general purpose use in harsh environments. Features include an oversized cast-iron terminal box, 12 leads, and cast-iron fan cover. The NEMA Premium Efficiency motor is designed for durability, boasting an IP55 rating that effectively protects against moisture and contaminants.
Applications
- Fans and Blowers
- Compressors
- Pumps
- Material Handling
- Mixers
- Conveyors
- Any Severe Duty / Petro-Chem / Pulp & Paper Application
Specs
- Brand: Toshiba
- Model: 0204SDSR41A-P
- Series: EQP Severe Duty
- Output Power: 20 HP
- RPM: 1770
- Frame: 256T
- Enclosure: TEFC IP55
- Input Voltage: 230/460 VAC 3-Phase (usable on 208V)
Features
- Enclosure TEFC IP55 Rated
- Service Factor: 1.15

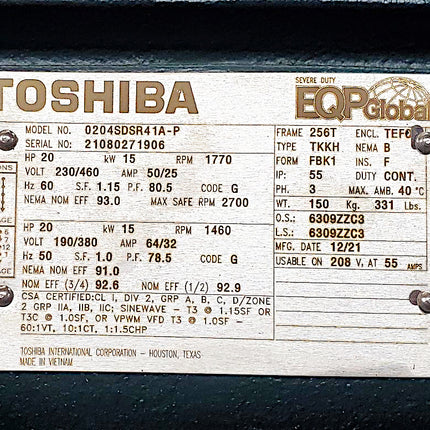

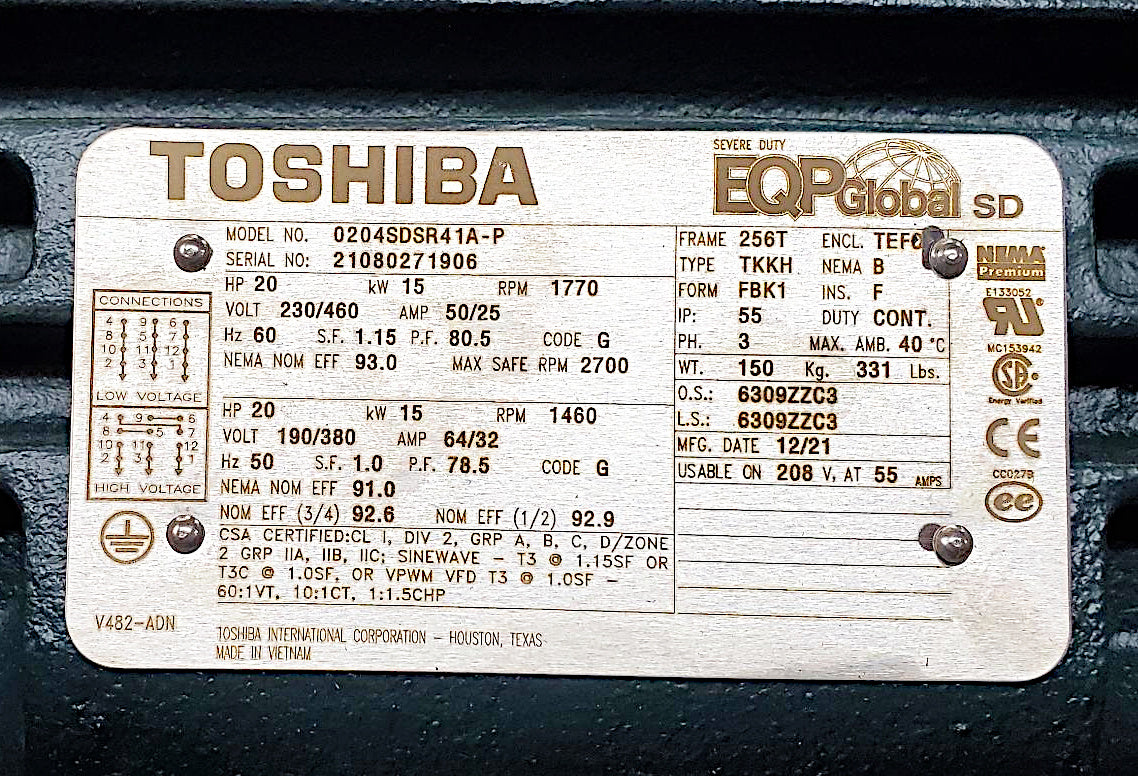

- Stainless Steel Nameplate
- Inverter Duty Rated
- Class I, Div 2 Groups A,B,C,D Rated
