Siemens 14GUG32B* NEMA Size 2 1/2 Starter in NEMA 1 Enclosure

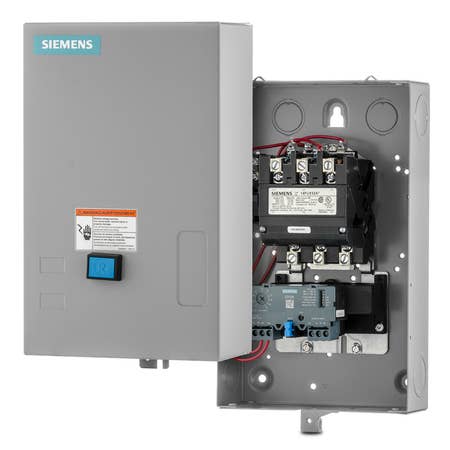

The Siemens 14GUG32B* is a Class 14 3-phase non-reversing motor starter with an ESP200 25-100 Amp overload relay in a NEMA 1 metal box. The '*' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.
This NEMA Size 2 1/2 starter can start 3 -phase motors up to 30 HP on 460 VAC or up to 20 HP on 230 VAC.
NOTE: We can swap out the coil for the desired coil voltage you select. So even if the item shows out of stock, we can usually swap the coil and ship the starter with the correct coil in it. Contact us if you wish to verify availability.

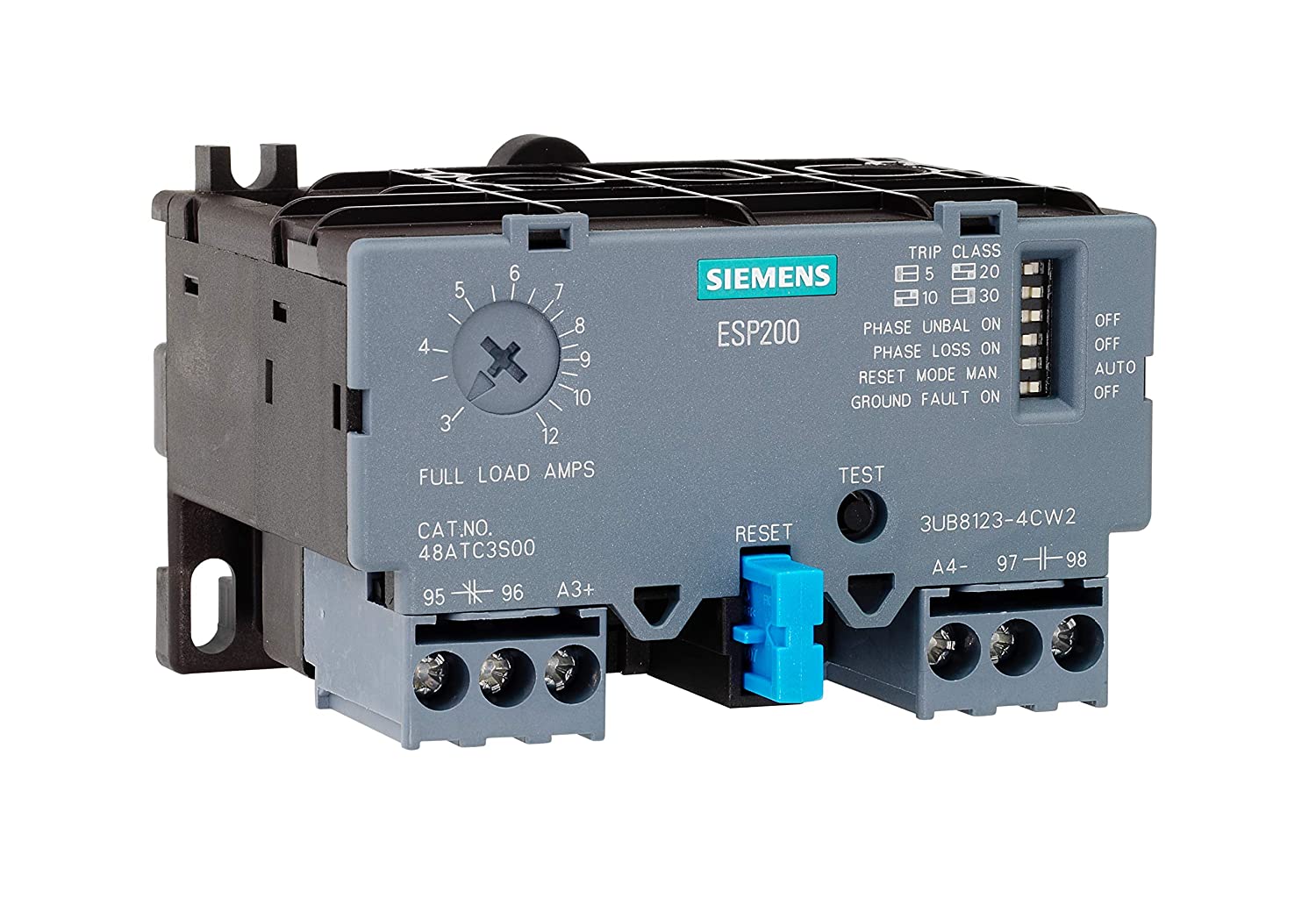

The ESP200 solid-state overload relay has dip-switches to select the following settings:
- Selectable trip class 5,10,20 or 30
- Phase-loss protection on or off
- Phase-unbalance protection on or off
- Ground fault-protection on or off
- Reset automatic or manual
Complete Datasheet: 14GUG32AD
