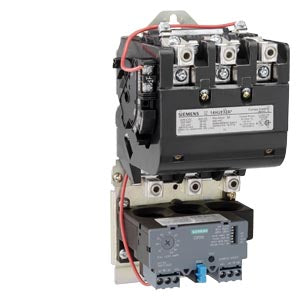

Siemens 14GUG32A NEMA Size 2 1/2 Starter with 25-100 Amp Overload
The Siemens 14GUG32Ax is a 3-phase non-reversing motor starter with an ESP200 25-100 Amp overload relay. This NEMA Size 2 1/2 starter can start 3 -phase motors up to 30 HP on 460 VAC or up to 20 HP on 230 VAC. The 'x' in the part number above is replaced by the letter from the coil voltage from the coil voltage selection above.
NOTE: We will swap out the coil with a Siemens or equivalent brand for the desired coil voltage you select.

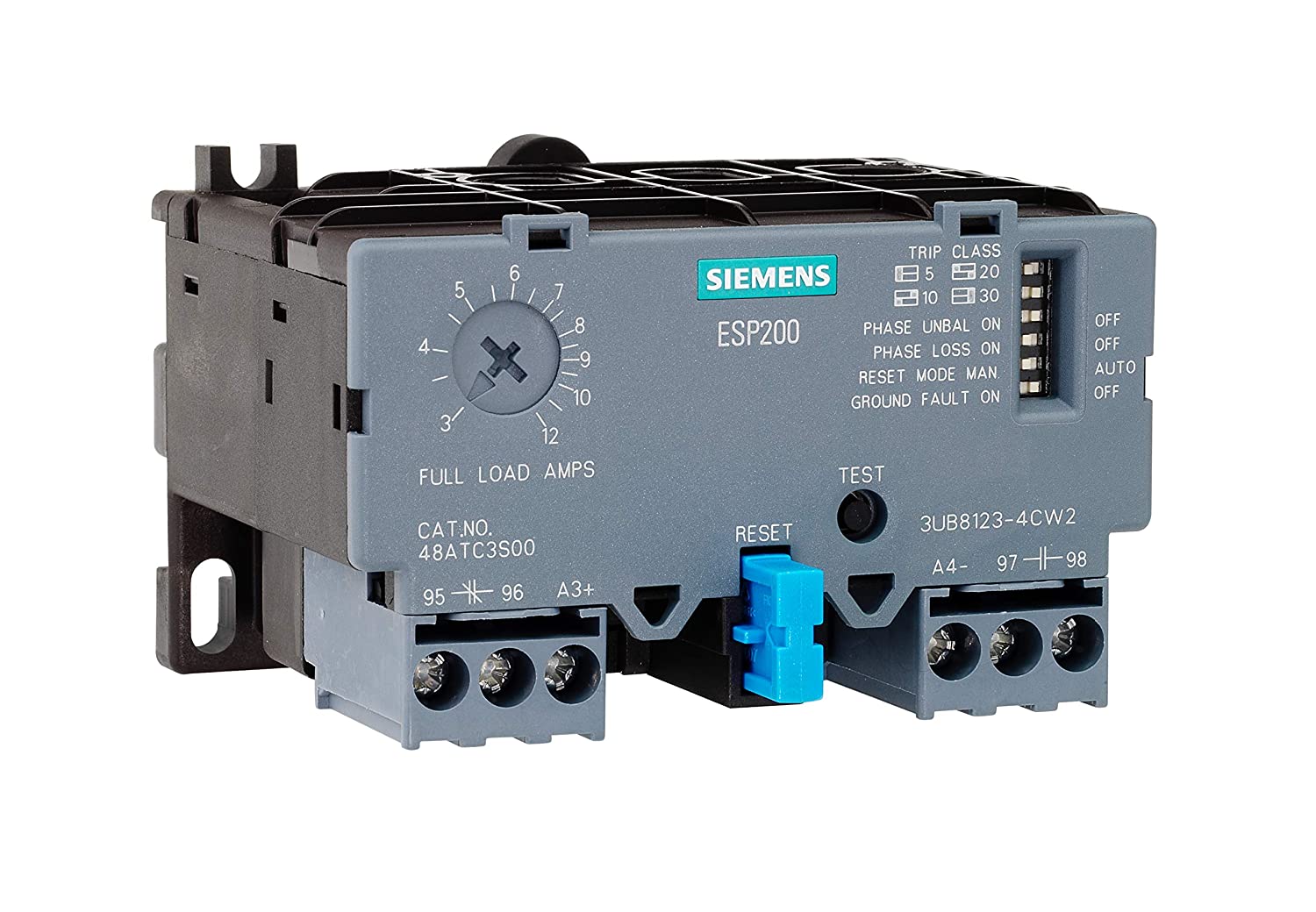

The included ESP200 solid-state overload relay has dip-switches to select the following settings:
- Selectable trip class 5,10,20 or 30
- Phase-loss protection on or off
- Phase-unbalance protection on or off
- Ground fault-protection on or off
- Reset automatic or manual
Complete Datasheet: 14GUG32AD
