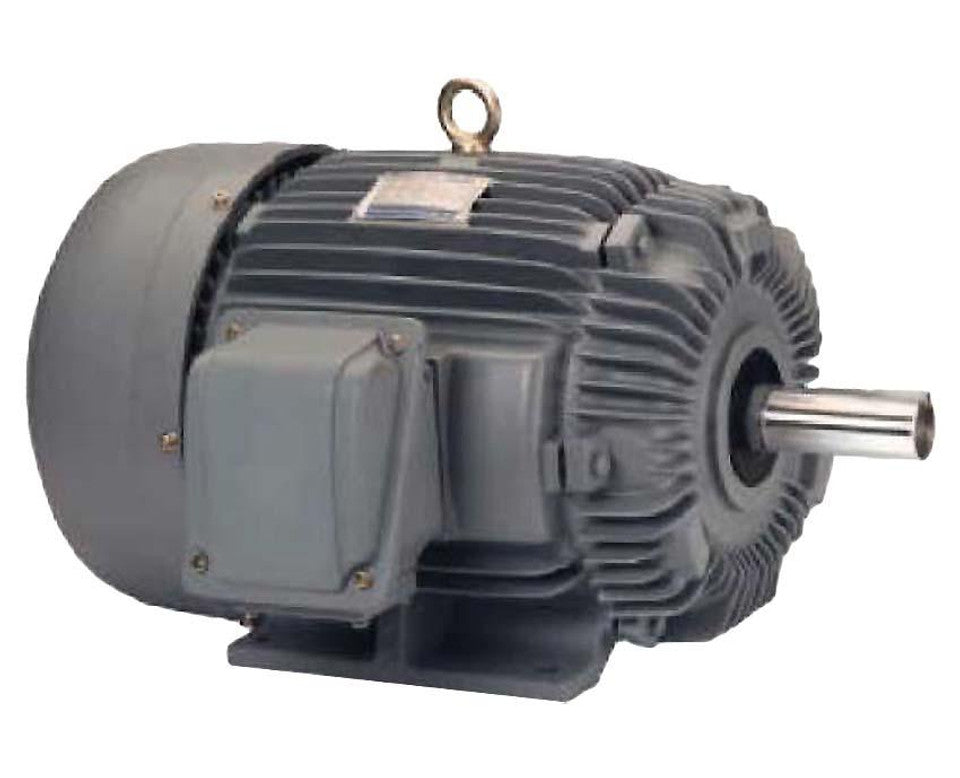

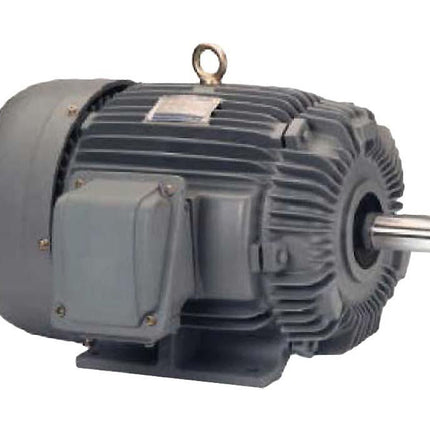

Teco EP0306 30 HP 3-Phase Motor 1175 RPM 326T TEFC 230/460V

The Teco Westinghouse Max-E1 series are robust cast-iron 3-phase motors built for a variety of general purpose applications. Features include an oversized cast-iron terminal box, 12 leads, and cast-iron fan cover.

Applications

• Fans and Blowers
• Compressors
• Pumps
• Crushers
• Mixers
• Conveyors
• Any Severe Duty / Petro-Chem / Pulp & Paper Application

Features

• Enclosure TEFC IP55 Rated
• Service Factor: 1.15

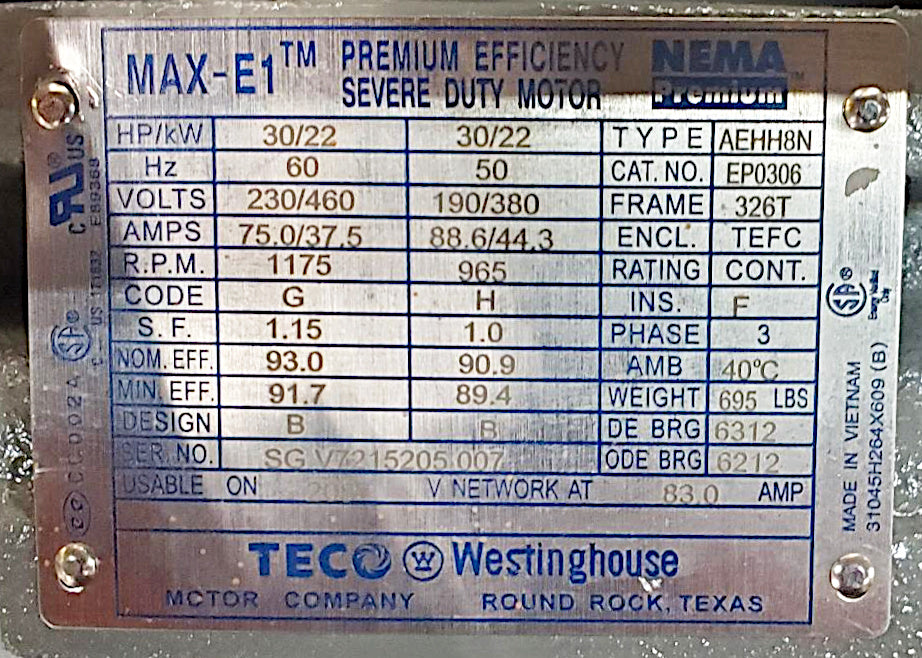

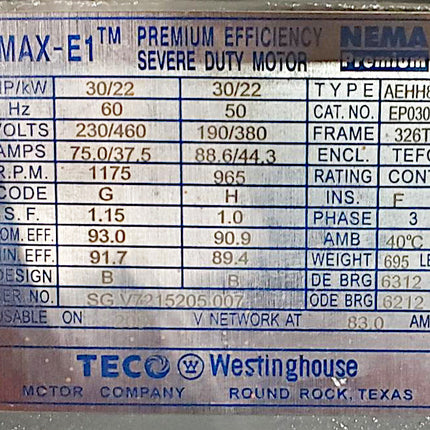

• Stainless Steel Nameplate

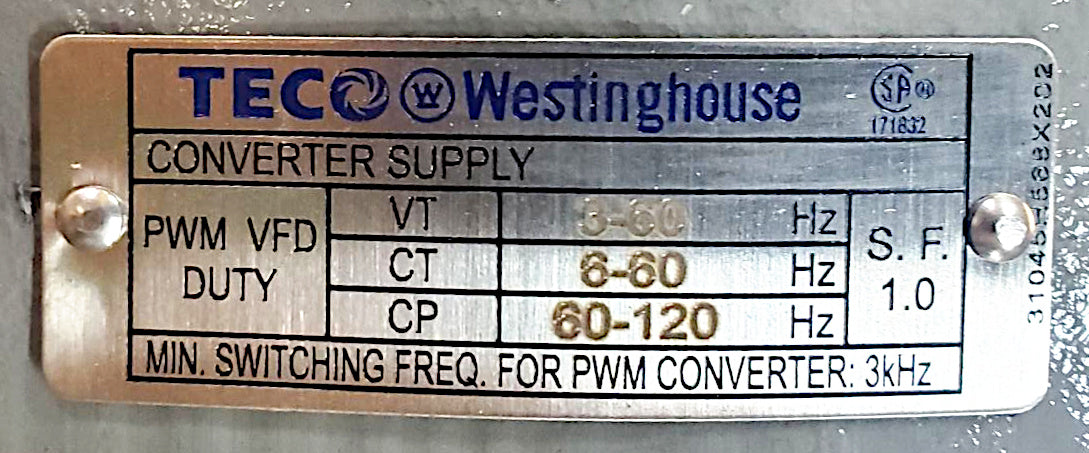

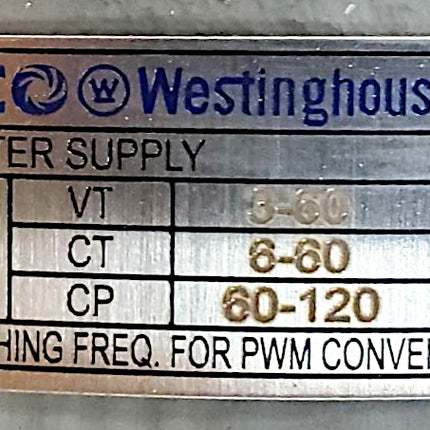

• Inverter Duty Rated 10:1 constant torque

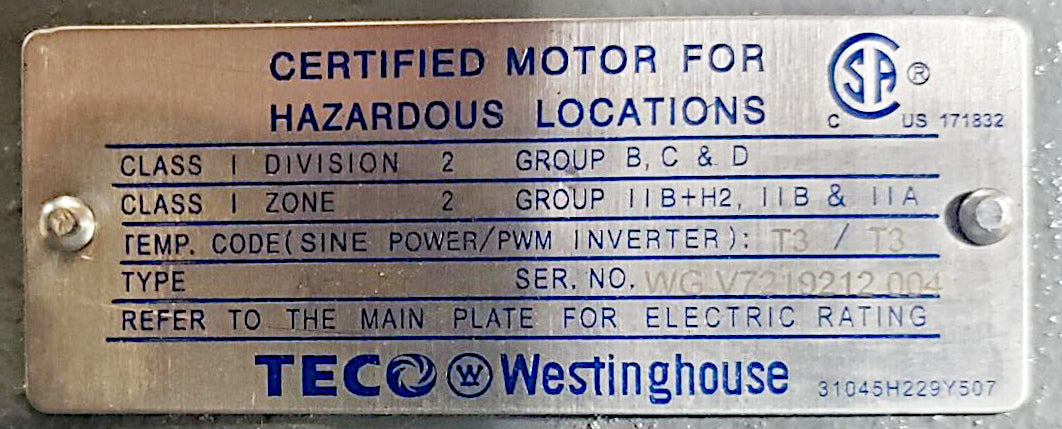

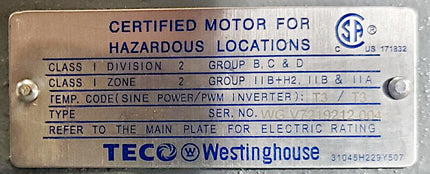

• CSA Certified for Class I, Div 2 Groups B,C,D
• CS Certified for Class II Div 2, Groups F & G

Documentation

• Teco Max-E1 Family Brochure
• Teco Installation and Maintenace Instructions
• Teco EP0306 Connection Diagram
• Teco EP0306 Performance Data
• Teco EP0306 Dimensional Drawing
