Weg VFD Drives



Weg automation and drive products, based in Brazil, are less immune to supply issues than products coming from Asia.   Caldwell Electric maintains a good stock of Weg VFDs, drives and other automation controls including contactors, and soft starters.

High-performance and energy-efficient solutions, WEG frequency inverters use cutting-edge technology for the speed variation of three-phase induction motors. Presenting a modern design and easy installation, they can be used in different industry segments, streamlining operations and contributing to the environment conservation.





73 products

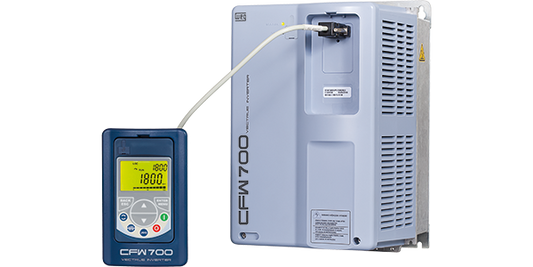

  • Weg CFW700A10P0T4DB20 10 Amp (7.5 HP) 380-480 VAC 3-phase VFD AC Drive

    View options

    Weg Weg CFW700A10P0T4DB20 10 Amp (7.5 HP) 380-480 VAC 3-phase VFD AC Drive

    Normally ships within 24 hours

    The CFW700 series drive is optimized for variable torque applications such as pumps and fans, as well as general-purpose uses. Key features include build-in DC bus chokes for reduced harmonics on the line without the need for external reactors, built-in 24 VDC supply for external transducers, conformal coated circuit boards for harsh environments and prolonged life, built-in USB and RS-485 communications, and built-in Soft-PLC for complex programmable control. Communication options include  CANopen, DeviceNet, Profibus, and Modbus. Available in a IP20 DIN rail mountable enclosure. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs. Catalog No. CFW700A10P0T4DB20 Phase 3-phase Voltage 380-480 VAC Amps 10 HP 7.5 Braking Transistor Yes Enclosure IP20 Frame Size A: 12.1"H x 5.8"W x 9.0"D Weight 13.00   Documentation , CFW700 Users Manual CFW700 Brochure CFW700 Programming Manual CFW700 SoftPLC Manual CFW700 Parameter Quick Reference CFW700 Adenddum

    Read more

    Normally ships within 24 hours

    $857.14

    View options

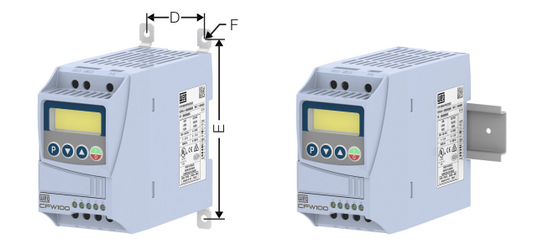

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S120G2 VFD 1.6A 0.33HP 120 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $178.67

    View options

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S220G2 VFD 1.6A 0.33HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $160.05

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S120G2 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    Ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Ships within 24 hours

    $194.97

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S220G2 VFD 2.6A 0.75HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $172.27

    View options

  • Weg CFW100 VFD Frame Size C

    View options

    WEG Weg CFW100C04P2S220G2 VFD 4.2A 1HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $183.33

    View options

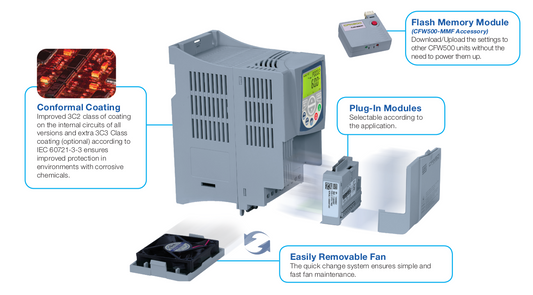

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P0T4NB20G2 VFD 1.0 Amp 0.5 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572819 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $351.53

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6B2NB20 VFD 1.6 Amp 0.33 HP 230 VAC Single/Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575745 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $275.42

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6B2NB20G2 VFD 1.6 Amp 0.33 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15570800 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $275.42

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6S2NB20 VFD 1.6 Amp 0.33 HP 230 VAC Single-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575728 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $272.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6S2NB20G2 VFD 1.6 Amp 0.33 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571885 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $272.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6T4NB20 VFD 1.6 Amp 1 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575807 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $364.82

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6T4NB20G2 VFD 1.6 Amp 1 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572908 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $364.82

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6B2NB20G2 VFD 2.6 Amp 0.75 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571879 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $282.07

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6S2NB20G2 VFD 2.6 Amp 0.75 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571949 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $279.65

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6T4NB20G2 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 15573714 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $392.00

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3B2NB20 VFD 4.3 Amp 1.5 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11575768 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $305.62

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3B2NB20G2 VFD 4.3 Amp 1.5 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571881 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $305.62

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3S2NB20 VFD 4.3 Amp 1.5 HP 230 VAC Single-Phase Input

    Ships within 24 hours

    WEG Product Code: 11474973 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $301.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3S2NB20G2 VFD 4.3 Amp 1.5 HP 230 VAC Single-Phase Input

    Ships within 24 hours

    WEG Product Code: 15571953 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $301.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3T4NB20 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11575839 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $482.60

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3T4NB20G2 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15573819 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $482.60

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A06P1T4NB20G2 VFD 6.1 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15573823 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $593.13

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A07P0S2NB20G2 VFD 7.0 Amp 2 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572573 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $382.33

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A07P0T2NB20G2 VFD 7.0 Amp 2 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572625 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $379.31

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A09P6T2NB20G2 VFD 9.6 Amp 3 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572689 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $466.89

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B02P6T4DB20 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11920737 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $427.63

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B02P6T4DB20G2 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575568 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $427.63

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B04P3T4DB20 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895107 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $538.77

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B04P3T4DB20G2 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575577 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $538.77

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B06P5T4DB20 VFD 6.5 Amp 5 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895183 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $644.47

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B06P5T4DB20G2 VFD 6.5 Amp 5 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575665 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $644.47

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B07P3B2DB20 VFD 7.3 Amp 2 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895031 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $409.51

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B07P3B2DB20G2 VFD 7.3 Amp 2 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15574655 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $409.51

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B10P0B2DB20G2 VFD 10.0 Amp 3 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575067 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $476.56

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B10P0T4DB20 VFD 10.0 Amp 7.5 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895185 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $729.03

    View options

You have seen 36 out of 73 products

Show more products
