Weg produces a wide range of accessories for the VFDs, including communications modules, wireless control, remote keypads, and more. Based in Brazil, Weg is less affected from supply chain issues compared to products coming from Asia.
Weg VFD Drive Accessories
-

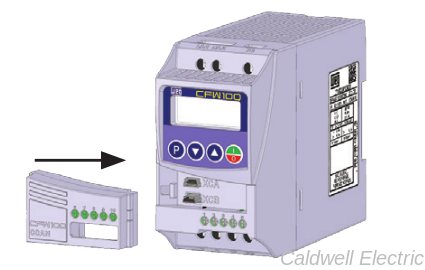

WEG Weg CFW100-CCAN CANopen DeviceNet Module
The Weg CFW100-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector. The following table outlines the connector pinout: CAN Connector Pinout Pin Def. Description 6 V(-) Negative Power Supply 7 CAN_L Comms signal CAN_L 8 Shield Cable Shield 9 CAN_H Comms signal CANL_H 10 V(+) Positive Power Supply Weg EDS files are freely available to download for CANopen and DeviceNet configurations. See links on the Documents section below. Documentation Weg-CCAN Installation Guide Weg-CANopen Manual Weg-CCAN DeviceNet Manual Weg CANopen EDS Configuration File Weg DeviceNet EDS Configuration File
$113.49
-

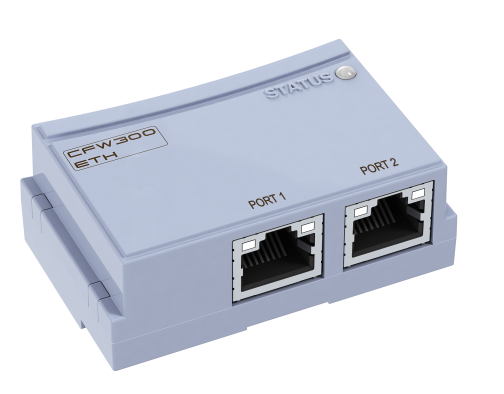

WEG Weg CFW300-CETH Ethernet Module
The Weg CFW300-CETH Ethernet module provides 100BASE-TX Ethernet in half or full-duplex mode and provides a built-in HTTP Web server for configuration and parameterization of the drive. Contains a two-port ethernet switch, and can operate as a ModBus TCP server. A Weg EDS file is freely available to download for network master configuration. Documentation Weg-CETH Ethernet User Manual Operation on Modbus TCP network using PLC300 Operation on Ethernet IP Network Using Rockwell Controllogix PLC Weg CETH EDS Configuration File
$169.12
-

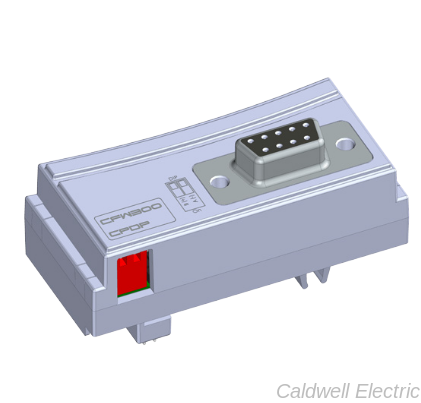

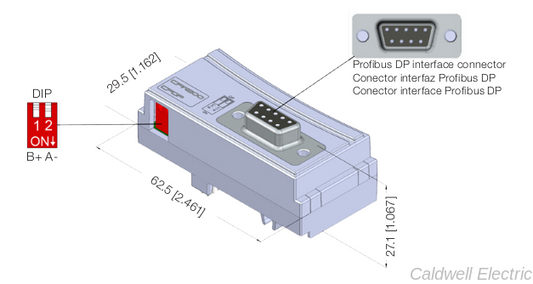

WEG Weg CFW300-CPDP Profibus Module
The Weg CFW300-CPDP module provides Profibus DP communications to the CFW300 VFD. The module has a standard DB-9 style connector. Profibus signal termination is selectable with DIP switches. A Weg EDS configuration is freely available to download. See our link in the Documentation section below. Documentation Weg-CPDP Profibus User Guide Weg-CPDP PRofibus EDS Configuration File
$177.58
-

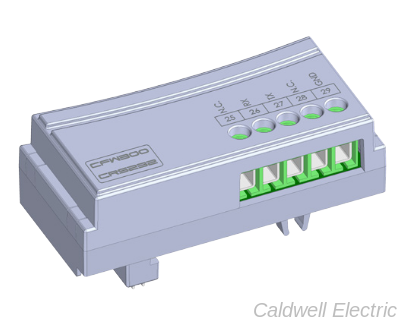

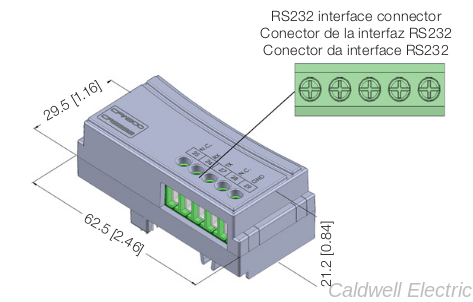

WEG Weg CFW300-CRS232 RS-232 ModBus-RTU Module
The Weg CFW300-CRS232 module provides standard RS-232 3-wire communications to the CFW300 VFD. Documentation Weg-CRS232 Installation Guide
$49.53
-

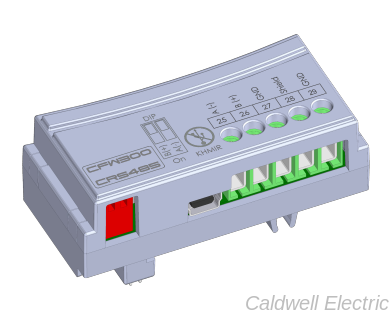

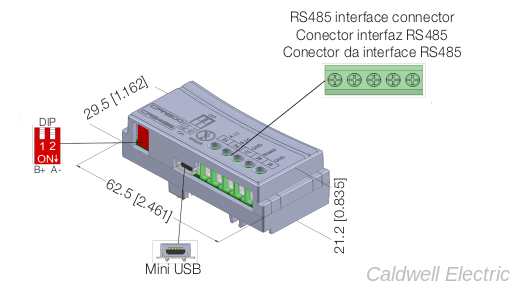

WEG Weg CFW300-CRS485 RS-485 Module
The Weg CFW300-CRS485 module provides standard RS-485 over-the-wire communications to the CFW300 VFD. The VFD can be commanded and monitored by means of the WPS software. RS-485 termination is dip-switch settable on the module. Documentation Weg-CRS485 Installation Guide
$49.53
-

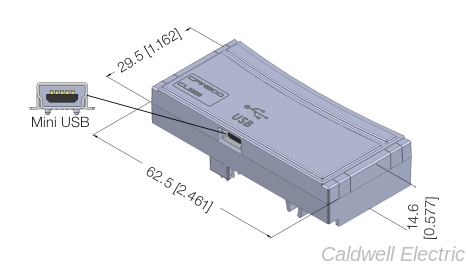

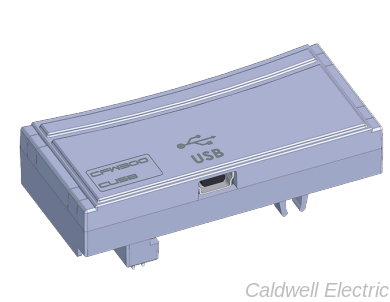

WEG Weg CFW300-CUSB USB Module
The Weg CFW300-CUSB module provides USB V2.0 communications to the CFW300 VFD. Programming, parameter setting, and monitoring can be done using the supplied module and cable, connected to a computer running the free Weg WPS software. The module includes a USB cable with a mini-USB connector on the drive end, and a standard USB Type A connector on the computer end. Documentation Weg-CUSB Installation Guide
$52.55
-

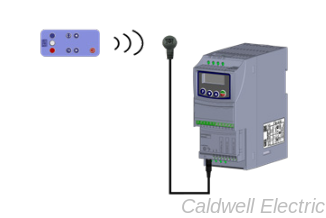

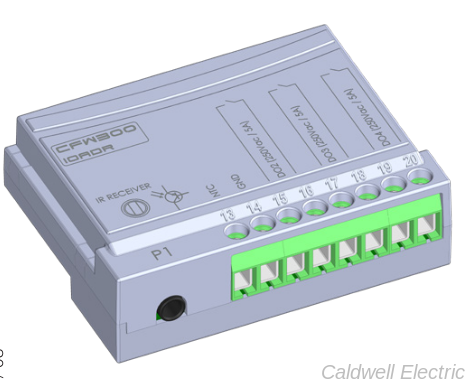

WEG Weg CFW300-IOADR IO Infrared Module
The Weg CFW300-IOADR module provides a wireless infrared remote control for the CFW300 VFD. The kit includes the IOADR module, the infrared remote control, and a 2-meter cable between the module and IR sensor. The Infrared Remote contains a total of 6 function keys. A remote with display is also available as model CFW300-IOADR-D. The function of the keys are listed below: IOADR Remote Control Functions Key Description Power Start/Stop motor Down Browse display up Up Browse display down Cycle Change view between P842 and P843 P Confirm/Program parameter on CFDW300 display Blue Programmable Function 1 White Programmable Function 2 Red Programmable Function 3 The IOADR module also contains 3 NO (Normally Open) Relay contacts good for up to 5 Amps. Documentation Weg-IOADR Installation Guide
$125.03
-

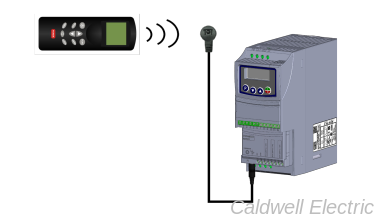

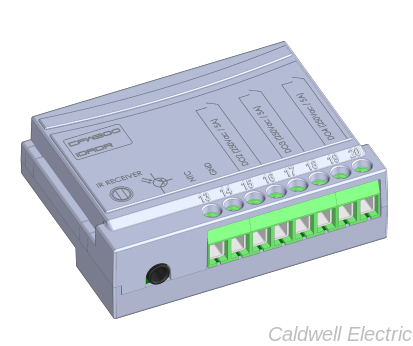

WEG Weg CFW300-IOADR-D IO IR Module
The Weg CFW300-IOADR-D module provides a wireless infrared remote control and display for the CFW300 VFD. The kit includes the IOADR-D module, the infrared remote control with display, and a 2-meter cable between the module and IR sensor. Maximum distancebetween the sensor and the remote is 8 meters. The Infrared Remote and display contains a total of 10 keys. The function of the keys are listed below: IOADR Remote Control with Display Functions Key Description * Send a command to enable/disable the COOL and UVC funtions Func Send command to enable/disable special function. Mode Send command to change operating mode between AUTO and MAN Swing Send command to enable/disable the SWING function Timer Send command to enable timers 01 - 02 -03 Clean Send command to enable/disable the CLEAN function (cycle) Send command to enable/disable the DRY function Up Increments and sends percentage/temperature values Down Decrements and sends percentage/temperature values Power Sends ON/OFF commands. Press and Hold 5 seconds toggles temp. units from °F to °C. The IOADR module also contains 3 NO (Normally Open) Relay contacts good for up to 5 Amps. Documentation Weg-IOADR-D Installation Guide
$147.98
-

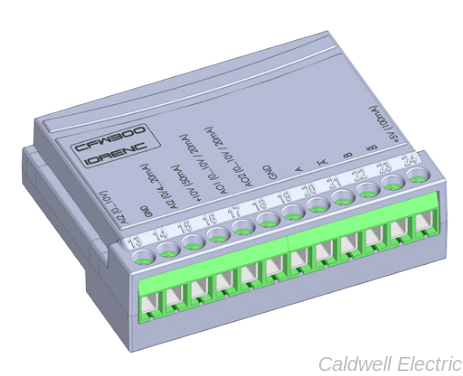

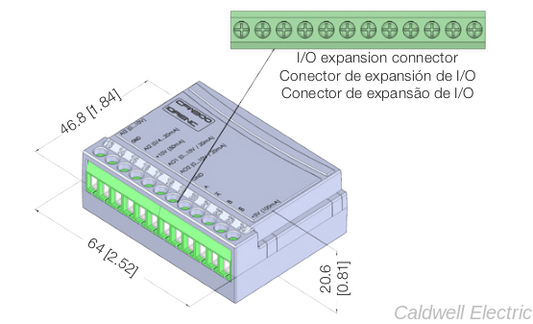

WEG Weg CFW300-IOAENC IO Encoder Module
The Weg CFW300-IOAENC module provides an encoder input with A,B Quadrature signals at max frequency of 400 kHz. The module also provides 1 Analog voltage input, 1 analog current input, 2 analog outputs, +10VDC reference, and +5VDC for powering an encoder. Documentation Weg-IOENC Installation Guide
$86.37
-

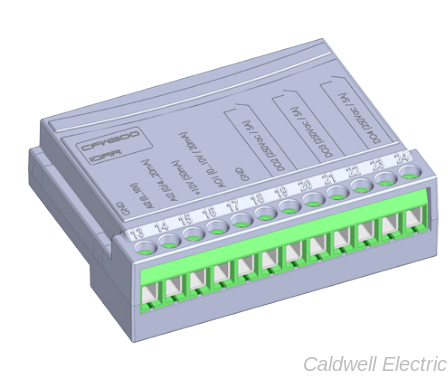

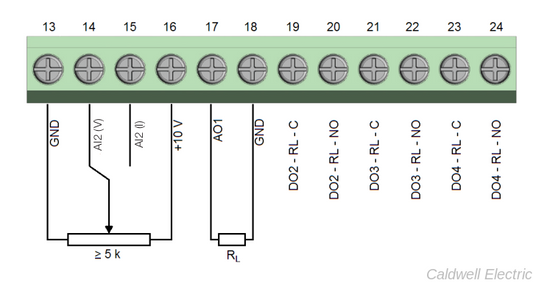

WEG Weg CFW300-IOAR IO Expansion Module
The Weg CFW300-IOAR module is an I/O Expansion module consisting of 1 Analog Input, 1 Analog Output, 3 Digital Relay outputs rated up to 5 Amps each, and +10VDC power. The module IO expansion is in addition to the built-in CFW300 I/O which includes 4 Digital Inputs, 1 Analog In, 1 Analog Out, and 1 Relay out. Documentation Weg-IOAR Installation Guide
$85.16
-

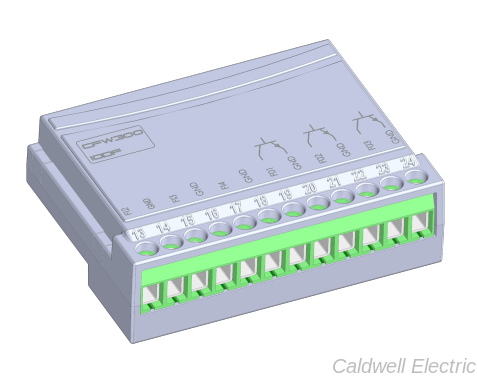

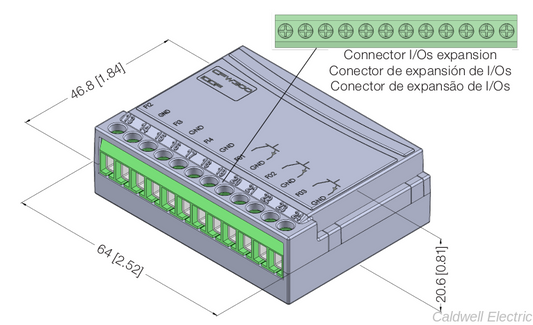

WEG Weg CFW300-IODF IO Digital Frequency Module
The Weg CFW300-IODF provides digital frequency inputs and outputs for the CFW300 series VFDs. The module consists of 3 NPN transistor inputs, and 3 optocoupled open-collector transistor outputs. The frequency range is from 10 to 3000 Hz. The frequency inputs and output values are only accessible by means of a SoftPLC application running on the CFW300 VFD. Documentation Weg-IODF Installation Guide
$69.46
-

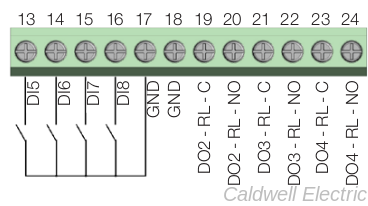

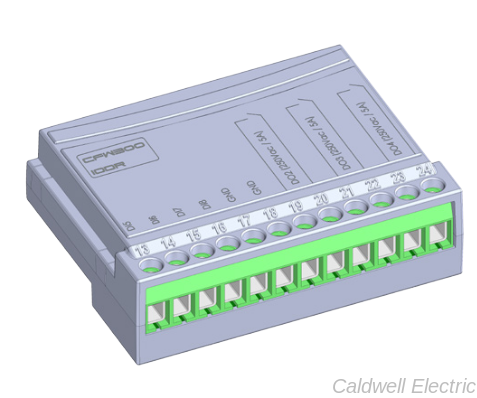

WEG Weg CFW300-IODR IO Expansion Module
The Weg CFW300-IODR module is a Digital I/O Expansion module consisting of 4 Digital Inputs and 3 output relay contacts rated up to 5 Amps each. is a remote keypad kit for the CFW300 series VFD. The module IO expansion is in addition to the built-in CFW300 I/O which includes 4 Digital Inputs, 1 Analog In, 1 Analog Out, and 1 Relay out. Documentation Weg-IODR Installation Guide
$65.23
-

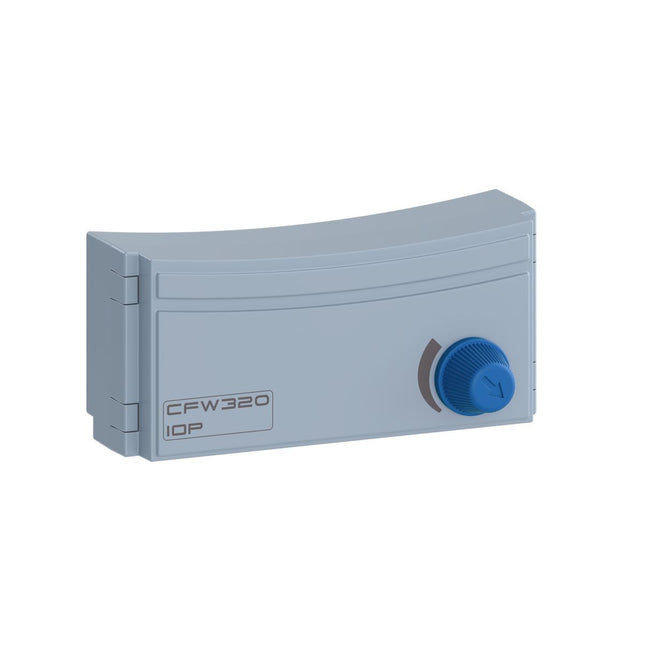

WEG Weg CFW320-IOP Potentiometer Module
The Weg CFW320-IOP module is a front-panel potentiometer for controlling the speed or other input to a WEG CFW320 series VFD. Documentation Weg-IOP Installation Guide
$54.36
-
WEG Weg CFW300-KFA-S1-S2 RFI Single-Phase Frame Size A Kit
The Weg CFW300-KFA provides RFI filtering for the single-phase versions of the CFW300 in frame size A. Reduces electromagnetic interference. Documentation Weg-KFA Installation Guide
$54.36
-
WEG Weg CFW300-KFB-S2 RFI Single-Phase Frame Size B Kit
The Weg CFW300-KFB provides RFI filtering for the single-phase versions of the CFW300 in frame size B. Reduces electromagnetic interference. Documentation Weg-KFB Installation Guide
$63.42
-

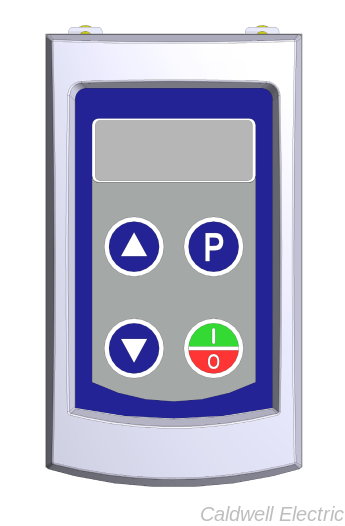

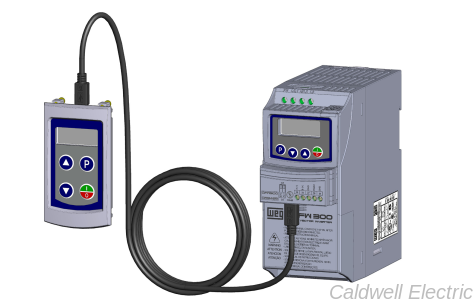

WEG Weg CFW300-KHMIR Remote Keypad Kit
The Weg CFW300-KHMIR is a remote keypad kit for the CFW300 series VFD. The kit contains the CFW300-CRS485 module, remote HMI keypad/display, and a 3-meter USB cable. Documentation Weg-KHMIR Installation Guide
$154.62
-

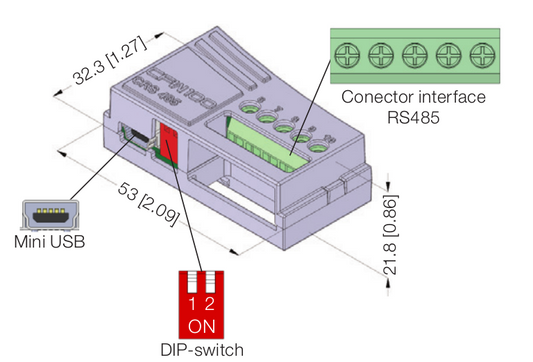

WEG Weg CFW100-CRS485 I/O RS-485 Module
The Weg CRS485 module provides standard RS-485 over-the-wire communications with VFD. The VFD can be commanded and monitored by means of the WPS software. RS-485 termination is dip-switch settable on the module. Modbus-RTU protocol is supported. Documentation Weg-CRS485 Installation Guide Weg Modbus RTU Manual
$47.72
-

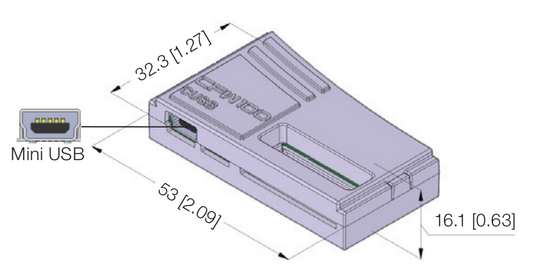

WEG Weg CFW100-CUSB I/O USB Module
The Weg CUSB module provides USB V2.0 communications with the VFD. Programming, parameter setting, and monitoring can be done using the supplied module and cable, connected to a computer running the free Weg WPS software. The module includes a USB cable with a mini-USB connector on the drive end, and a standard USB Type A connector on the computer end. Documentation Weg-CUSB Installation Guide
$50.63
-

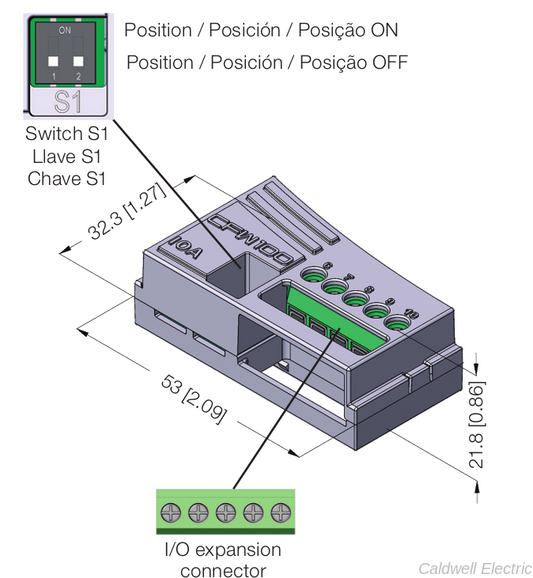

WEG Weg CFW100-IOA I/O Expansion Module
The Weg IOA module provides 1 analog input, 1 analog output, and a +10VDC reference for a potentiometer. The analog input and output are DIP switch configurable as either 0-10V voltage-mode or 4-20mA current-mode. Documentation Weg-IOA Installation Guide
$57.62
-

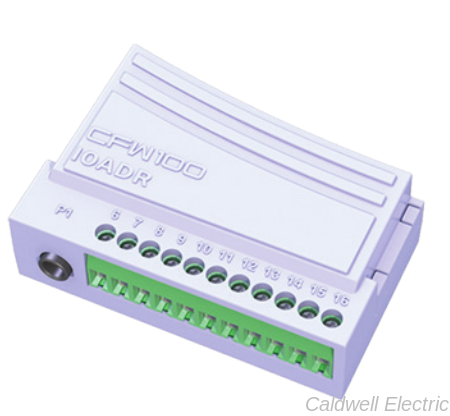

WEG Weg CFW100-IOADR I/O IR Expansion Module
The Weg IOADR module provides a wireless infrared remote control for the VFD. The kit includes the IOADR module, the infrared remote control, and a 2-meter cable between the module and IR sensor. The IOADR module provides 1 analog input (voltage or current), a +10VDC reference, and 3 relay outputs rated at 0.5 Amp. Documentation Weg-IOADR Installation Guide
$120.47
-

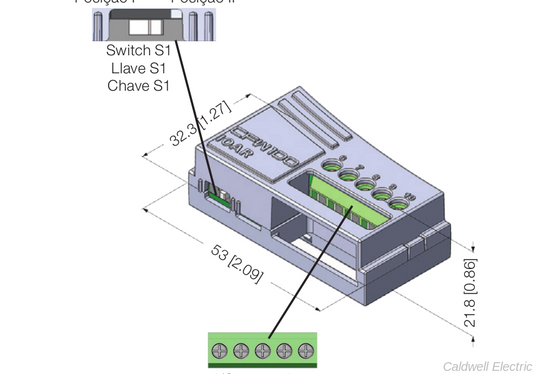

WEG Weg CFW100-IOAR I/O Expansion Module
The Weg IOAR module provides 1 analog input, 1 relay output, and a +10VDC reference for a potentiometer. The analog input is DIP switch settable between 0-10VDC voltage mode, or 4-20mA current mode. Documentation Weg-IOAR Installation Guide
$47.14
-

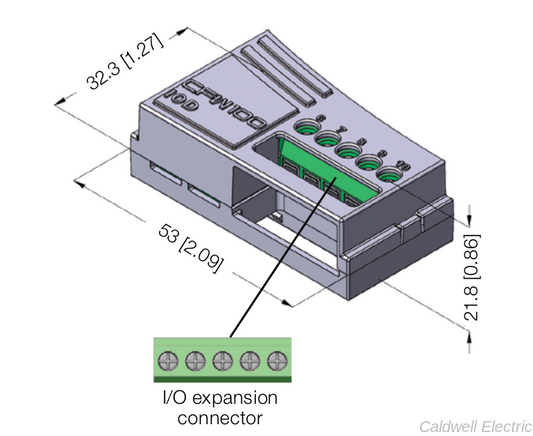

WEG Weg CFW100-IOD I/O Digital Input Module
The Weg IOD module provides 4 digital isolated inputs. The module consists of 4 transistor inputs configurable as NPN or PNP type, with max. input voltage of 30VDC. Documentation Weg-IOD Installation Guide
$47.72
-

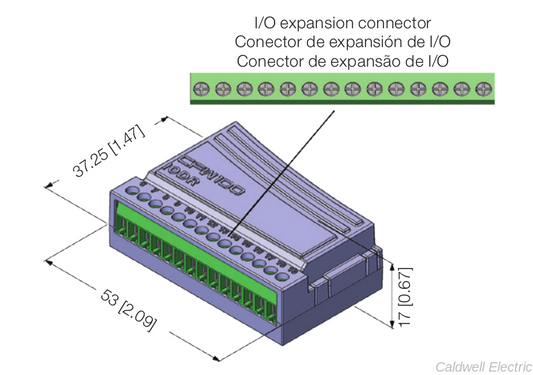

WEG Weg CFW100-IODR I/O Encoder Module
The Weg IODR module provides 3 isolated digital inputs, 3 relay outputs, and an encoder input and a +5VDC supply. Documentation Weg-IODR Installation Guide
$128.04
-

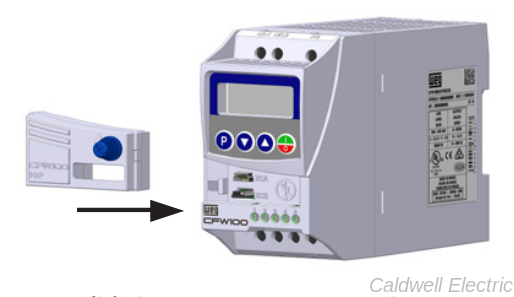

WEG Weg CFW100-IOP Potentiometer Module
The Weg IOp module provides a potentiomenter for setting frequency,speed or other parameters. Documentation Weg-IOP Installation Guide
$52.38
