Weg produces a wide range of accessories for the VFDs, including communications modules, wireless control, remote keypads, and more. Based in Brazil, Weg is less affected from supply chain issues compared to products coming from Asia.
Weg VFD Drive Accessories
-

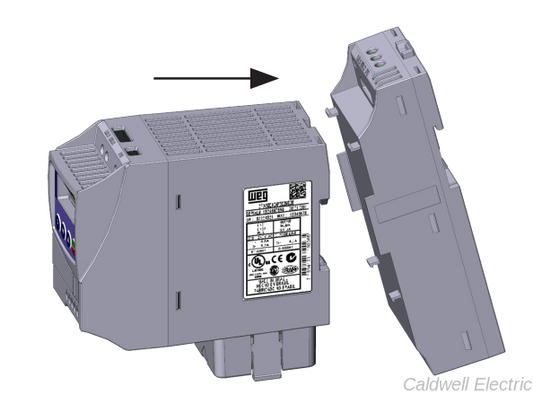

WEG Weg CFW100-KFABC-S1 RFI Single-Phase 110VAC Kit
The Weg KFABC-S1 provides RFI filtering for single-phase 110VAC power, reducing electromagnetic interference. Documentation Weg-KFABC Installation Guide
$73.33
-
WEG Weg CFW100-KFABC-S2 RFI Single-Phase 220VAC Kit
The Weg KFABC-S2 provides RFI filtering for single-phase 220VAC power, reducing electromagnetic interference. Documentation Weg-KFABC Installation Guide
$52.38
-

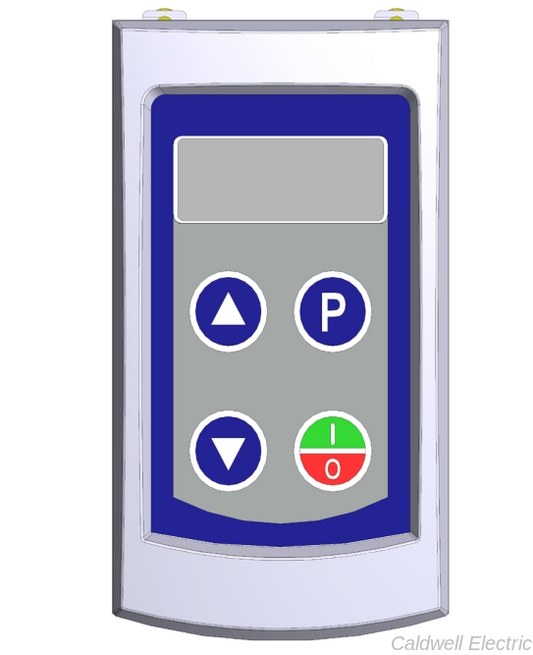

WEG Weg CFW100-KHMIR Remote Keypad Kit
The Weg KHMIR is a remote keypad kit. The kit contains the CRS485 module, remote HMI keypad/display, and a 3-meter USB cable. Documentation Weg-KHMIR Installation Guide
$148.99
-
WEG Weg CFW500-CCAN CANopen DeviceNet Module
The Weg CFW500-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector. The following table outlines the connector pinout: CAN Connector Pinout Pin Def. Description 6 V(-) Negative Power Supply 7 CAN_L Comms signal CAN_L 8 Shield Cable Shield 9 CAN_H Comms signal CANL_H 10 V(+) Positive Power Supply Weg EDS files are freely available to download for CANopen and DeviceNet configurations. See links on the Documents section below. Documentation Weg-CCAN Installation Guide CFW500 DeviceNet Manual CFW500 CANOpen V38x EDS Configration File CFW500 DeviceNet V38x EDS Configration File
$83.35
-
WEG Weg CFW500-CCHMIR010M 10 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$43.49
-
WEG Weg CFW500-CCHMIR01M 1 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$13.89
-
WEG Weg CFW500-CCHMIR02M 2 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$18.72
-
WEG Weg CFW500-CCHMIR03M 3 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$24.76
-
WEG Weg CFW500-CCHMIR05M 5 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$30.80
-
WEG Weg CFW500-CCHMIR075M 7.5 Meter Remote Display Cable
The WEG CCHMIR cable connects a remote HMI-01 advanced text display to CFW500 G2 VFDs over an RS-485 link. It can work with any I/O module that includes RS-485 including the standard IOS I/O module. The HMI-01 advanced display keypad only works with gen 2 (G2) CFW500 models. Documentation HMI Remote Display Installation Guide
$36.84
-
WEG Weg CFW500-CEMB-TCP Modbus TCP Module
The Weg CEMB-TCP module supports ModBus TCP protocols over an Ethernet RJ-45 connector. Documentation CFW500 Ethernet Module Manual
$301.40
-
WEG Weg CFW500-CEPN-IO PROFINET IO Module
The Weg CEPN-IO module supports PROFINET protocols over an Ethernet RJ-45 connector. Documentation CFW500 Ethernet Module Manual CFW500 Profinet IO XML Configuration File
$301.40
-
WEG Weg CFW500-CETH-IP Ethernet Module
The Weg CETH-IP module supports Ethernet IP protocols over an RJ-45 connector. Documentation CFW500 Ethernet Module Manual CFW500 Ethernet IP EDS Configuration File
$301.40
-
WEG Weg CFW500-CPDP Profibus Module with DB9 Connector
The Weg CPDP module supports Profibus protocols using a DB9 style connector CFW500-CPDP I/O FUNCTION QTY Digital Inputs (isoloated) 2 Analog Inputs 1 Relay Outputs (SPDT) 1 Digital Transistor Outputs 1 RS485 Ports 1 DB9 ProfiBus Port 1 +24VDC 1 Documentation CFW500 Profibus DP Manual CFW500-CPDP Profibus Module Install Guide Profibus DP Module GSDML V2.3 XML File Profibus DP EDD and GSD files
$244.62
-
WEG Weg CFW500-CPDP2 Profibus Module
The Weg CPDP2 module provides Profibus protocols using bare wire screw terminal connections. CFW500-CPDP2 I/O FUNCTION QTY Digital Inputs (isoloated) 2 Analog Inputs 1 Relay Outputs (SPDT) 1 Digital Transistor Outputs 1 RS485 Ports 1 Profibus Terminals 1 +24VDC 1 Documentation CFW500 Profibus DP Manual CFW500-CPDP Profibus Module Install Guide Profibus DP Module GSDML V2.3 XML File Profibus DP EDD and GSD files
$268.78
-
WEG Weg CFW500-CRS232 RS-232 Module
The Weg CRS232 module provides RS-232 communications over a DB9 connector. This plug-in is used in to CFW500 Universal Asynchronous Receiver Transmitter (UART) interface in RS232 physical layer. The CFW500-CRS232 allows the PC serial communications for inverter commands, reference and variables monitoring, as well as SoftPLC debugging and programming. Modbus RTU protocol is supported. CFW500-CRS232 I/O FUNCTION QTY Digital Inputs (isoloated) 2 Analog Inputs 1 Relay Outputs (SPDT) 1 Digital Transistor Outputs 1 RS485 Ports 1 DB9 Serial Port 1 +24VDC 1 Documentation Weg-CRS232 Module Install Guide CFW500 ModBus RTU Manual
$83.35
-
WEG Weg CFW500-CRS485-B RS-485 Module
The Weg CRS485-B module provides 2 RS485 ports, in addition to other I/O, as detailed in the table below. The RS485 interfaces support remote control and monitoring via the WLP and WRS software, as well as ModBus RTU, and BACnet protocols. CFW500 CRS485-B I/O FUNCTION QTY Digital Inputs (isoloated) 4 Analog Inputs 2 Relay Outputs (SPDT) 2 Digital Transistor Outputs 1 RS485 Ports 2 +10VDC Ref 1 +24VDC 1 Documentation Weg-CRS485-B Installation Guide CFW500 ModBus RTU Manual CFW500 BACNet Manual
$86.37
-
WEG Weg CFW500-CUSB USB Module
The Weg CUSB module provides USB V2.0 communications with the VFD. Programming, parameter setting, and monitoring can be done using the supplied module and cable, connected to a computer running the free Weg WPS software. The module includes a USB cable with a mini-USB connector on the drive end, and a standard USB Type A connector on the computer end. It also supports Modbus RTu protocols. CFW500 CUSB I/O FUNCTION QTY Digital Inputs (isoloated) 4 Analog Inputs 1 Analog Outputs 1 Relay Outputs (SPDT) 1 Digital Transistor Outputs 1 RS485 Ports 1 Mini-USB Ports 1 +10VDC Ref 1 +24VDC 1 Documentation CFW500-CUSB Installation Guide CFW500 ModBus RTU Manual
$126.84
-
WEG Weg CFW500-ENC Encoder Module
The Weg ENC encoder module provides 2 differential channels for encoder inputs up to 400 kHz. It also features configurable +5V or +12V output supply to support quadrature encoder operation. CFW500 ENC I/O FUNCTION QTY Digital Inputs (isoloated) 5 Analog Inputs 1 Analog Outputs 1 Relay Outputs (NO) 3 Digital Transistor Outputs 1 RS485 Ports 1 Quadrature A/*A Inputs 2 VE +5VDC/+12VDC 1 +24VDC 1 Documentation CFW500-ENC Installation Guide
$126.84
-
WEG Weg CFW500-HMIR Remote Display Unit
The Weg HMIR is a remote standard display and keypad for the CFW500 VFDs. It interfaces to any of the standard CFW500 I/O with RS-485. The CFW500-CCHMIRxxxM cable is needed for remote mounting. For advanced display with text and keypad, see the HMI-01 unit. See our CFW500 Remote Displays and Options page for all remote mounting options and comparisons. Documentation CFW500-HMIR Installation Guide
$102.08
-
WEG Weg CFW500-IOAD IO Expansion Module
The Weg IOAD I/O expansion module provides analog and digital inputs and outputs as detailed in the table below: CFW500 IOAD I/O FUNCTION QTY Digital Inputs (isoloated) 6 Analog Inputs 3 Analog Outputs 2 Relay Outputs (NO/NC) 1 Digital Transistor Outputs 3 RS485 Ports 1 +10VDC Ref 1 +24VDC 1 Documentation CFW500-IOAD Installation Guide
$109.93
-
WEG Weg CFW500-IOD IO Expansion Module
The Weg IOD I/O expansion module provides digital inputs and outputs as detailed in the table below: CFW500 IOD I/O FUNCTION QTY Digital Inputs (isoloated) 8 Analog Inputs 1 Analog Outputs 1 Relay Outputs (COM,NO,NC) 1 Digital Transistor Outputs 4 RS485 Ports 1 +10VDC Ref 1 +24VDC 1 Documentation CFW-IOD Installation Guide
$85.16
-
WEG Weg CFW500-IOR-B IO Relay Module
The Weg IOR-B is a digital relay output module for CFW500 VFDs. I/O capabilities are detailed in the table below: CFW500 IOR-B I/O FUNCTION QTY Digital Inputs (isoloated) 5 Analog Inputs 1 Analog Outputs 1 Relay Outputs (COM,NO,NC) 1 Relay Outputs (COM,NO) 3 Digital Transistor Outputs 1 RS485 Ports 1 +10VDC Ref 1 +24VDC 1 Documentation CFW500-IOR Module Installation Guide Weg-IOR-B-PNP Installation Guide
$75.50
-
WEG Weg CFW500-IOS Standard IO Module
The Weg IOS is the standard I/O module shipped with the CFW500 VFDs. I/O capabilities are detailed in the table below: CFW500 IOS I/O FUNCTION QTY Digital Inputs (isoloated) 4 Analog Inputs 1 Analog Outputs 1 Relay Outputs (COM,NO,NC) 1 Digital Transistor Outputs 1 RS485 Ports 1 +10VDC Ref 1 +24VDC 1 Documentation CFW500-IOS Installation Guide CFW500 ModBus RTU Manual CFW500 BACNet Manual
$66.44
