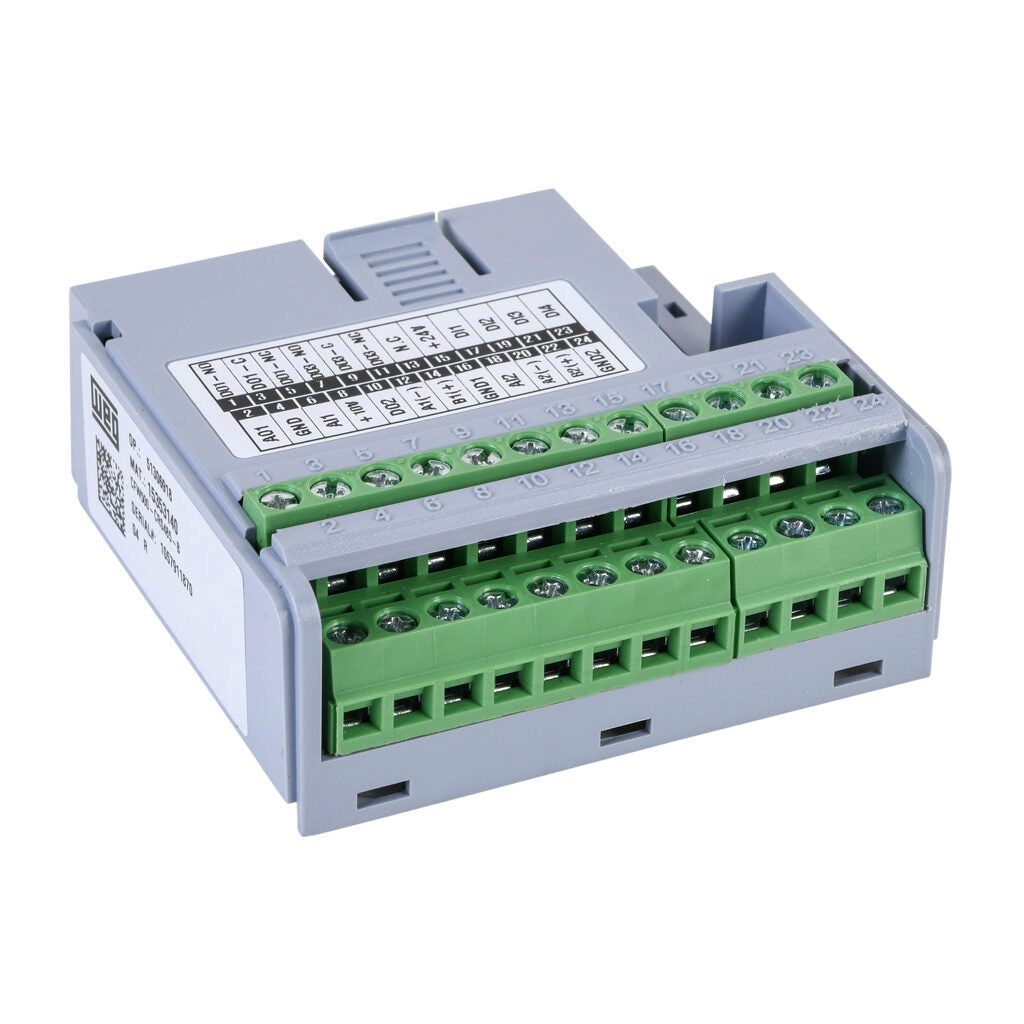

Weg CFW500-CRS485-B RS-485 Module

VendorWEG
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Weg CRS485-B module provides 2 RS485 ports, in addition to other I/O, as detailed in the table below. The RS485 interfaces support remote control and monitoring via the WLP and WRS software, as well as ModBus RTU, and BACnet protocols.

CFW500 CRS485-B I/O
FUNCTION	QTY
Digital Inputs (isoloated)	4
Analog Inputs	2
Relay Outputs (SPDT)	2
Digital Transistor Outputs	1
RS485 Ports	2
+10VDC Ref	1
+24VDC	1

Documentation

Product form

The Weg CRS485-B module provides 2 RS485 ports, in addition to other I/O, as detailed in the table below. The... Read more

SKU: Weg-CFW500-CRS485-B
Barcode: 7909522752271

Ships within 24 hours

$86.37

Description

The Weg CRS485-B module provides 2 RS485 ports, in addition to other I/O, as detailed in the table below. The RS485 interfaces support remote control and monitoring via the WLP and WRS software, as well as ModBus RTU, and BACnet protocols.

CFW500 CRS485-B I/O
FUNCTION	QTY
Digital Inputs (isoloated)	4
Analog Inputs	2
Relay Outputs (SPDT)	2
Digital Transistor Outputs	1
RS485 Ports	2
+10VDC Ref	1
+24VDC	1
