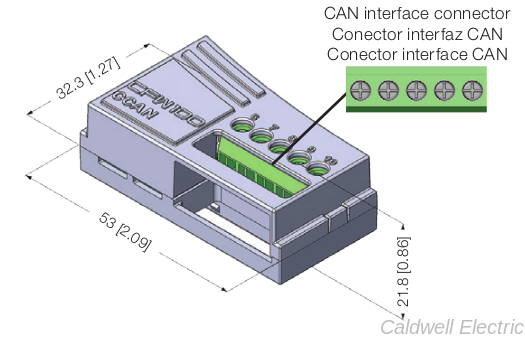

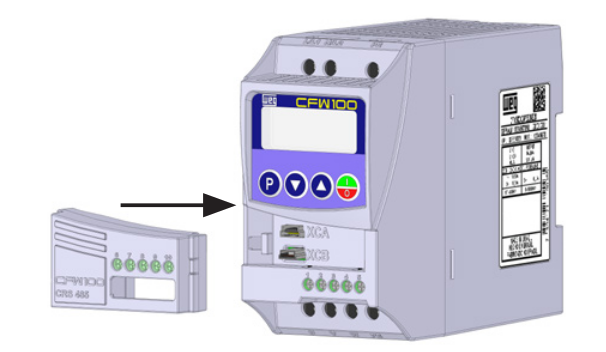

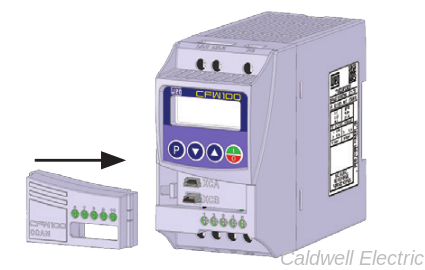

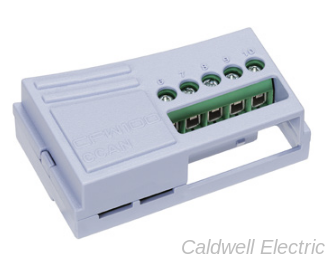

The Weg CFW100-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector.
The following table outlines the connector pinout:
CAN Connector Pinout
Pin
Def.
Description
6
V(-)
Negative Power Supply
7
CAN_L
Comms signal CAN_L
8
Shield
Cable Shield
9
CAN_H
Comms signal CANL_H
10
V(+)
Positive Power Supply
Weg EDS files are freely available to download for CANopen and DeviceNet configurations. See links on the Documents section below.
