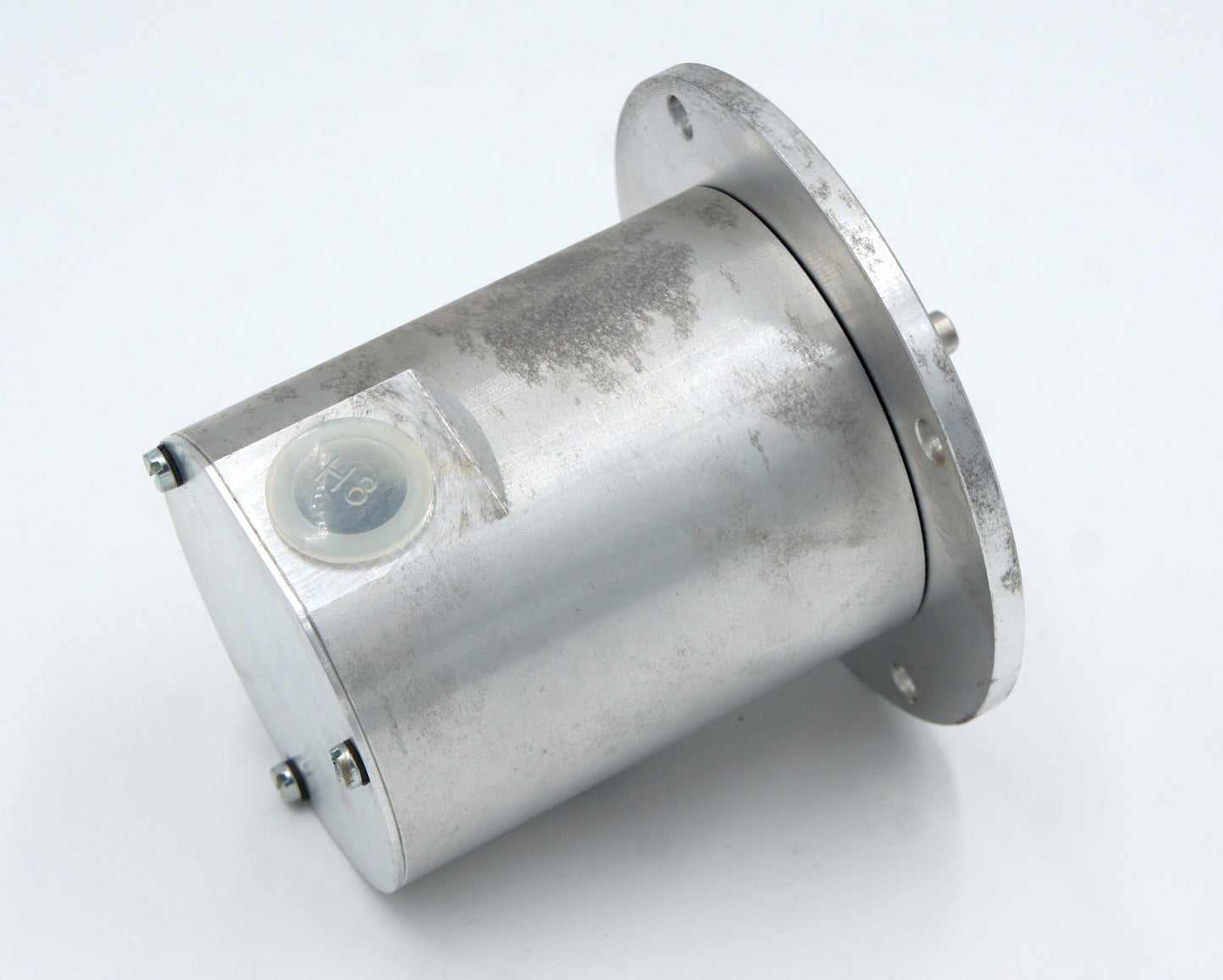

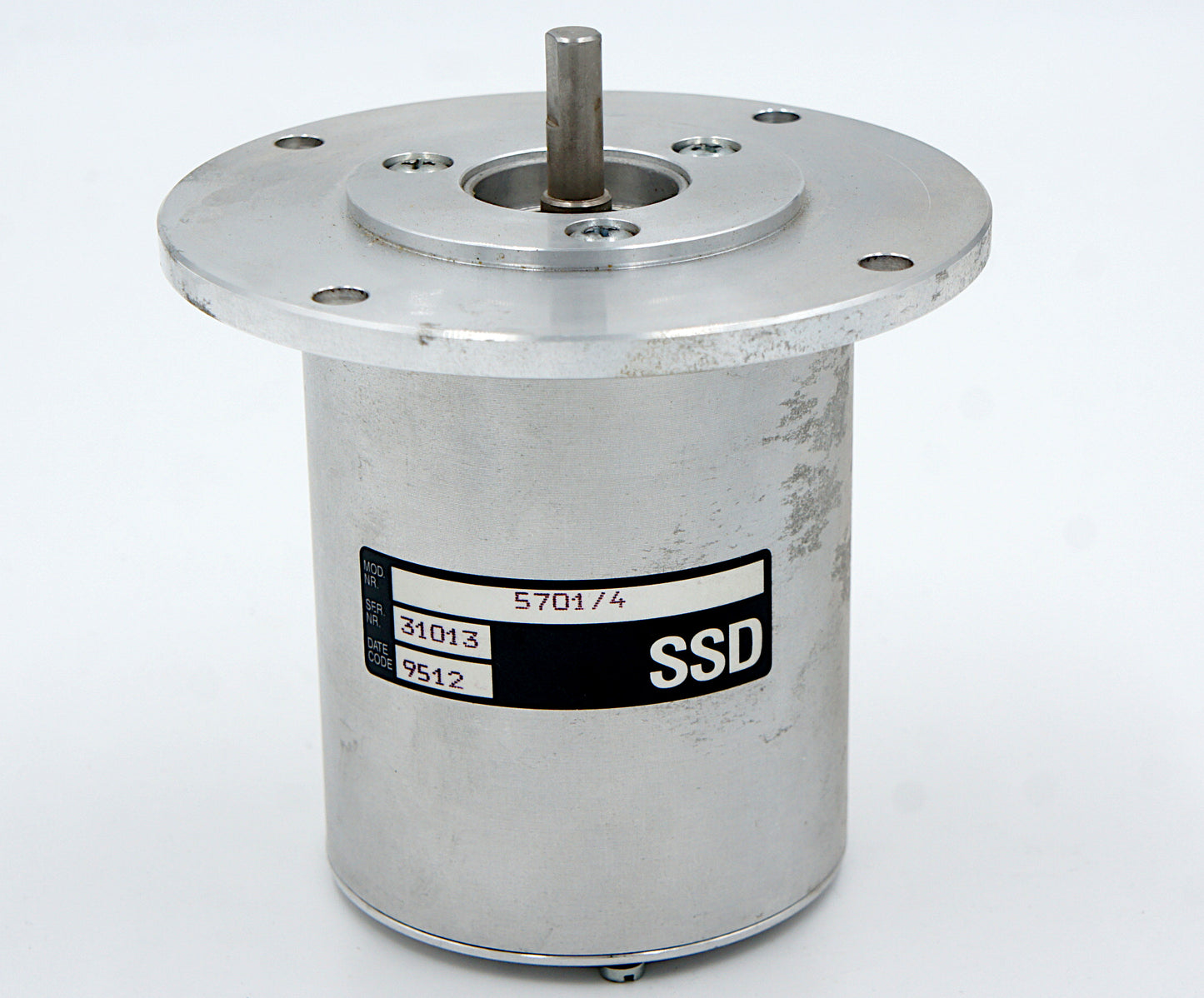

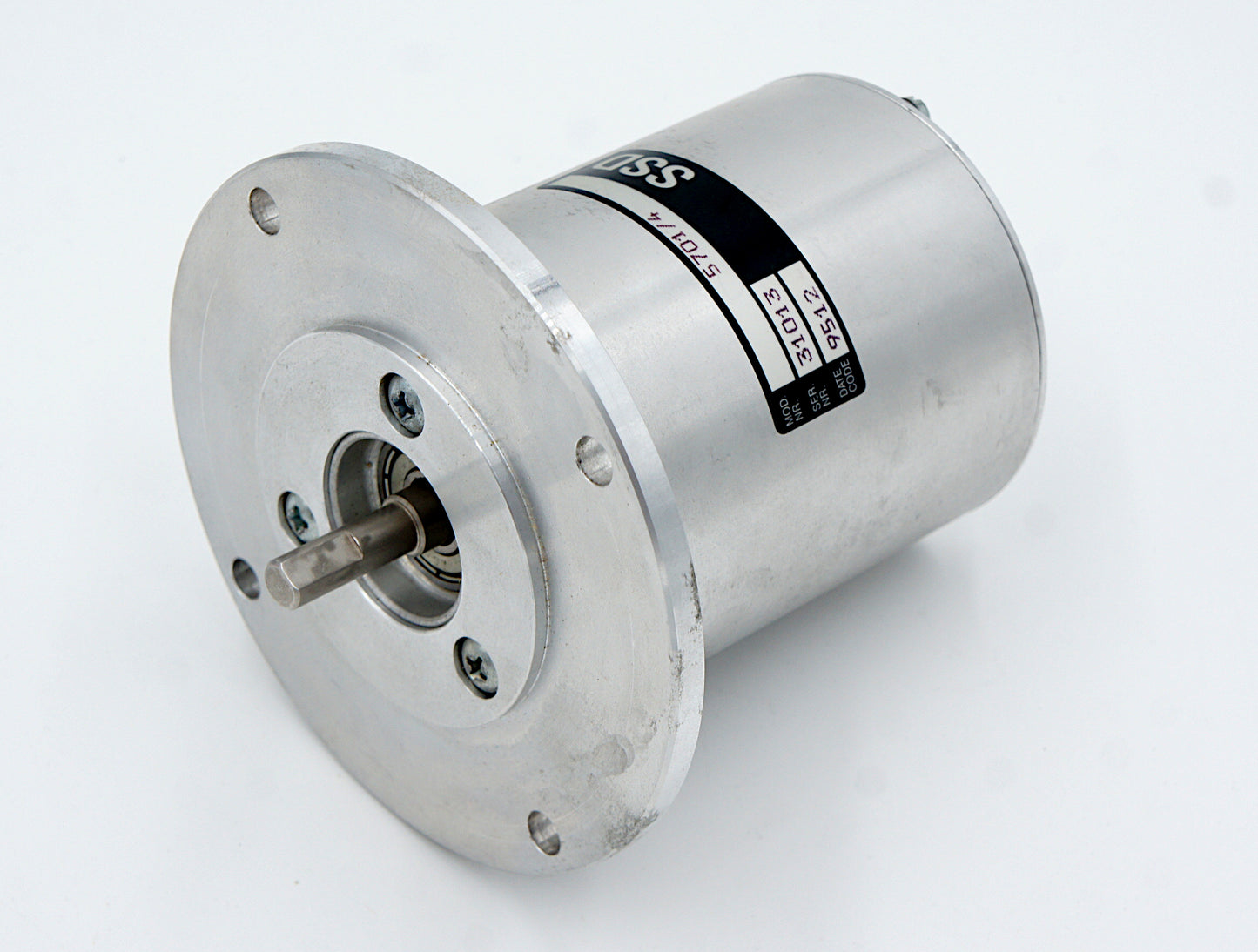

Parker SSD 5701 /4 Optical Encoder w/ Fiber Optic Output

  • $725.00


New from older stock.

Specs

  • Brand: Parker
  • P/N: 5701/4
  • Power: 12-40 VDC, 60 mA
  • Resolution: 1000 pulses per revolution
  • Outputs: A/B Quadrature, Marker Pulse encoded onto fiber optic at 500 kHz
  • Max Speed: 3000 RPM
  • Fiber Cable: 1 mm OD plastic fibre
  • Shaft Diameter: 11 mm
  • Flange: 6 holes equally spaced on 100mm diameter

Money back guarantee for 60 days.
