Weg produces a wide range of accessories for the VFDs, including communications modules, wireless control, remote keypads, and more. Based in Brazil, Weg is less affected from supply chain issues compared to products coming from Asia.
Weg VFD Drive Accessories
-
WEG Weg CFW500-KN1A Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg KN1A-E Installation Guide
$16.91
-
WEG Weg CFW500-KN1B Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg KN1A-E Installation Guide
$19.93
-
WEG Weg CFW500-KN1C Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg KN1A-E Installation Guide
$26.58
-
WEG Weg CFW500-KN1D Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg KN1A-E Installation Guide
$35.64
-
WEG Weg CFW500-KN1E Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg KN1A-E Installation Guide
$38.66
-
WEG Weg CFW500-KN1F Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg-KN1F-G Installation Guide
$99.66
-
WEG Weg CFW500-KN1G Protection Kit
The WEG KN1x NEMA 1/ IP20 protection kit provides a drip cover for the top of the VFD, as well as a conduit connection kit for the bottom incoming power connections, for frame sizes A through G. Documentation Weg-KN1F-G Installation Guide
$129.86
-
WEG Weg CFW500-KPCSA Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$24.76
-
WEG Weg CFW500-KPCSB Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$26.58
-
WEG Weg CFW500-KPCSC Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$27.78
-
WEG Weg CFW500-KPCSD Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$30.80
-
WEG Weg CFW500-KPCSE Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$38.66
-
WEG Weg CFW500-KPCSF Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$84.56
-
WEG Weg CFW500-KPCSG Cable Shielding Kit
The WEG KPCSx is a cable clamp and shield kit for the CFW500 VFDs frame size A through G. Documentation Weg-KPCS Installation Guide
$108.72
-

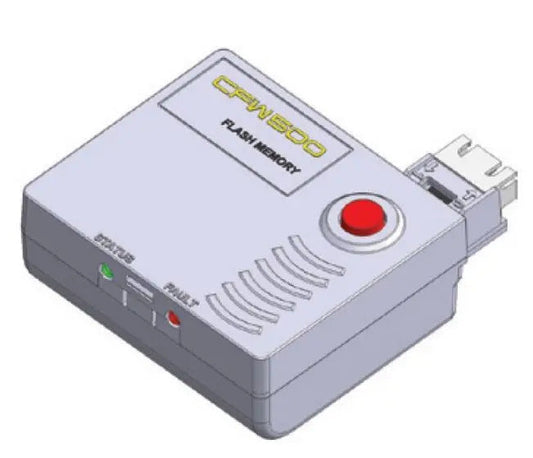

WEG Weg CFW500-MMF Flash Memory Copy Module
The Weg CFW500-MMF memory copy module provides a simple means to copy VFD parameters from one drive to the next. It is battery powered and the drive should not be powered on during use. Documentation Weg-MMF Installation Guide
$114.16
-
WEG Weg CFW500-SFY2 Safety Off Module
The Weg CFW500-SFY2 is a safe-torque off (STO) optional safety module for the CFW500 VFDs. It provide two standardized safety functions: Safe torque off (STO) according to IEC/EN 61800-5-2 or Stop category 0 according to IEC/EN 60204-1. Safe stop 1 time controlled (SS1-t) according to IEC/EN 61800-5-2 or Stop category 1 according to IEC/EN 60204-1. The SFY2 is only compatible with Gen 2 (G2) CFW500 VFDs. Documentation Weg-SFY2 Installation Guide
$84.56
-

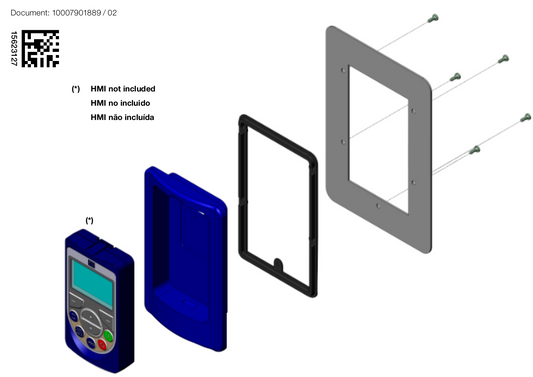

WEG Weg CFW500-RHMIF HMI Keypad Mounting Kit
The Weg CFW500-RHMIF mounting kit is used to mount the HMI-01 remote advanced display and keypad. It includes a mounting frame, gasket and screws. Documentation Weg-RHMIF Installation Guide
$17.85
-
WEG Weg HMI-01 Advanced Text Display / Keypad Unit
The Weg HMI-01 is a remote advanced text display and keypad for the newest line of WEG VFDs, including the CFW500-Gen2, and CFW11. It interfaces to any of the standard I/O modules with RS-485. Features Readable text descriptions of parameters and other settings Battery-backed storage of drive parameters and setup Real-Time battery-backed clock for tagging of events and faults WEG Product Code: 15578295 The RHMIF Remote mounting frame and CCHMIRxxxM cable is needed for remote mounting. For the standard display and keypad see the CFW500-RHMIF unit. See our CFW500 Remote Displays and Options page for all remote mounting options and comparisons. Documentation HMI-01 Installation Guide
$150.85
-
WEG CFW320-CCAN CANopen/DeviceNet Communications Module (Copy)
The Weg CFW320-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector. Compatible with the CFW320 and the older CFW300 VFDs.
$60.40
-
WEG Weg CFW320-CPDP Profibus Module
The Weg CFW320-CPDP module provides Profibus DP communications to the CFW320 VFD. The module has a standard DB-9 style connector. Profibus signal termination is selectable with DIP switches. This module is compatible with the older CFW300 series. Documentation Weg-CPDP Profibus User Guide
$178.13
-
WEG Weg CFW320-CRS232 RS-232 ModBus-RTU Module
The Weg CFW320-CRS232 module provides standard RS-232 3-wire communications to the CFW320 VFD. Documentation Weg-CRS232 Installation Guide
$51.50
You have seen 69 out of 69 products
