WEG Products
-

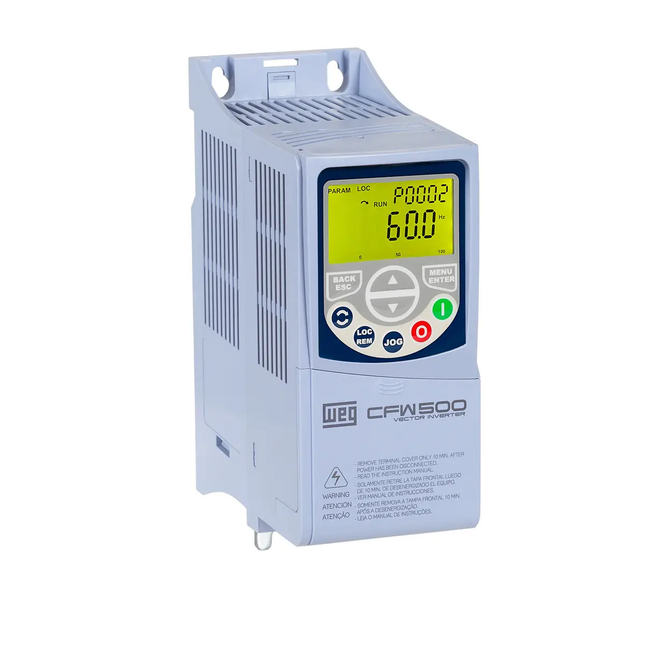

WEG Weg CFW500A02P6T4NB20G2 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input
WEG Product Code: 15573714 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure
$392.00
-

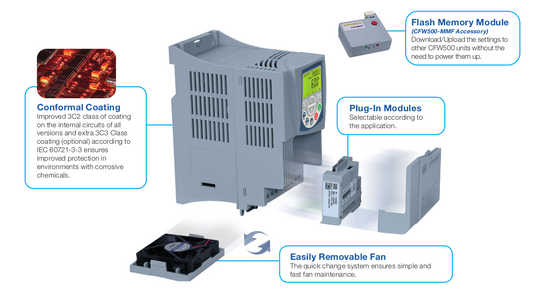

WEG Weg CFW500-MMF Flash Memory Copy Module
The Weg CFW500-MMF memory copy module provides a simple means to copy VFD parameters from one drive to the next. It is battery powered and the drive should not be powered on during use. Documentation Weg-MMF Installation Guide
$114.16
-
WEG Weg 00712ET3E254T-W22 7.5 HP 1200 RPM 254T TEFC Three-Phase Motor
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.
$2,065.00 $1,987.91
-

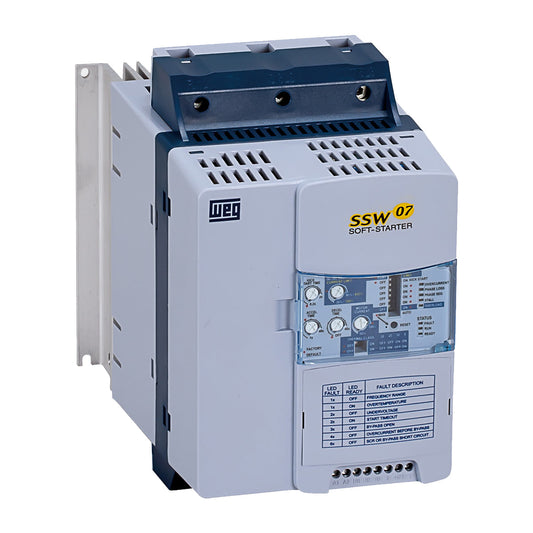

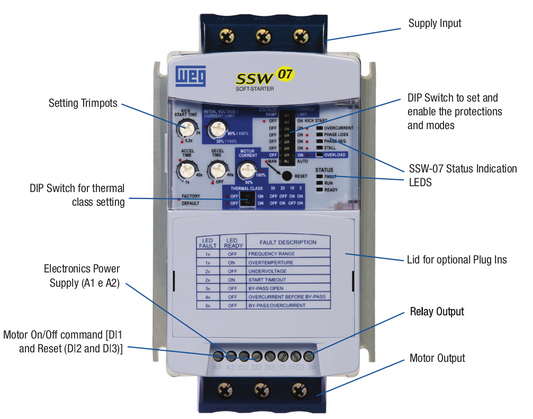

WEG Weg SSW070045T5SZ Soft Start 45 Amp 220-575 VAC
The Weg SSW07 Soft Starter is a compact fully digital soft starter with a state-of-the-art DSP controller and built-in bypass. Easy Setup using only front panel dip switches and dials. The built-in bypass eliminates the need for an external contactor after the motor reaches full speed, and effectively takes the soft start out of the circuit, while protection monitoring remains in place. Ideal for all applications including high inertia loads such as large fans, positive displacement pumps, and heavy loaded conveyors. Accessories SSW07-08-HMI-LOC - Local keypad mounts on SSW07 Soft Starter SSW07-HMI-REM - Remote Keypad kit, includes Interface Module SSW07-HMI-REM-485 - Remote Keypad kit, includes RS-485 Comm. Card CAB-RS-1 - 3.3ft (1 meter) remote keypad cable CAB-RS-2 - 6.6ft (2 meter) remote keypad cable SSW05-07-08-CRS-3M - 9.9ft (3 meter) remote keypad cable SSW05-07-08-CRS-5M - 16ft (5 meter) remote keypad cable CAB-RS-7.5 - 25ft (7.5 meter) remote keypad cable CAB-RS-10 - 33ft (10 meter) remote keypad cable SSW07-08-KRS-232 - RS-232 Communication kit SSW07-08-KRS-485 - RS-485 Communication kit CAB-COMM-3 - 3.3ft (1 meter) Cable for RS-232 (DB9-DB9) CAB-COMM-10 - 33ft (10 meter) Cable for RS-232 (DB9-DB9) KFB-DN-SSW07 - DeviceNet Communication kit with Remote HMI Connection SSW07-08-KPTC-MTR - PTC Temp. Monitoring Kit for motor KSDG2-SSW07 - SuperDrive G2 Kit SSW0708900-KVT-2B - Ventilation Kit M2 (Frame Size 2, 45 to 85 Amp)
$1,461.00 $1,059.23
-
Weg Weg DIB-C33 Surge Suppressor Plug-In for CWB Contactors
The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means. Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in. Catalog No. DIB-C33 Suppresor Type Diode Voltage 12-600VDC Compatible with all Weg CWB series contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$13.83
-
WEG WEG CWB9-11-30D25 9 Amp 3 Pole Contactor 240VAC Coil
The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.Specifications Rated Current 9 Amps NEMA Size N/A Power Poles 3 Pole Coil Voltage 240VAC Aux Contacts 1 NC 1 NO Approvals CE and UL - UL File No. E202315 Features Zero-Width Mechanical Interlock Built-In Aux. Contacts 1NO, 1NC Extra auxiliary contacts can be added to front and side All terminals accessible from top, including coil Front plug-in slot for coil suppressor modules DIN-Rail or Screw Mountable Front channel wire guide for clean, organized installation IEC 60947, UL 508, CE Conformance Documentation CWB Flyer CWB Contactors Catalog CWB9-38 Contactor Installation
$34.58
-
WEG WEG CWB9-11-30D15 9 Amp 3 Pole Contactor 120VAC Coil
The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.Specifications Rated Current 9 Amps NEMA Size N/A Power Poles 3 Pole Coil Voltage 120VAC Aux Contacts 1 NC 1 NO Approvals CE and UL - UL File No. E202315 Features Zero-Width Mechanical Interlock Built-In Aux. Contacts 1NO, 1NC Extra auxiliary contacts can be added to front and side All terminals accessible from top, including coil Front plug-in slot for coil suppressor modules DIN-Rail or Screw Mountable Front channel wire guide for clean, organized installation IEC 60947, UL 508, CE Conformance Documentation CWB Flyer CWB Contactors Catalog CWB9-38 Contactor Installation
$34.58
-
WEG WEG CWB65-11-30C03 65 Amp 3 Pole Contactor 24VDC Coil
The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.NOTE: DC Coils from WEG have been difficult to obtain. Please contact us for availabilitySpecifications Rated Current 65 Amps NEMA Size N/A Power Poles 3 Pole Coil Voltage 24VDC Aux Contacts 1 NC 1 NO Approvals CE and UL - UL File No. E202315 Features Zero-Width Mechanical Interlock Built-In Aux. Contacts 1NO, 1NC Extra auxiliary contacts can be added to front and side All terminals accessible from top, including coil Front plug-in slot for coil suppressor modules DIN-Rail or Screw Mountable Front channel wire guide for clean, organized installation IEC 60947, UL 508, CE Conformance Documentation CWB Flyer CWB Contactors Catalog CWB40-80 Contactor Installation
$161.35
-
WEG WEG CWB32-11-30D39 32 Amp 3 Pole Contactor 480VAC Coil
The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.Specifications Rated Current 32 Amps NEMA Size N/A Power Poles 3 Pole Coil Voltage 480VAC Aux Contacts 1 NC 1 NO Approvals CE and UL - UL File No. E202315 Features Zero-Width Mechanical Interlock Built-In Aux. Contacts 1NO, 1NC Extra auxiliary contacts can be added to front and side All terminals accessible from top, including coil Front plug-in slot for coil suppressor modules DIN-Rail or Screw Mountable Front channel wire guide for clean, organized installation IEC 60947, UL 508, CE Conformance Documentation CWB Flyer CWB Contactors Catalog CWB9-38 Contactor Installation
$64.54
-
WEG WEG CWB32-11-30D25 32 Amp 3 Pole Contactor 240VAC Coil
The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.Specifications Rated Current 32 Amps NEMA Size N/A Power Poles 3 Pole Coil Voltage 240VAC Aux Contacts 1 NC 1 NO Approvals CE and UL - UL File No. E202315 Features Zero-Width Mechanical Interlock Built-In Aux. Contacts 1NO, 1NC Extra auxiliary contacts can be added to front and side All terminals accessible from top, including coil Front plug-in slot for coil suppressor modules DIN-Rail or Screw Mountable Front channel wire guide for clean, organized installation IEC 60947, UL 508, CE Conformance Documentation CWB Flyer CWB Contactors Catalog CWB9-38 Contactor Installation
$64.54
-
WEG WEG BRB-38V24 208-240VAC coil for CWB9-38,CWBN0-1 Contactors
WEG CWB coils can be used to replace defective coils, or to change the coil voltage of a CWMB contactor. AC and DC coils are not interchangeable.Features Replacement Coil for CWB9-38 and CWBN0-1 Contactors Coil Voltage: 208-240VAC Documentation CWB9-38 Coil Installation CWB Flyer CWB Contactors Catalog
$10.14
-
WEG WEG BCXML11 1 NO/1 NC Aux contacts for CWM9-300
WEG CWM auxiliary contacts can be added to front or side of CWM-series contactors for additional control contacts. Features 1 Normally Open (NO) Contact, 1 Normally Closed (NC) Contact Mounts on Left Side Compatible with CWM9 to CWM300 Contactors Terminal Markings to EN 50 005 and EN 50 012 Positive driven contacts in accordance with IEC 60947-4-1 Documentation WEG CWM Flyer WEG CWM Catalog
$11.11
-
WEG WEG BAMRC5 D55 Coil Surge Suppressor 50-127 VAC for CWM9-40 Contactors
WEG coil supresssors are used to reduce coil kickback voltages when the coil is de-energized. They help protect sensitive driving electronics and extend coil life. Features Compatible with CWM9 to CWM40 Contactors Suppresses voltage spikes from coil operation Protects sensitive coil activation electronics Reduces EMI during coil operation. Documentation WEG CWM Flyer WEG CWM Catalog
$15.15
-
WEG WEG CWM40-11-30V24 40 Amp 3 Pole Contactor with 208-240 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM40-11-30V24 Rated Current: 40 Amp Coil Voltage: 208-240 VAC 60Hz / 180-208 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 1 NC 1 NO (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$92.92
-
WEG WEG CWM40-00-20V18 40 Amp 2 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM40-00-20V18 Rated Current: 40 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 2 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$80.80
-

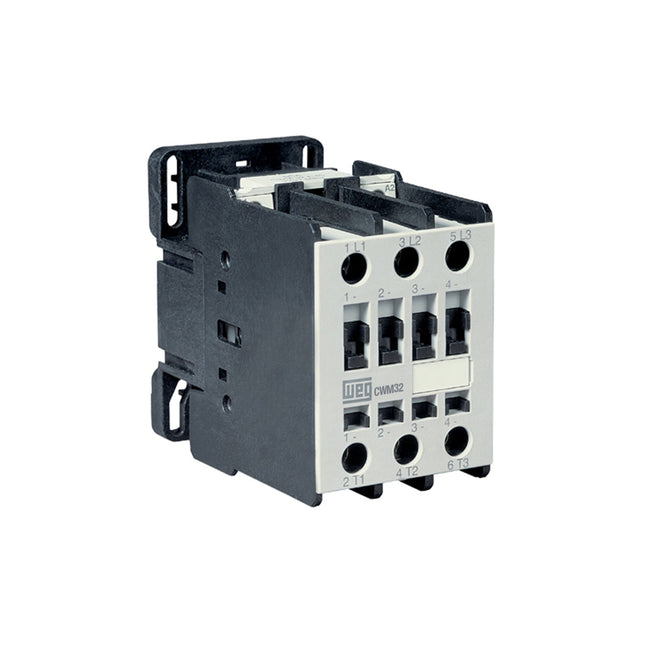

WEG WEG CWM32-11-30V18 32 Amp 3 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM32-11-30V18 Rated Current: 32 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 1 NC 1 NO (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$80.80
-
WEG WEG CWM32-00-30V47 32 Amp 3 Pole Contactor with 480 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM32-00-30V47 Rated Current: 32 Amp Coil Voltage: 480 VAC 60Hz / 400-415 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$61.25
-
WEG WEG CWM32-00-20V18 32 Amp 2 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM32-00-20V18 Rated Current: 32 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 2 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$63.63
-

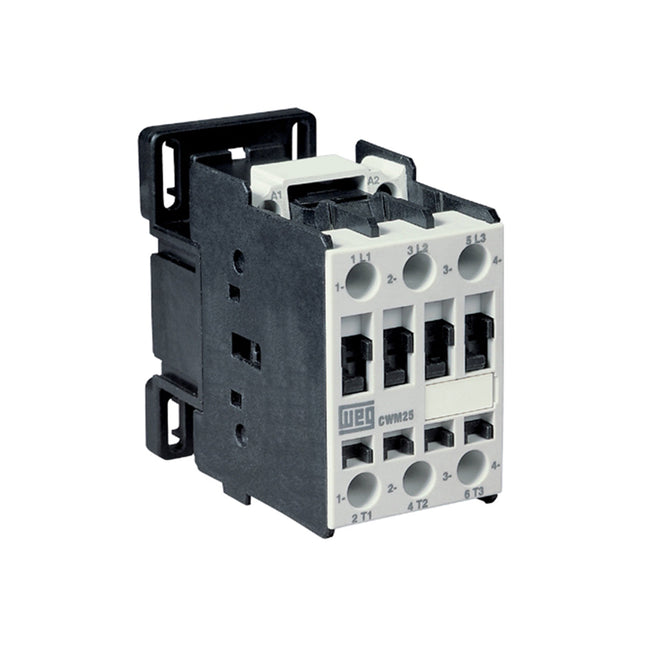

WEG WEG CWM25-00-30V47 25 Amp 3 Pole Contactor with 480 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM25-00-30V47 Rated Current: 25 Amp Coil Voltage: 480 VAC 60Hz / 400-415 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$59.59
-
WEG WEG CWM25-00-30V18 25 Amp 3 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM25-00-30V18 Rated Current: 25 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$59.59
-

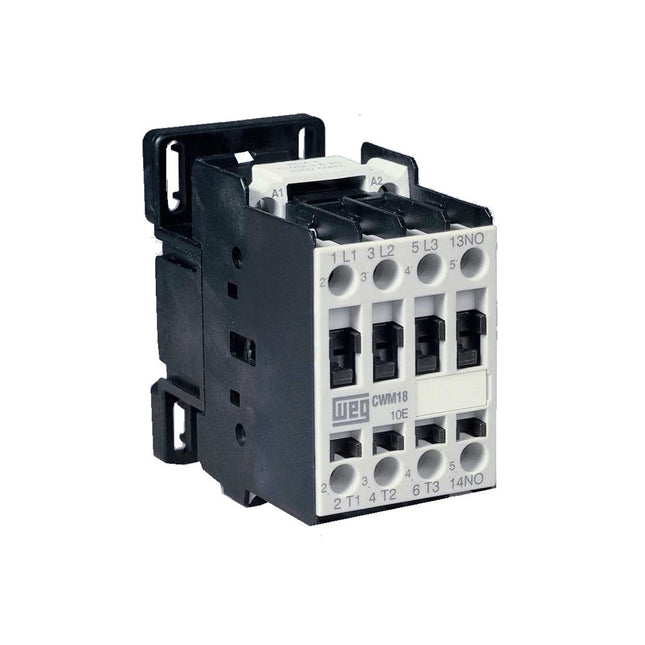

WEG WEG CWM18-10-30V24 18 Amp 3 Pole Contactor with 208-240 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM18-10-30V24 Rated Current: 18 Amp Coil Voltage: 208-240 VAC 60Hz / 180-208 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 1 NO (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$52.02
-
WEG WEG CWM18-00-40V18 18 Amp 4 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM18-00-40V18 Rated Current: 18 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 4 Pole Auxiliary Contacts: 0 (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$54.69
-
WEG WEG CWM12-10-30V24 12 Amp 3 Pole Contactor with 208-240 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM12-10-30V24 Rated Current: 12 Amp Coil Voltage: 208-240 VAC 60Hz / 180-208 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 1 NO (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$44.95
-
WEG WEG CWM12-10-30V18 12 Amp 3 Pole Contactor with 120 VAC Coil
The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads. Specs Model No: CWM12-10-30V18 Rated Current: 12 Amp Coil Voltage: 120 VAC 60Hz / 110 VAC 50Hz Number of Power Poles: 3 Pole Auxiliary Contacts: 1 NO (More available as added option) Features 2-pole and 3-pole contactors Panel Mountable on 35mm DIN rails up to CWM105 size Wide range of AC and DC Coils Compact Footprint Easy-to-use accessories through snap-on connectivity Conforms to UL 508, IEC 60947, CE Documentation WEG CWM Flyer WEG CWM Catalog WEG CWM Contactor Installation Instructions CWM9 to CWM105 WEG CWM Contactor Installation Instructions CWM400 to CWM800 3-D Models and More WEG Downloads
$44.95
-
WEG WEG MPW40-3-U020 Manual Motor Protector 16.0-20.0A
Weg MPW manual motor protectors provide a very compact solution for meeting the 4 NEC requirements for a combination motor starter: Motor Disconnect Branch Circuit Protection Motor controller Overload protection The MPW series meets all of the above as well as UL requirements for self-protected motor controllers to be used with type E and F applications. Standard Features High short-circuit interruptiong ratings - up to 65kA 480V Phase loss sensitivity protection UL Type-E self-protected combination starter Suitable for motor disconnect applications Group motor installations (per NEC Article 430) Wide variety of Accessories Rated for AC and DC applications Weg MPW Flyer Weg MPW Brochure WEG MPW Accessories We carry the full line of MPW accessories including: Auxiliary Contact Blocks Bus bars Enclosures Trip Signaling blocks (TSP) Undervoltage release URMP or Shunt Release SRMP, and more
$76.07
-
WEG Weg FTBBS Feeder Terminals for MPW18/MPW40
Feeder Terminals for MPW18/MPW40 Features Feeder terminals for 6-25mm solid wire, or 6-16mm flex wire with terminal Rated Insulation Voltage: 690VAC, Ie 63 Amps. Documentation Weg MPW Brochure Weg MPW Flyer
$16.14
-
WEG Weg BBS45-5 Bus Bar for Five adjacent MPW18-40 without side Aux. Contacts
Bus Bar for Five adjacent MPW18-40 without side Aux. Contacts Features For use with MPW18 and MPW40 For parallel bussing of side-by-side mounting MPWs without side aux. contacts Rated insulation 690 VAC Rated Ie 63 Amps Documentation Weg MPW Brochure Weg MPW Flyer
$27.66
-
WEG Weg BBS45-4 Bus Bar for Four adjacent MPW18-40 without side Aux. Contacts
Bus Bar for Four adjacent MPW18-40 without side Aux. Contacts Features For use with MPW18 and MPW40 For parallel bussing of side-by-side mounting MPWs without side aux. contacts Rated insulation 690 VAC Rated Ie 63 Amps Documentation Weg MPW Brochure Weg MPW Flyer
$20.75
-
WEG Weg ACBS-11 Side Aux. Contact 1NO/1NC for MPW18-MPW80.
Side Aux. Contact 1NO/1NC for MPW18-MPW80. Features Left Side moutning auxiliary contact blockf for MPW devices. Documentation Weg MPW Brochure Weg MPW Flyer
$10.14
-
WEG WEG RW17-1D3-D018 3 Pole Overload Relay 1.20-1.80 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWC07, CWC9, CWC12, CWC16, CWCA0 contactors Current Setting Range: 1.20-1.80 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$27.47
-
WEG WEG RWB40E-3-R4U008 Electronic Overload Relay 1.60-8.00 Amp Remote Reset
The Weg RW-E series of electronic overload relays are designed to protect expensive motors from damage due to overloads, phase loss, and current unblances. The Weg electronic relay is up to 87% more energy efficient compared to thermal overload relays, saving on both energy and cabinet ventilation demands. They also have a much larger settable current range as compared to the thermal overloads, thus reducing spare parts inventory. The entire current range from 0.4 to 820 amps is covered by just 4 RW-E products.This model features 2 extra control terminals, A3,A4, for optional remote reset. By applying 24VDC to these terminals, the relay may be reset from an overload condition. Manual reset still available from the blue button on the front. Specs Direct mounting to WEG CWB9, CWB12, CWB18, CWB25, CWB32, CWB38 contactors Current Setting Range: 1.60-8.00 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Auto/Manual Reset Button, Remote Reset via terminals A3,A4 Features Adjustable trip class 10,20 or 30 Wide range settable current overload value Overload, phase-loss and current unbalance protection Red flag trip indication Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Low energy consumption and low power dissipation Direct mounting below Weg contactorsStand-alone mount accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Electronic Overload Flyer Weg Electronic Overload Catalog Accessories BF27-2D: Remote Mounting Kit for RW27-2D and RWB40E Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$64.58
-
WEG WEG RW67-2D3-U063 3 Pole Overload Relay 50.0-63.0 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWM50, CWM65, CWM80, CWM50N contactors Current Setting Range: 50.0-63.0 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories BF67-2D: Remote Mounting Kit for RW67-2D Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$62.61
-
WEG WEG RW67-2D3-U057 3 Pole Overload Relay 40.0-57.0 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWM50, CWM65, CWM80, CWM50N contactors Current Setting Range: 40.0-57.0 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories BF67-2D: Remote Mounting Kit for RW67-2D Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$62.61
-
WEG WEG RW27-2D3-D125 3 Pole Overload Relay 8.00-12.5 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWB9, CWB12, CWB18, CWB25, CWB32, CWB38, CWBN00, CWBN0, CWBN1 contactors Current Setting Range: 8.00-12.5 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories BF27-2D: Remote Mounting Kit for RW27-2D and RWB40E Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$32.95
-
WEG WEG RW27-2D3-D063 3 Pole Overload Relay 4.00-6.30 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWB9, CWB12, CWB18, CWB25, CWB32, CWB38, CWBN00, CWBN0, CWBN1 contactors Current Setting Range: 4.00-6.30 Amps Number of power poles: 3 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories BF27-2D: Remote Mounting Kit for RW27-2D and RWB40E Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$32.95
-
WEG WEG RW27-1D2-U032 2 Pole Overload Relay 22.0-32.0 Amp
Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more. Specs Direct mounting to WEG CWM9, CWM12, CWM18, CWM25, CWM9N, CWM18N contactors Current Setting Range: 22.0-32.0 Amps Number of power poles: 2 Auxiliary Contacts: 1 N.O., 1 N.C, isolated Features Overload, phase-loss and current unbalance protection Class 10 Trip Characteristics Isolated NO and NC auxiliary contacts Manual/Auto/Remote RESET button Direct mounting below Weg contactors Stand-Alone accessory allows mounting anywhere Selectable Auto or Manual Reset Documentation Weg Thermal Overload Flyer Weg Overload Relay Catalog Accessories BF27D: Remote Mounting Kit for RW27-1D and RWM40E Overloads CSW-BHF437: Overload Relay Reset Button with adjustable shaft
$32.95
You have seen 72 out of 3830 products
