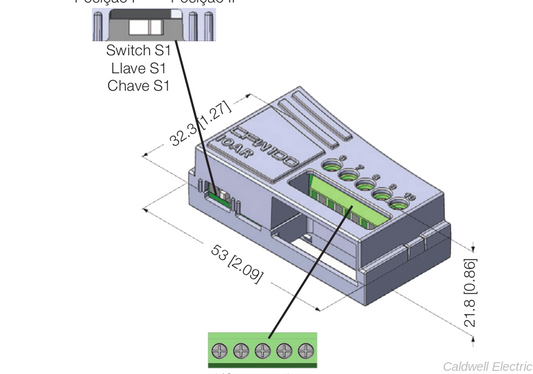

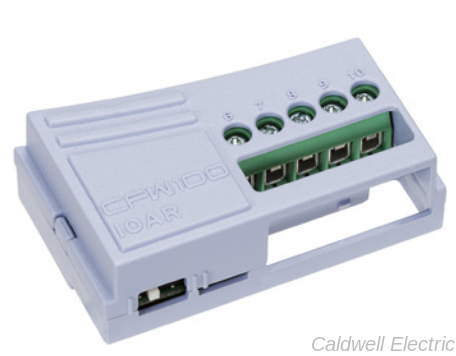

The Weg IOAR module provides 1 analog input, 1 relay output, and a +10VDC reference for a potentiometer. The analog input is DIP switch settable between 0-10VDC voltage mode, or 4-20mA current mode. Documentation Weg-IOAR Installation Guide
$47.14

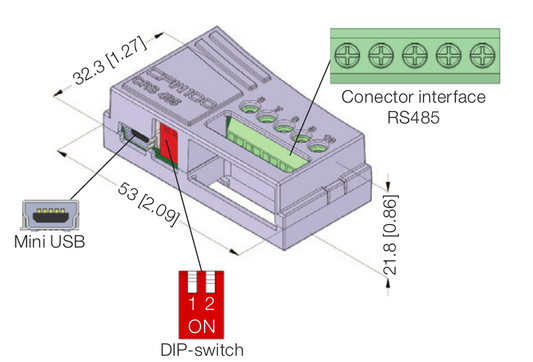

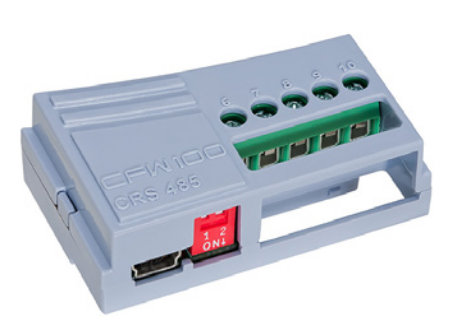

The Weg CRS485 module provides standard RS-485 over-the-wire communications with VFD. The VFD can be commanded and monitored by means of the WPS software. RS-485 termination is dip-switch settable on the module. Modbus-RTU protocol is supported. Documentation Weg-CRS485 Installation Guide Weg Modbus RTU Manual
$47.72

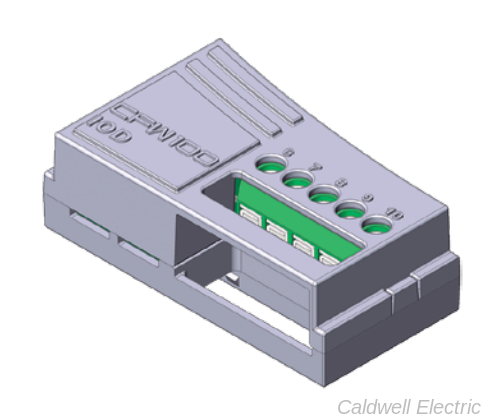

The Weg IOD module provides 4 digital isolated inputs. The module consists of 4 transistor inputs configurable as NPN or PNP type, with max. input voltage of 30VDC. Documentation Weg-IOD Installation Guide
$47.72

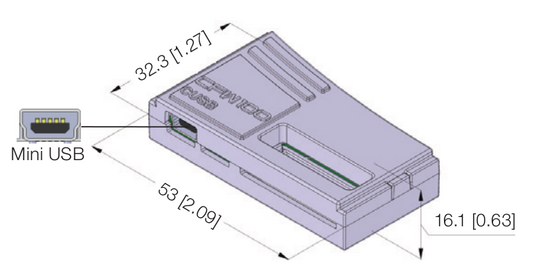

The Weg CUSB module provides USB V2.0 communications with the VFD. Programming, parameter setting, and monitoring can be done using the supplied module and cable, connected to a computer running the free Weg WPS software. The module includes a USB cable with a mini-USB connector on the drive end, and a standard USB Type A connector on the computer end. Documentation Weg-CUSB Installation Guide
$50.63

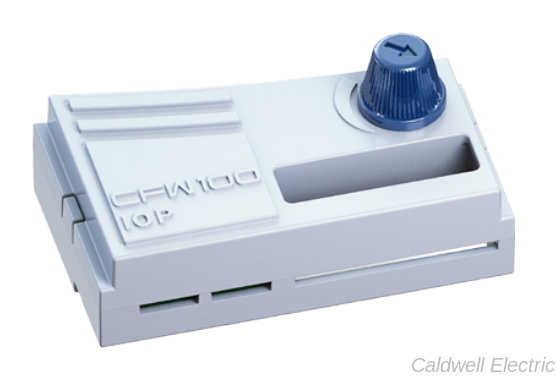

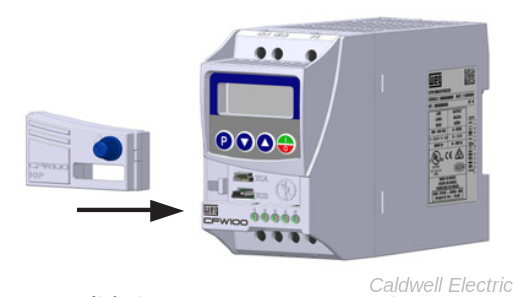

The Weg IOp module provides a potentiomenter for setting frequency,speed or other parameters. Documentation Weg-IOP Installation Guide
$52.38

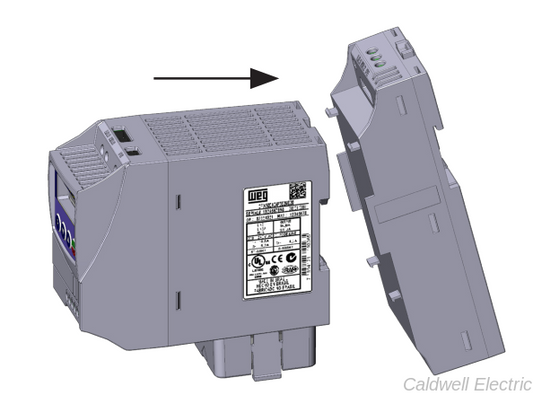

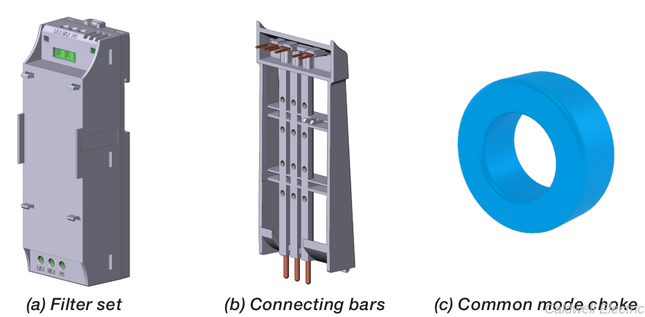

The Weg KFABC-S2 provides RFI filtering for single-phase 220VAC power, reducing electromagnetic interference. Documentation Weg-KFABC Installation Guide
$52.38

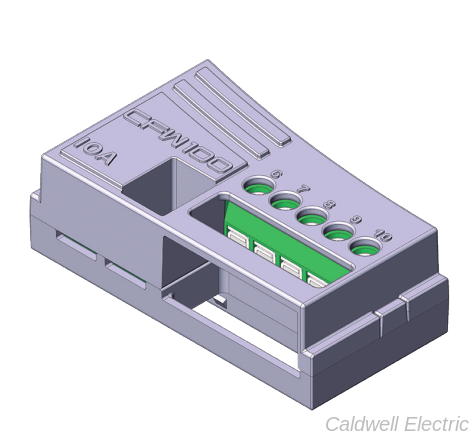

The Weg IOA module provides 1 analog input, 1 analog output, and a +10VDC reference for a potentiometer. The analog input and output are DIP switch configurable as either 0-10V voltage-mode or 4-20mA current-mode. Documentation Weg-IOA Installation Guide
$57.62
The Weg KFABC-S1 provides RFI filtering for single-phase 110VAC power, reducing electromagnetic interference. Documentation Weg-KFABC Installation Guide
$73.33

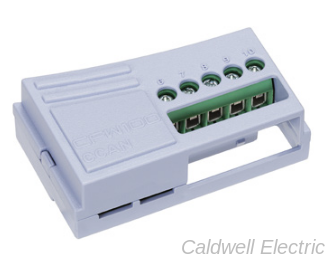

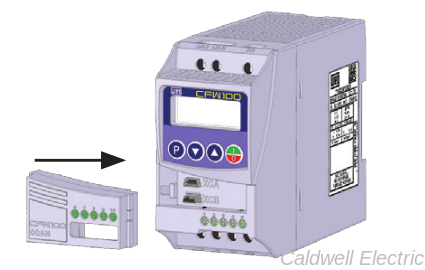

The Weg CFW100-CCAN communications module supports both CANopen and DeviceNet communication over a 5-wire connector. The following table outlines the connector pinout: CAN Connector Pinout Pin Def. Description 6 V(-) Negative Power Supply 7 CAN_L Comms signal CAN_L 8 Shield Cable Shield 9 CAN_H Comms signal CANL_H 10 V(+) Positive Power Supply Weg EDS files are freely available to download for CANopen and DeviceNet configurations. See links on the Documents section below. Documentation Weg-CCAN Installation Guide Weg-CANopen Manual Weg-CCAN DeviceNet Manual Weg CANopen EDS Configuration File Weg DeviceNet EDS Configuration File
$113.49

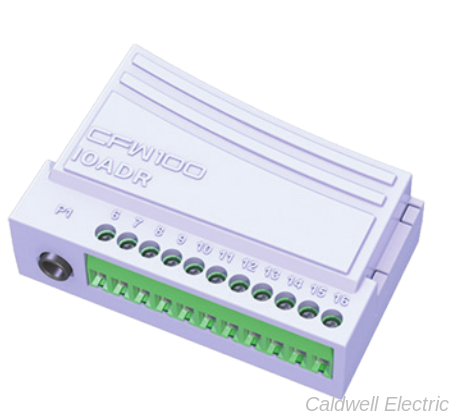

The Weg IOADR module provides a wireless infrared remote control for the VFD. The kit includes the IOADR module, the infrared remote control, and a 2-meter cable between the module and IR sensor. The IOADR module provides 1 analog input (voltage or current), a +10VDC reference, and 3 relay outputs rated at 0.5 Amp. Documentation Weg-IOADR Installation Guide
$120.47

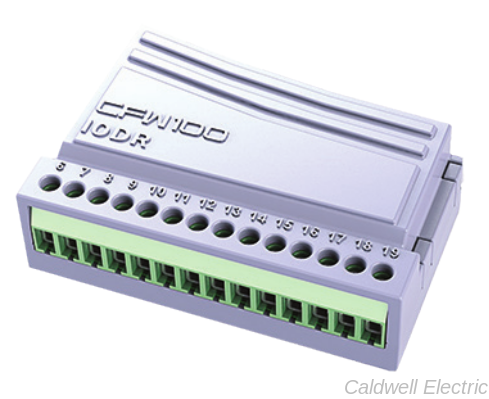

The Weg IODR module provides 3 isolated digital inputs, 3 relay outputs, and an encoder input and a +5VDC supply. Documentation Weg-IODR Installation Guide
$128.04

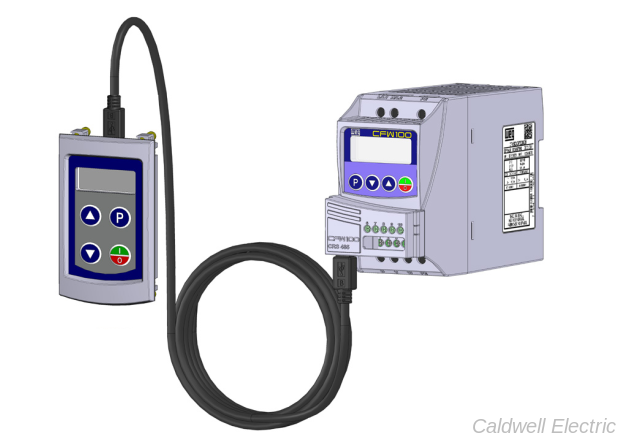

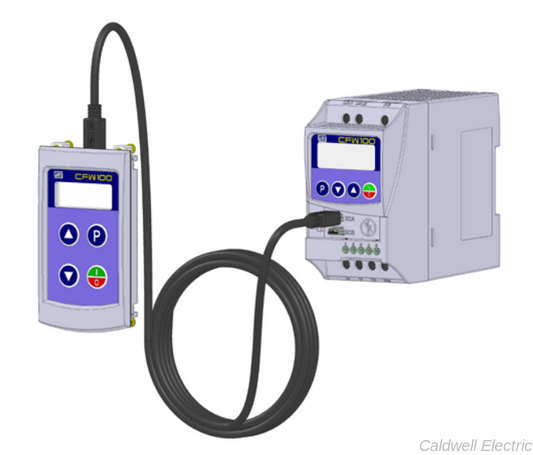

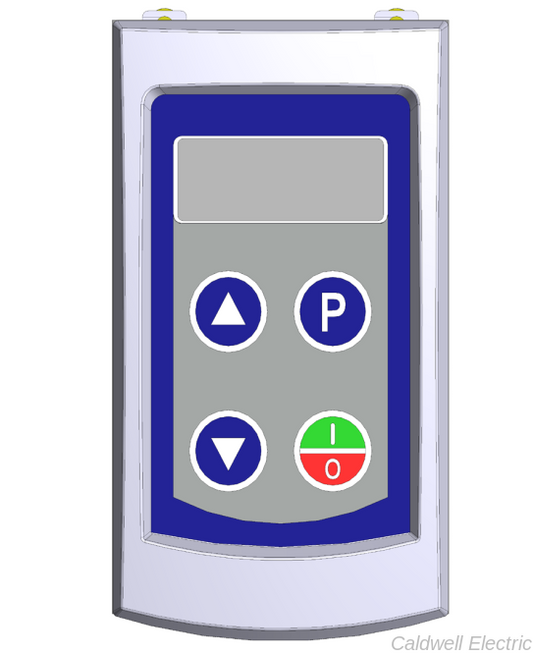

The Weg KHMIR is a remote keypad kit. The kit contains the CRS485 module, remote HMI keypad/display, and a 3-meter USB cable. Documentation Weg-KHMIR Installation Guide
$148.99
The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference
$160.05
The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference
$172.27
The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference
$178.67
The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference
$183.33
The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference
$194.97
The Weg CFW100 takes in single-phase power and produces 3-phase variable speed motor power. It is the smallest volume VFD in the market, with the smallest frame size measuring just 4.0 x 2.2 x 5.1 inches. Available in both single-phase 120VAC and 240VAC input from 1/4 HP to 1 HP. Perfect for home or industrial control of a 3 phase motor when only single-phase power is available.
