VFDs & AC Drives

We maintain a good stock of variable frequency drives (VFDs) at our store in Waco, Texas.  Same day shippping on orders received by 2pm CST.

What is a VFD?

A VFD, or variable frequency drive, also known as an AC Drive, is an electronic unit that provides a means to control the speed of a 3-Phase A/C motor.  Some VFDs can take in single-phase (like the power in your home), and convert it to 3-phase to run a 3-phase motor.  Some VFD's can even run on DC battery power.

Use our product filters below to find the VFD you need:

73 products

Filter

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S220G2 VFD 1.6A 0.33HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $160.05

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S220G2 VFD 2.6A 0.75HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $172.27

    View options

  • Weg CFW100 VFD Frame Size A

    View options

    WEG Weg CFW100A01P6S120G2 VFD 1.6A 0.33HP 120 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $178.67

    View options

  • Weg CFW100 VFD Frame Size C

    View options

    WEG Weg CFW100C04P2S220G2 VFD 4.2A 1HP 220 VAC Single-Phase Input

    Normally ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Normally ships within 24 hours

    $183.33

    View options

  • Weg CFW100 VFD Frame Size B

    View options

    WEG Weg CFW100B02P6S120G2 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    Ships within 24 hours

    The Weg CFW100 VFD is one of the smallest in the marketplace, measuring only 2.17 inches wide, and a frame size A height of only 3.94 inches. The CFW100 series take in single-phase 110VAC or 220VAC and produces 230V 3-phase power to run electic motors from 1/4 HP up to 2 HP. The drive is fully programmable and even has a built-in PLC that can programmed for special functionality. A variety of I/O and communication option are also available. Features DIN-Rail Form Factor Easily replace contactor/overload setup with VFD. Robust Overload current to 150% for 60 seconds, Ambient Temp. to 50°C SoftPLC Flexible customizable applications programmable with ladder logic PID Controller Performance control based on parameter changes (pressure, flow, or other input) Communication Protocols Modbus-RTU,CANopen, RS-485, Ethernet and other options Conformal Coated Circuits Extends the life of electronic boards in corrosive environments, Class 3C2 oer IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. A Note on HP: It is best to match a VFD drive to the motor based on nameplate current, rather than HP. This is because the drive power electronics are rated by current. To ensure the drive can handle the motor nameplate current, the drive's current should be at least as high as the full load amps of the motor. Documentation CFW100 Users Manual CFW100 Flyer CFW100 Programming Manual CFW100 SoftPLC Manual CFW100 Quick Installation Guide CFW100 Quick Parameter Reference

    Read more

    Ships within 24 hours

    $194.97

    View options

  • Weg CFW320A02P6S1NB20 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    View options

    WEG Weg CFW320A02P6S1NB20 VFD 2.6A 0.75HP 120 VAC Single-Phase Input

    Normally ships within 24 hours

      The Weg CFW320 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). Features DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW320 Users Manual CFW320 Brochure CFW320 Programming Manual CFW320 Quick Installation Guide CFW320 User Manual Addendum

    Read more

    Normally ships within 24 hours

    $237.98

    View options

  • Weg CFW320A04P2S1NB20 VFD 4.2A 1HP 120 VAC Single-Phase Input

    View options

    WEG Weg CFW320A04P2S1NB20 VFD 4.2A 1HP 120 VAC Single-Phase Input

    Ships within 24 hours

      The Weg CFW320 series replaces the CFW300 series.  This AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW320 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC and 480V up to 15 amp. Features include: DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW320 Users Manual CFW320 Brochure CFW320 Programming Manual CFW320 Quick Installation Guide CFW320 Flyer CFW320 User Manual Addendum

    Read more

    Ships within 24 hours

    $253.68

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6S2NB20 VFD 1.6 Amp 0.33 HP 230 VAC Single-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575728 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $272.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6S2NB20G2 VFD 1.6 Amp 0.33 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571885 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $272.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6B2NB20 VFD 1.6 Amp 0.33 HP 230 VAC Single/Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575745 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $275.42

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6B2NB20G2 VFD 1.6 Amp 0.33 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15570800 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $275.42

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6S2NB20G2 VFD 2.6 Amp 0.75 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571949 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $279.65

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6B2NB20G2 VFD 2.6 Amp 0.75 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571879 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $282.07

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3S2NB20 VFD 4.3 Amp 1.5 HP 230 VAC Single-Phase Input

    Ships within 24 hours

    WEG Product Code: 11474973 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $301.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3S2NB20G2 VFD 4.3 Amp 1.5 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571953 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $301.40

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3B2NB20 VFD 4.3 Amp 1.5 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11575768 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $305.62

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3B2NB20G2 VFD 4.3 Amp 1.5 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15571881 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $305.62

    View options

  • CFW320 Frame Size B

    View options

    WEG Weg CFW320B03P5T4DB20 VFD 3.5A 2 HP 480 VAC Three-Phase Input

    Ships within 24 hours

      The Weg CFW320 series replaces the CFW300 series.  This AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW320 product range includes single-phase 120 or 230 VAC input up to 5 HP, as well as 3-phase 480V up to 10 HP. Features include: DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW320 Users Manual CFW320 Brochure CFW320 Programming Manual CFW320 Quick Installation Guide CFW320 Flyer CFW320 User Manual Addendum

    Read more

    Ships within 24 hours

    $341.86

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P0T4NB20G2 VFD 1.0 Amp 0.5 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572819 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $351.53

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6T4NB20 VFD 1.6 Amp 1 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575807 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $364.82

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A01P6T4NB20G2 VFD 1.6 Amp 1 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572908 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $364.82

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A07P0T2NB20G2 VFD 7.0 Amp 2 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572625 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $379.31

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A07P0S2NB20G2 VFD 7.0 Amp 2 HP 230 VAC Single-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572573 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $382.33

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A02P6T4NB20G2 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15573714 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $392.00

    View options

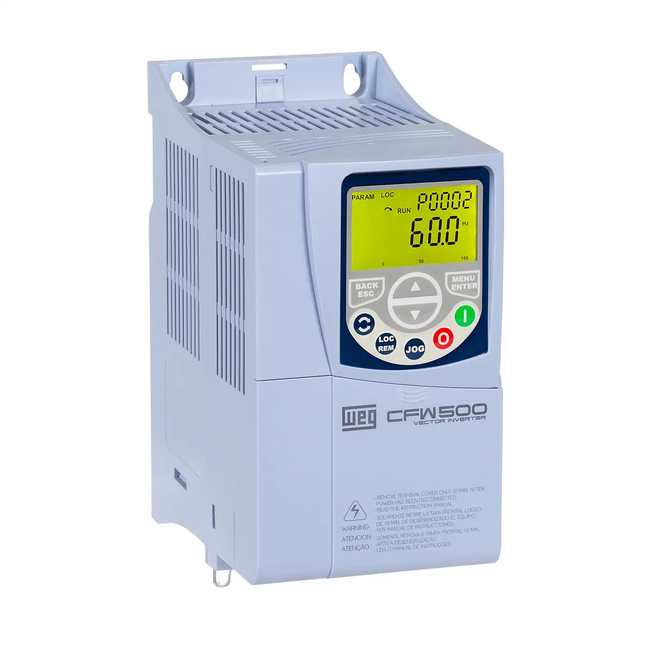

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B07P3B2DB20 VFD 7.3 Amp 2 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895031 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $409.51

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B07P3B2DB20G2 VFD 7.3 Amp 2 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15574655 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $409.51

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B02P6T4DB20 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11920737 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $427.63

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B02P6T4DB20G2 VFD 2.6 Amp 2 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575568 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $427.63

    View options

  • CFW320 Frame Size B

    View options

    WEG Weg CFW320B04P8T4DB20 VFD 4.8A 3 HP 480 VAC Three-Phase Input

    Normally ships within 24 hours

      The Weg CFW320 series replaces the CFW300 series.  This AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW320 product range includes single-phase 120 or 230 VAC input up to 5 HP, as well as 3-phase 480V up to 10 HP. Features include: DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW320 Users Manual CFW320 Brochure CFW320 Programming Manual CFW320 Quick Installation Guide CFW320 Flyer CFW320 User Manual Addendum

    Read more

    Normally ships within 24 hours

    $431.26

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A09P6T2NB20G2 VFD 9.6 Amp 3 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15572689 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $466.89

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B10P0B2DB20G2 VFD 10.0 Amp 3 HP 230 VAC Single/Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575067 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $476.56

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3T4NB20 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 11575839 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $482.60

    View options

  • CFW500 Frame Size A

    View options

    WEG Weg CFW500A04P3T4NB20G2 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15573819 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $482.60

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B16P0T2DB20G2 VFD 16.0 Amp 5 HP 230 VAC Three-Phase Input

    Ships within 24 hours

    WEG Product Code: 15575202 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Ships within 24 hours

    $508.57

    View options

  • CFW320 Frame Size B

    View options

    WEG Weg CFW320B07P6T4DB20 VFD 7.6A 5 HP 480 VAC Three-Phase Input

    Normally ships within 24 hours

      The Weg CFW320 series replaces the CFW300 series.  This AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications. The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out). The CFW320 product range includes single-phase 120 or 230 VAC input up to 5 HP, as well as 3-phase 480V up to 10 HP. Features include: DIN-Rail Form FactorEasily replace contactor/overlaod setup with VFD. Built-In Motor ProtectionProtects motor from overload/overcurrent, overvoltage, phase-loss, and more SoftPLCFlexible customization with programmable ladder logic and free WPS software. Built-In PID ControllerPID mode provides closed loop process control from pressure, flow, or other input. 2-Slots for OptionsLarge variety of communications and I/O Option Modules available Conformal-Coated Circuit BoardsExtends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Documentation CFW320 Users Manual CFW320 Brochure CFW320 Programming Manual CFW320 Quick Installation Guide CFW320 Flyer CFW320 User Manual Addendum

    Read more

    Normally ships within 24 hours

    $515.82

    View options

  • CFW500 Frame Size B

    View options

    WEG Weg CFW500B04P3T4DB20 VFD 4.3 Amp 3 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 11895107 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $538.77

    View options

You have seen 36 out of 73 products

Show more products
