Weg SSW070412T5SZ Soft Start 412 Amp 220-575 VAC VAC

Weg SSW070412T5SZ Soft Start 412 Amp 220-575 VAC VAC

Regular price $3,713.68
Regular price $6,088.00 Sale price $3,713.68
Sale Sold out
Shipping calculated at checkout.

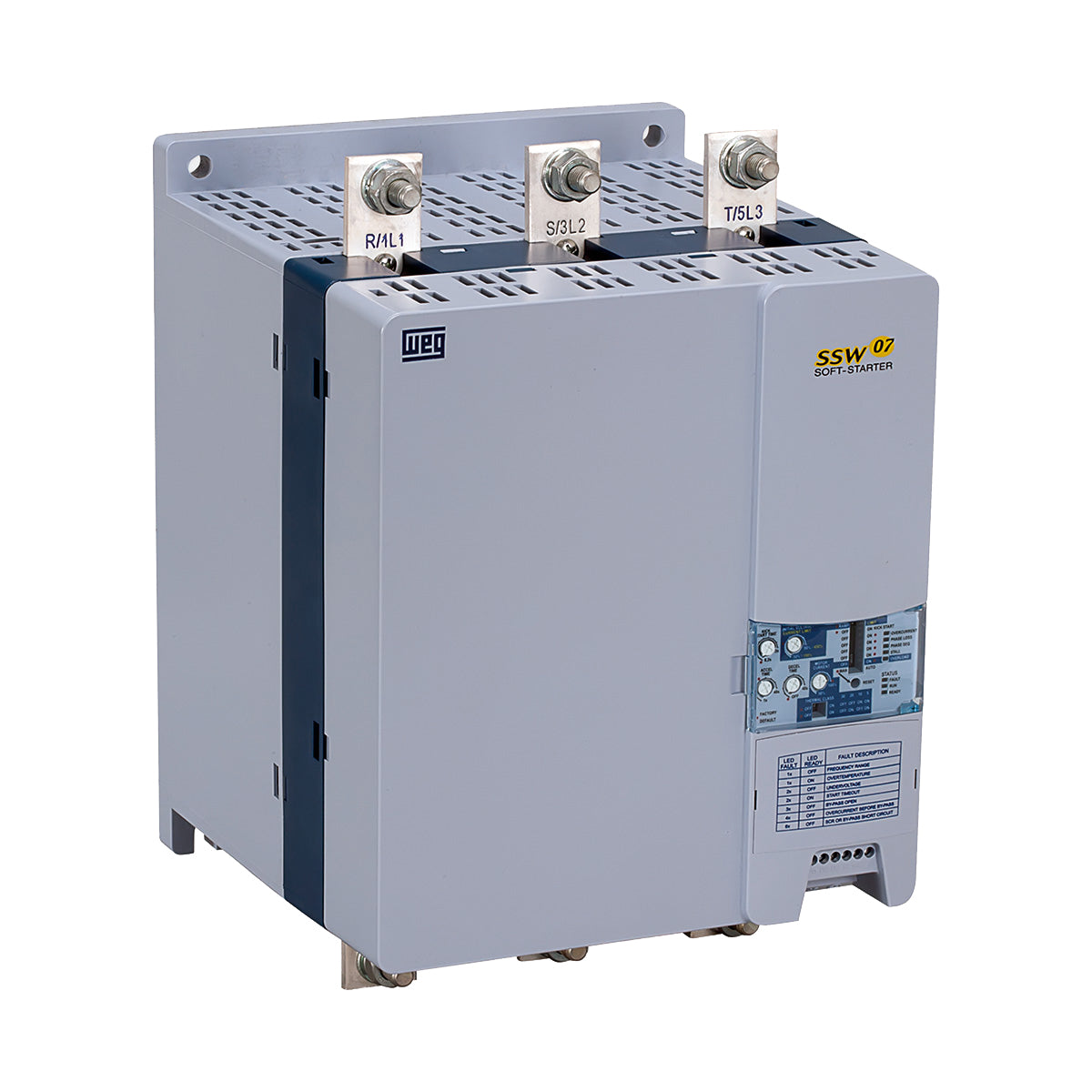

The Weg SSW07 Soft Starter is a compact fully digital soft starter with a state-of-the-art DSP controller and built-in bypass.

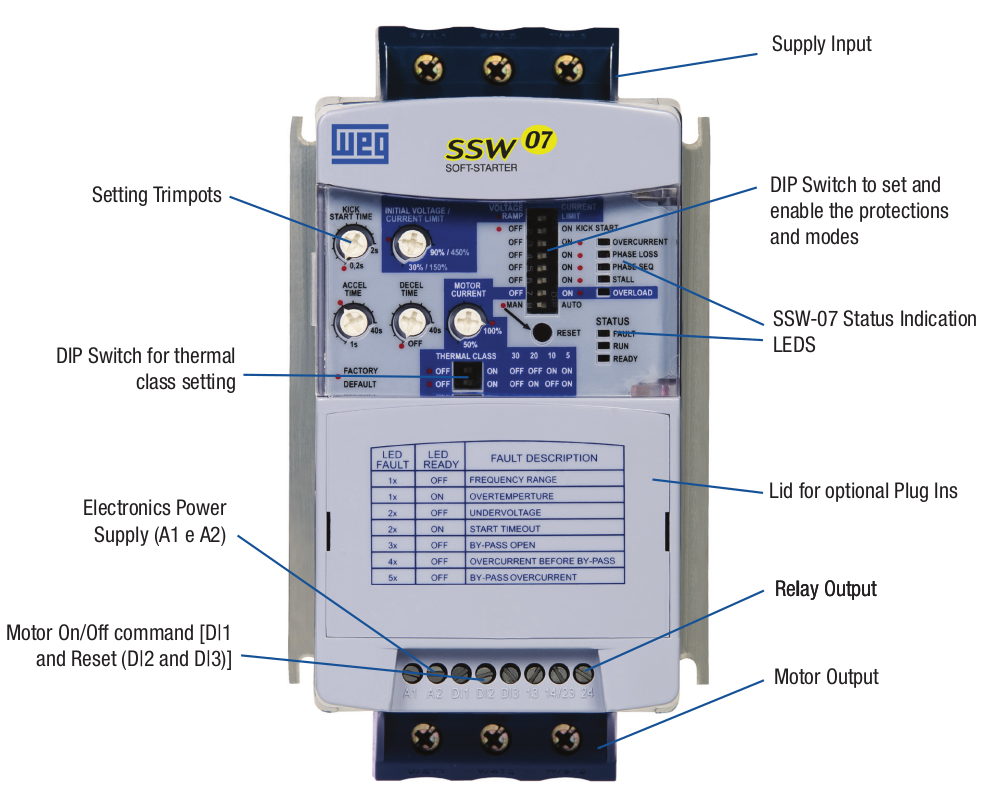

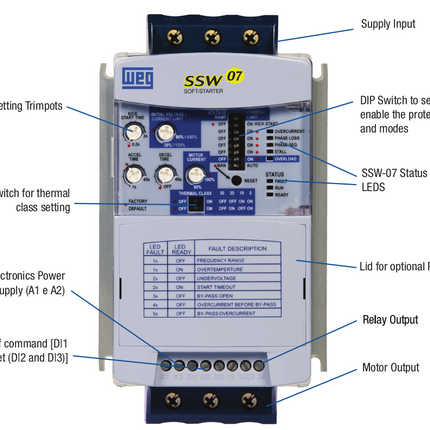

Easy Setup using only front panel dip switches and dials.

The built-in bypass eliminates the need for an external contactor after the motor reaches full speed, and effectively takes the soft start out of the circuit, while protection monitoring remains in place.

Ideal for all applications including high inertia loads such as large fans, positive displacement pumps, and heavy loaded conveyers


View full details
  • Specs

    Model: SSW070412T5SZ

    P/N: 11250213

    Amps: 412

    Voltage: 220-575 VAC

    Phase: Three-Phase


    L: 13 in

    W: 9 in

    D: 9.6 in

    Weight: 28.2 lb

    Enclosure Rating: IP00


    • General Purpose
    • High Inertia Loads
    • Large Fans
    • Positive Displacement Pumps

  • Features

    Universal Voltage: 220 - 575 VAC

    Built-In Bypass Contactor

    Integral Electronic Motor Protection

    Built-In Thermal Relay

    SuperDrive G2 Compatible

    Conformal Coated Circuit Boards

    Good for High Inertia Loads, Large Fans, Pumps

    UL 508 and CE Certified
