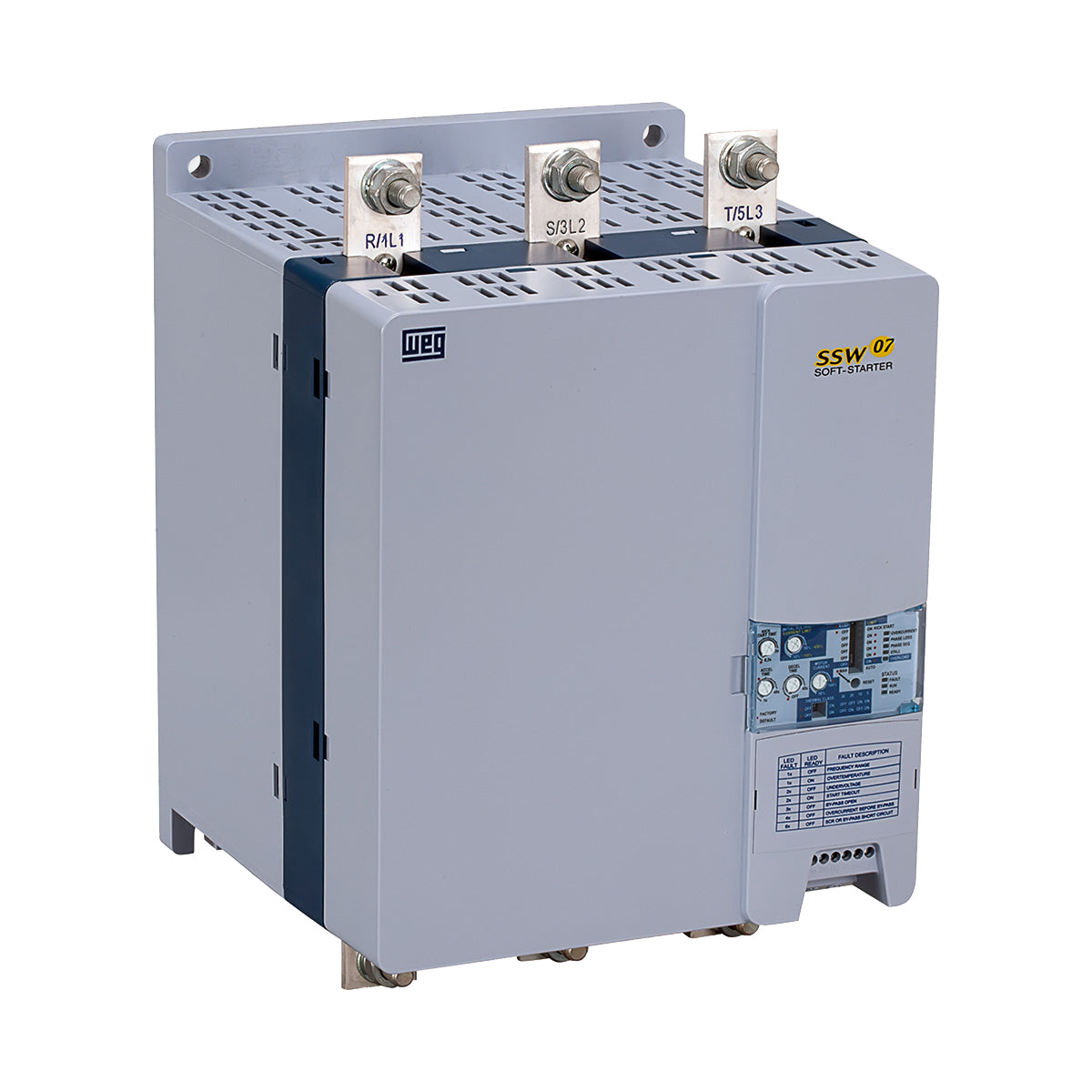

Weg SSW070365T5SZ Soft Start 365 Amp 220-575 VAC VAC
Weg SSW070365T5SZ Soft Start 365 Amp 220-575 VAC VAC
The Weg SSW07 Soft Starter is a compact fully digital soft starter with a state-of-the-art DSP controller and built-in bypass.

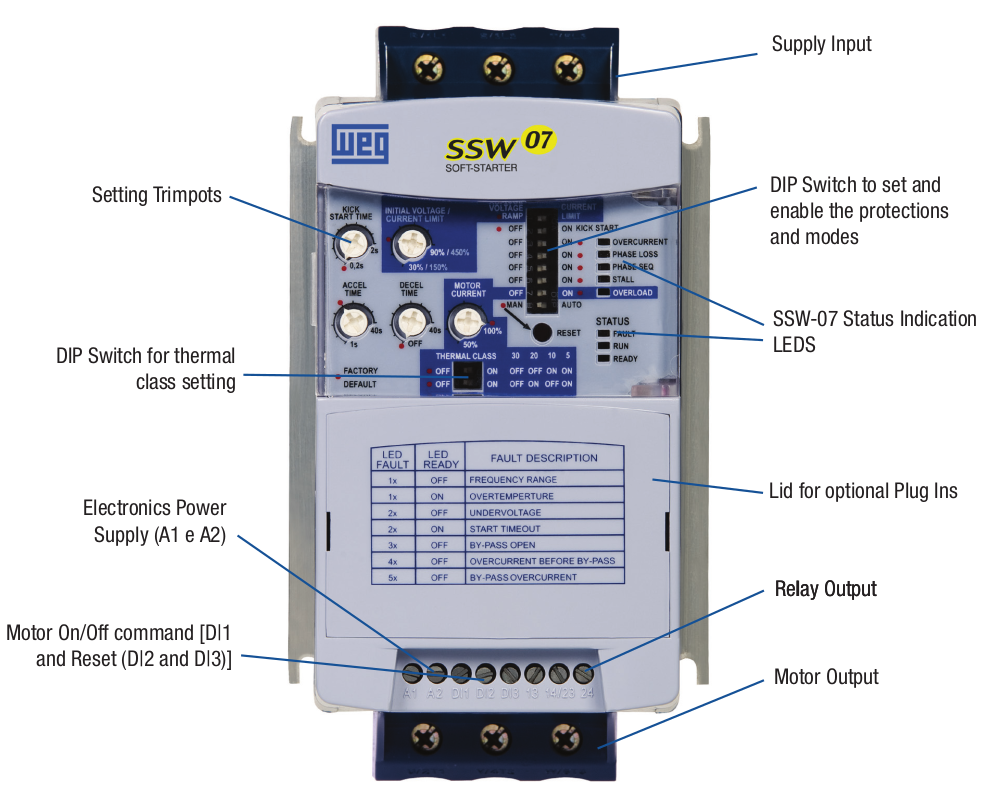

Easy Setup using only front panel dip switches and dials.
The built-in bypass eliminates the need for an external contactor after the motor reaches full speed, and effectively takes the soft start out of the circuit, while protection monitoring remains in place.
Ideal for all applications including high inertia loads such as large fans, positive displacement pumps, and heavy loaded conveyers
Accessories
- SSW07-08-HMI-LOC - Local keypad mounts on SSW07 Soft Starter

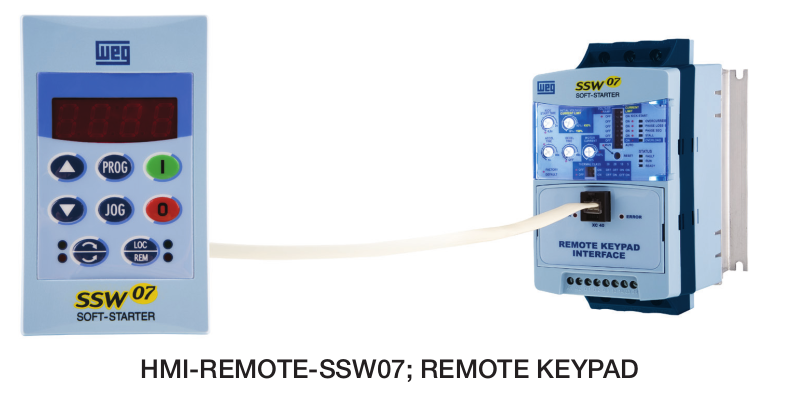

- SSW07-HMI-REM - Remote Keypad kit, includes Interface Module
- SSW07-HMI-REM-485 - Remote Keypad kit, includes RS-485 Comm. Card
- CAB-RS-1 - 3.3ft (1 meter) remote keypad cable
- CAB-RS-2 - 6.6ft (2 meter) remote keypad cable
- SSW05-07-08-CRS-3M - 9.9ft (3 meter) remote keypad cable
- SSW05-07-08-CRS-5M - 16ft (5 meter) remote keypad cable
- CAB-RS-7.5 - 25ft (7.5 meter) remote keypad cable
- CAB-RS-10 - 33ft (10 meter) remote keypad cable

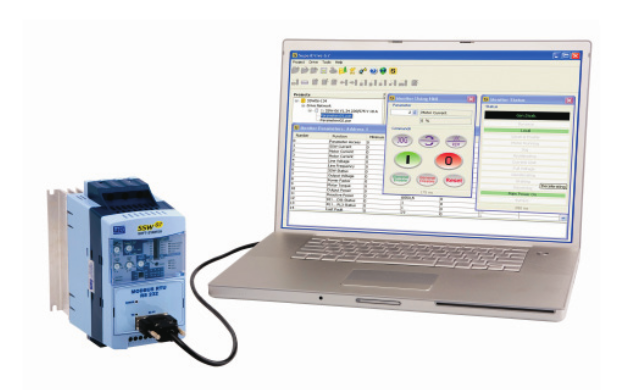

- SSW07-08-KRS-232 - RS-232 Communication kit
- SSW07-08-KRS-485 - RS-485 Communication kit
- CAB-COMM-3 - 3.3ft (1 meter) Cable for RS-232 (DB9-DB9)
- CAB-COMM-10 - 33ft (10 meter) Cable for RS-232 (DB9-DB9)
- KFB-DN-SSW07 - DeviceNet Communication kit with Remote HMI Connection
- SSW07-08-KPTC-MTR - PTC Temp. Monitoring Kit for motor
- KSDG2-SSW07 - SuperDrive G2 Kit
- SSW0708900-IP20-4D - IP20 Kit for M4 (Frame Size 4, 255 to 412 Amp)
Share
Specifications, Features and Documentation
-
Specs
Model: SSW070365T5SZ
P/N: 11250207
Amps: 365
Voltage: 220-575 VAC
Phase: Three-Phase
Dimensions:
L: 13 in
W: 9 in
D: 9.6 in
Weight: 28.2 lb
Enclosure Rating: IP00
Applications:
- General Purpose
- High Inertia Loads
- Large Fans
- Positive Displacement Pumps
-
Features
Universal Voltage: 220 - 575 VAC
Built-In Bypass Contactor
Integral Electronic Motor Protection
Built-In Thermal Relay
SuperDrive G2 Compatible
Conformal Coated Circuit Boards
Good for High Inertia Loads, Large Fans, Pumps
UL 508 and CE Certified
