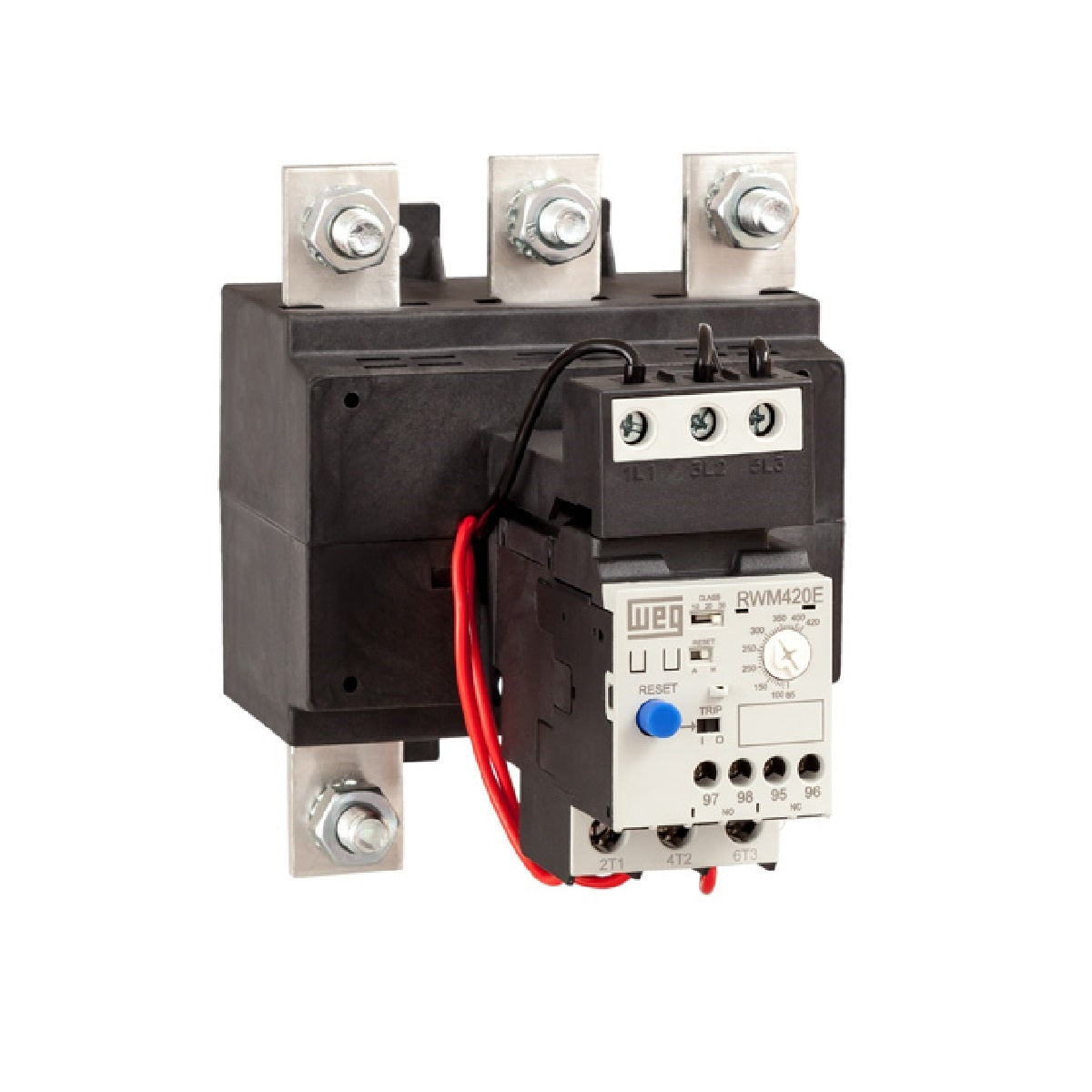

WEG RWM420E-3-A4U250 Electronic Overload Relay 50.0-250 Amp

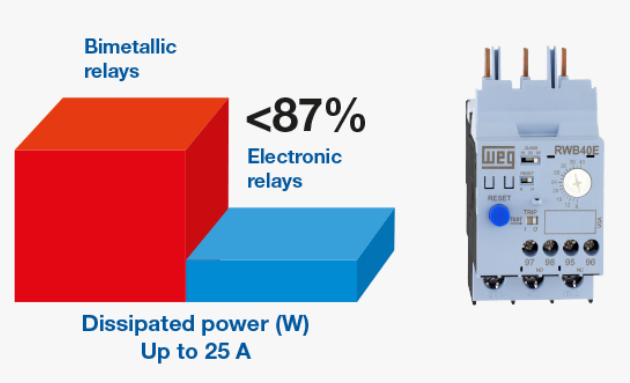

The Weg RW-E series of electronic overload relays are designed to protect expensive motors from damage due to overloads, phase loss, and current unblances. The Weg electronic relay is up to 87% more energy efficient compared to thermal overload relays, saving on both energy and cabinet ventilation demands. They also have a much larger settable current range as compared to the thermal overloads, thus reducing spare parts inventory. The entire current range from 0.4 to 820 amps is covered by just 4 RW-E products.

Specs

• Direct mounting to WEG CWM112, CWM150, CWM150N, CWM180, CWM250, CWM300, CWM300N, CWM400, CWM500 contactors
• Current Setting Range: 50.0-250 Amps
• Number of power poles: 3
• Auxiliary Contacts: 1 N.O., 1 N.C, isolated
• Auto/Manual Reset Button

Features

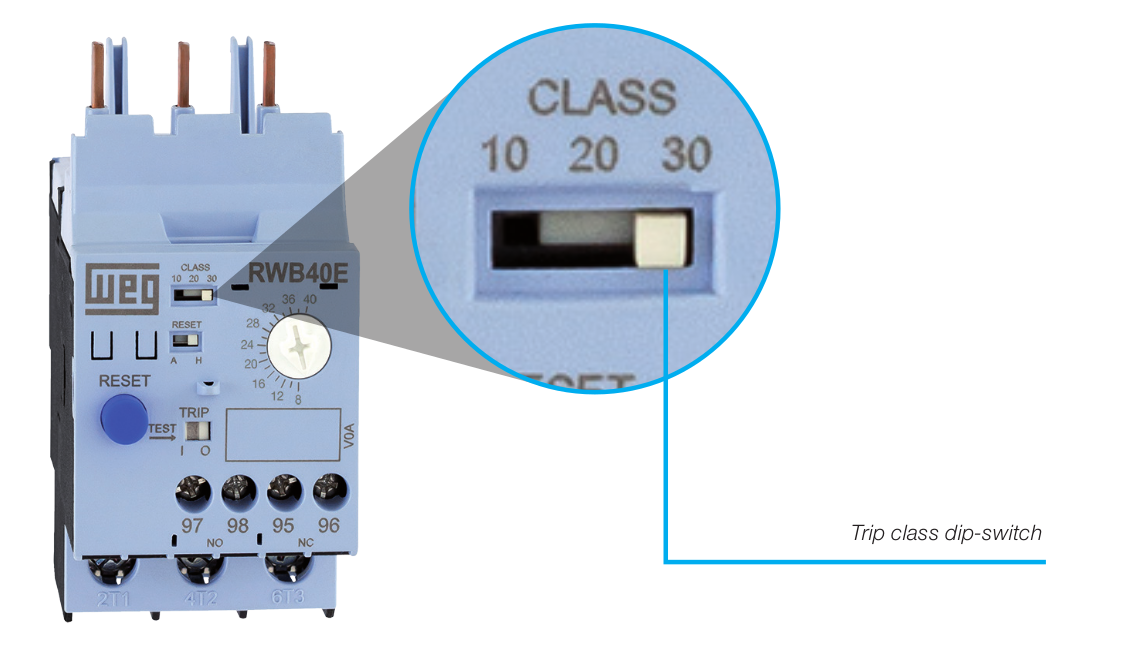

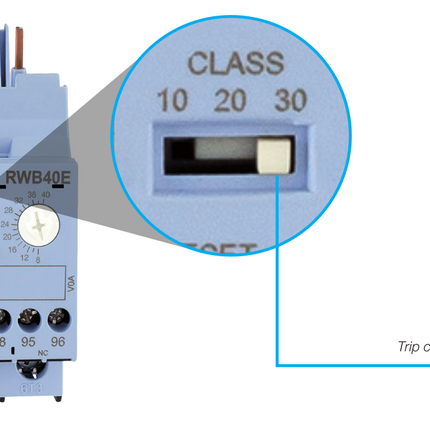

• Adjustable trip class 10,20 or 30
• Wide range settable current overload value
• Overload, phase-loss and current unbalance protection
• Red flag trip indication
• Isolated NO and NC auxiliary contacts
• Manual/Auto/Remote RESET button
• Low energy consumption and low power dissipation
• Direct mounting below Weg contactorsStand-alone mount accessory allows mounting anywhere
• Selectable Auto or Manual Reset

Documentation

• Weg Electronic Overload Flyer
• Weg Electronic Overload Catalog

Accessories

• GA317-1D: Overload Connector Links for CWM112/150 contactors
• GA317-2D: Overload Connector Links for CWM180 contactors
• GA317-3D: Overload Connector Links for CWM250/300 contactors
• GA317-10D: Overload Connector Links for CWM400 contactors
• IBRW317: Phase Barrier for RWM40E Overloads
• CSW-BHF437: Overload Relay Reset Button with adjustable shaft
