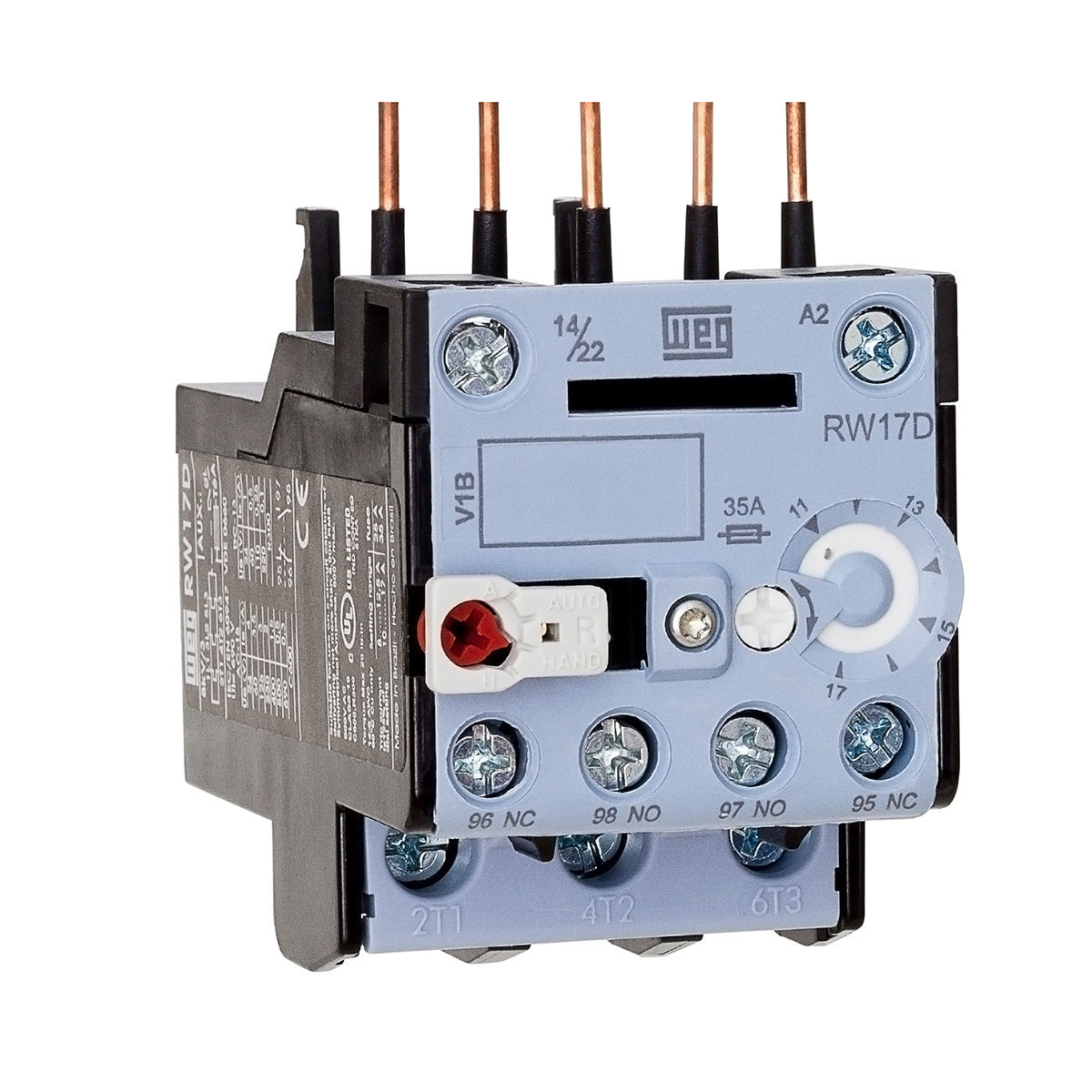

WEG RW17-1D3-D063 3 Pole Overload Relay 4.00-6.30 Amp

Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more.

Specs

• Direct mounting to WEG CWC07, CWC9, CWC12, CWC16, CWCA0 contactors
• Current Setting Range: 4.00-6.30 Amps
• Number of power poles: 3
• Auxiliary Contacts: 1 N.O., 1 N.C, isolated

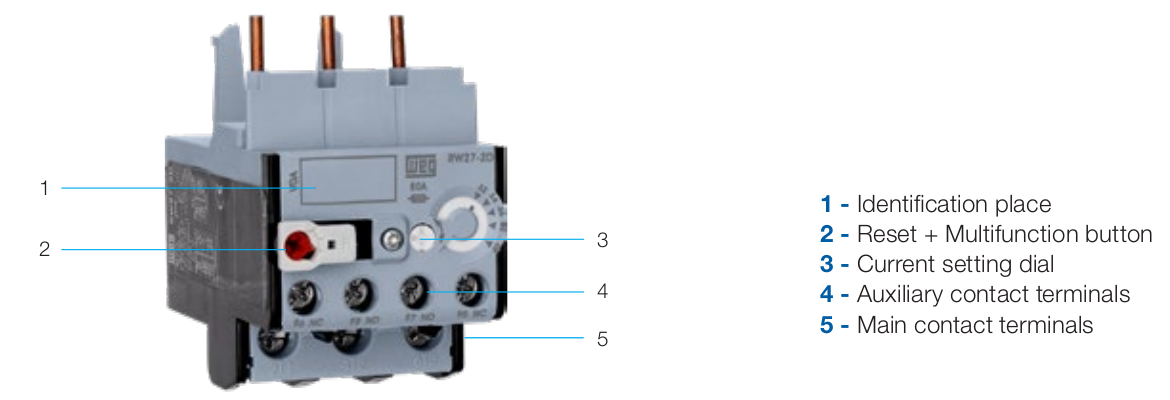

Features

• Overload, phase-loss and current unbalance protection
• Class 10 Trip Characteristics
• Isolated NO and NC auxiliary contacts
• Manual/Auto/Remote RESET button
• Direct mounting below Weg contactors
• Stand-Alone accessory allows mounting anywhere
• Selectable Auto or Manual Reset

Documentation

• Weg Thermal Overload Flyer
• Weg Overload Relay Catalog

Accessories

• CSW-BHF437: Overload Relay Reset Button with adjustable shaft
