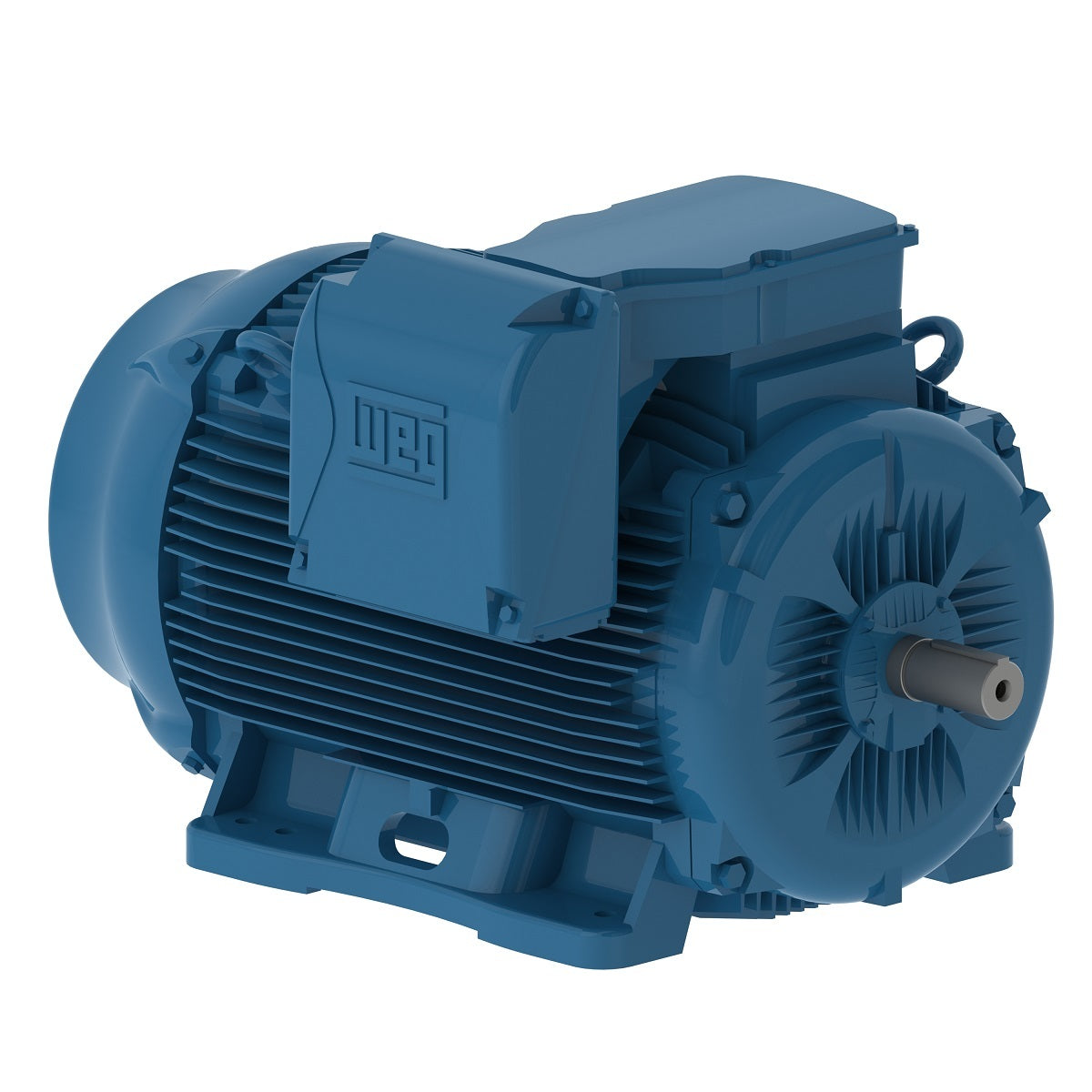

Weg 30012ET3G586/7-W22 300 HP 1200 RPM 586/7T TEFC Three-Phase Motor

VendorWEG
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress... Read more

SKU: Weg-30012ET3G586/7-W22
Barcode: 7891327429086

Normally ships within 24 hours

$44,301.00 $39,427.89

Description

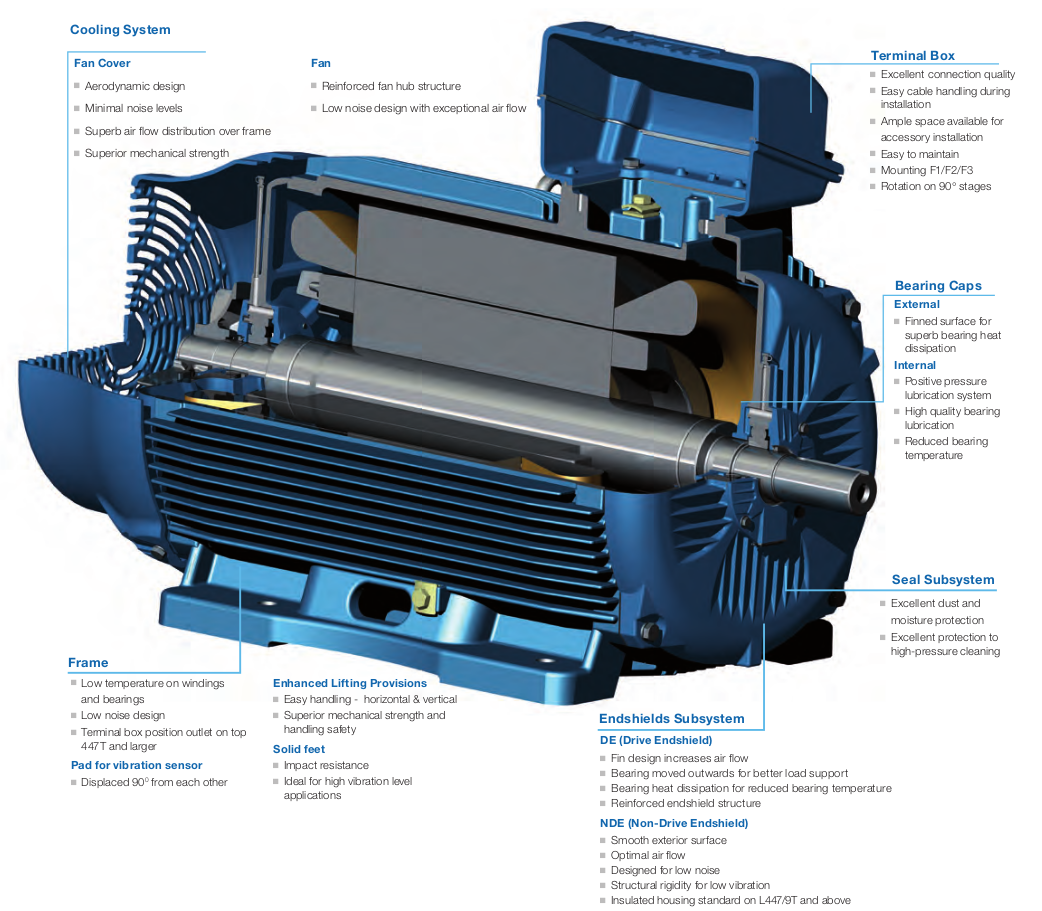

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.

Specifications

Model: 30012ET3G586/7-W22
Phase: Three-Phase
Power: 300 HP
Base RPM: 1200
Frame: 586/7T
Enclosure: TEFC
Enclosure Rating: IP55
Voltage: 460V PWS
Construction: Cast Iron
Weight: 3900.34 lb
Read more less
