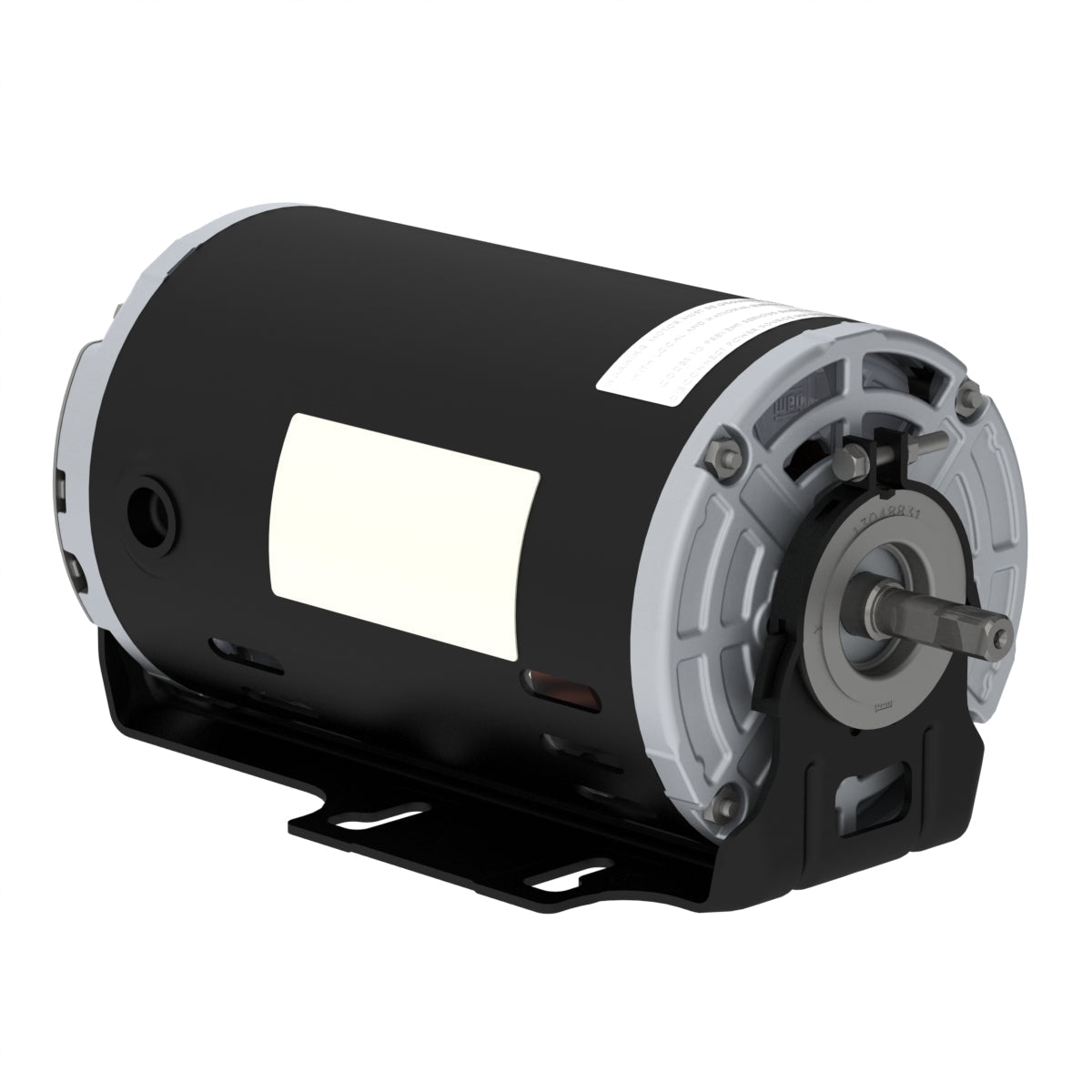

Weg .2518OS1ASPRBO48Z-S 0.25 HP 1800 RPM 48Z ODP Single-Phase Motor
Weg .2518OS1ASPRBO48Z-S 0.25 HP 1800 RPM 48Z ODP Single-Phase Motor
Couldn't load pickup availability
Weg rolled steel Open Drip Proof (ODP) Single-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. The open enclosure offers a light-weight, quite and cost-effective motor with IP 21 rated protection.The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
This model has a resilient (cradle) base with rubber mounting rings to dampen vibrations.
This model has resetable overload for motor protection.
Share
Specifications, Features and Documentation
-
Specs
Model: .2518OS1ASPRBO48Z-S
Phase: Single-Phase
Power: 0.25 HP
RPM: 1800
Frame: 48Z
Enclosure: ODP
Voltage: 115V
Bearings: Ball Bearing
Weight: 18.65 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
-
