Description

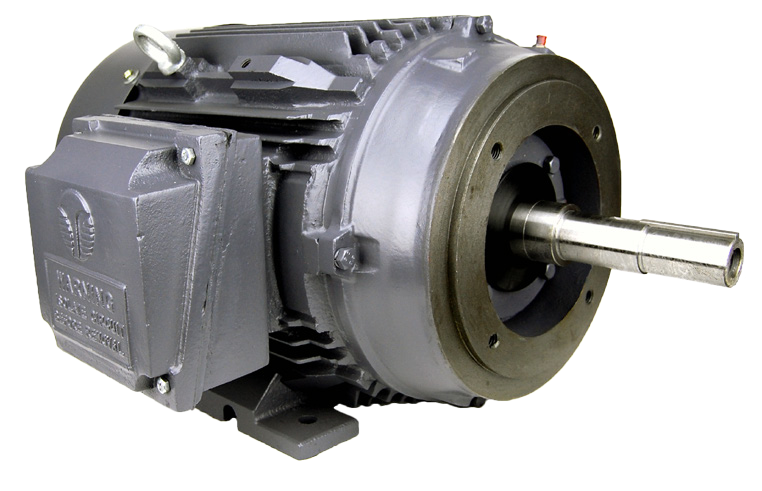

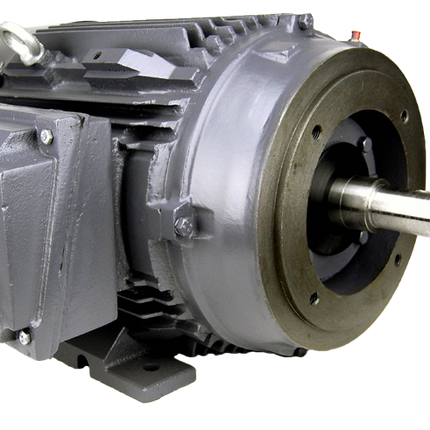

Techtop JP / JM motor are perfect for pump applications, with standard frame sizes to match close-coupled pumps. Available in light-weight aluminum frames up to 15 HP, and cast iron from 15 HP and up. Techtop motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and inverter-duty rated for use with variable frequency drives (VFDs). Can be field-configurable for the terminal box on the left (F1 - standard, looking at shaft-end), or F2 (right) or F3 (top). A service factor of 1.15 along with IP 55 rating and 300 series stainless steel shaft makes these motors an excellent value. Comes with a 3-year / 36-month warranty.

• Super Premium Efficiency
• Drains at 12,3,6, and 9 o-clock positions
• Viton Double-Lip Oil Seals
• Class H Insulation
• Class H Leads
• Arc Arrestor Shaft Grounding Brush Installed
• VFD Ready per MG1 Part 31
• IP55 Ingress Porotection
• 36 Month Warranty

Specifications

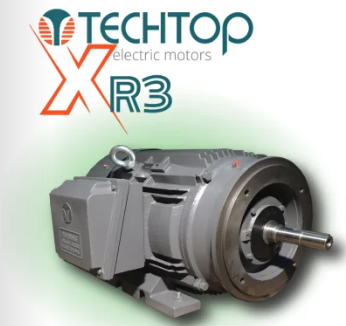

• Model: XR3-CI-TF-324JP-4-BR-D-40
• Phase: Three-Phase
• Power: 40 HP
• Base RPM: 1800
• Frame: 324JP
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 208-230/460 VAC
