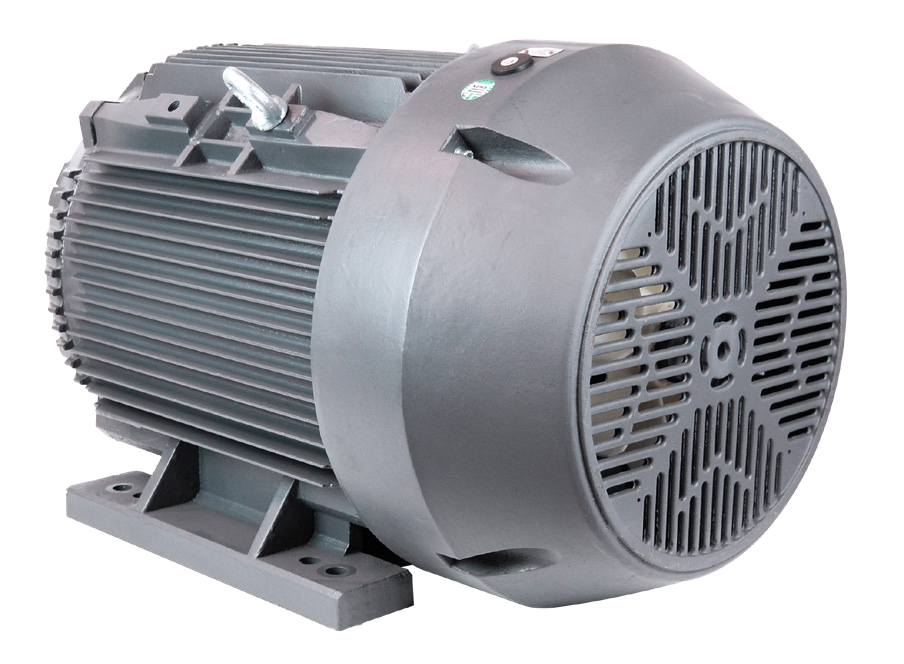

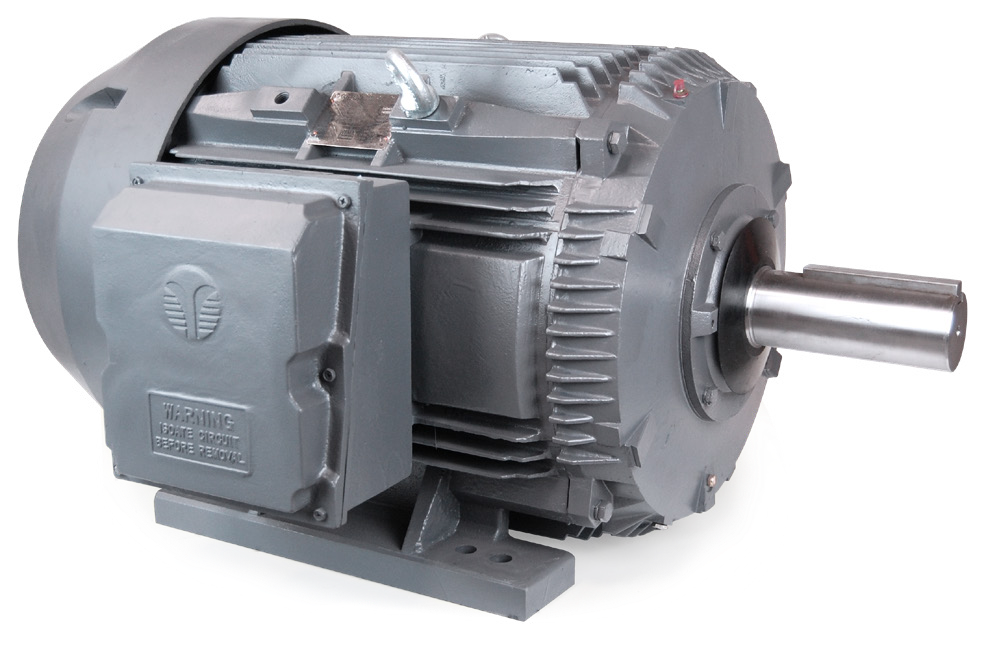

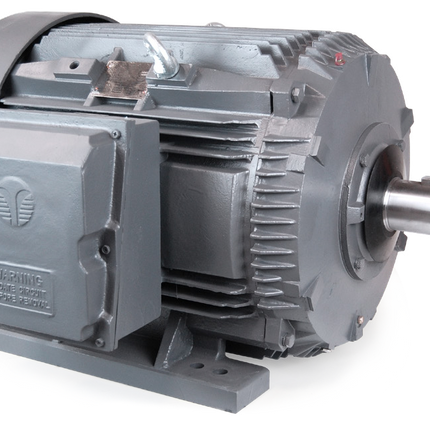

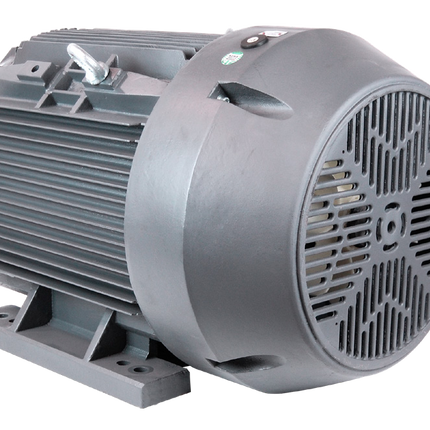

Techtop OX3-CI-TF-445T-4-RR-E-150 TEFC 150 HP 1800 445T Three-Phase Crusher Duty Motor
Techtop OX3-CI-TF-445T-4-RR-E-150 TEFC 150 HP 1800 445T Three-Phase Crusher Duty Motor
Regular price
$12,204.75
Regular price
Sale price
$12,204.75
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Techtop Crusher motors are specifically built for harsh rock crushing environments. Design features include oversized drive end roller bearings for belt side-loading of shaft, 4140 Carbon Steel Shaft, and NEMA Design C for high starting torque.
Spec Sheets
3D Models
Share
Specifications, Features and Documentation
-
Specs
Model: OX3-CI-TF-445T-4-RR-E-150
Phase: Three-Phase
Power: 150 HP
RPM: 1800
Frame: 445T
Enclosure: TEFC
Voltage: 460V
FL Amps:
Bearings: Regreasable Roller Bearing
Weight: 1632 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Crusher
-
Features
- NEMA Premium Efficiency - Design C
- 6 Lead - 460V
- Drive End (DE) Roller Bearing
- Oversized Bearings on DE and ODE
- 1.15 Service Factor
- 40°C Ambient Temp Rating
- VPI Lap Wound Coils
- Lifting Strap Included
- Wye-Delta Start Wound
- 4140 Carbon Steel Shaft
- Zerk Fitting with Regreaseable Bearings
- Full Cast Iron Construction
- Double Lip Oil seals on Both Ends
- Rubber Slinger
- Conduit Box 90° Rotatable
- F1 to F2 Field Convertable Box Location
- Class F Insulation with Class H Stator
- EISA Compliant
- 24 Month Warranty
