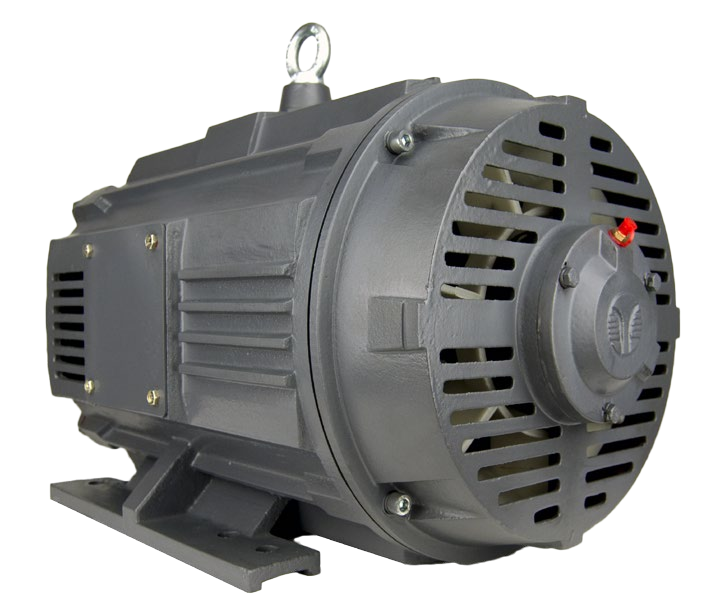

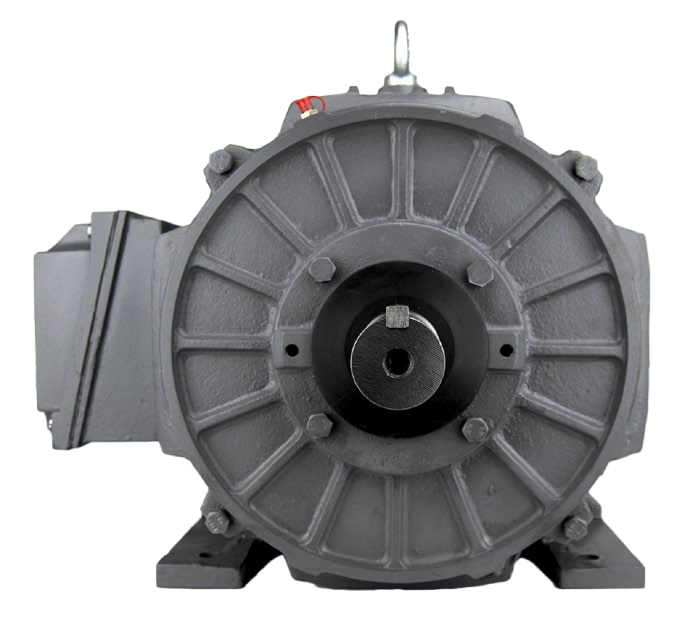

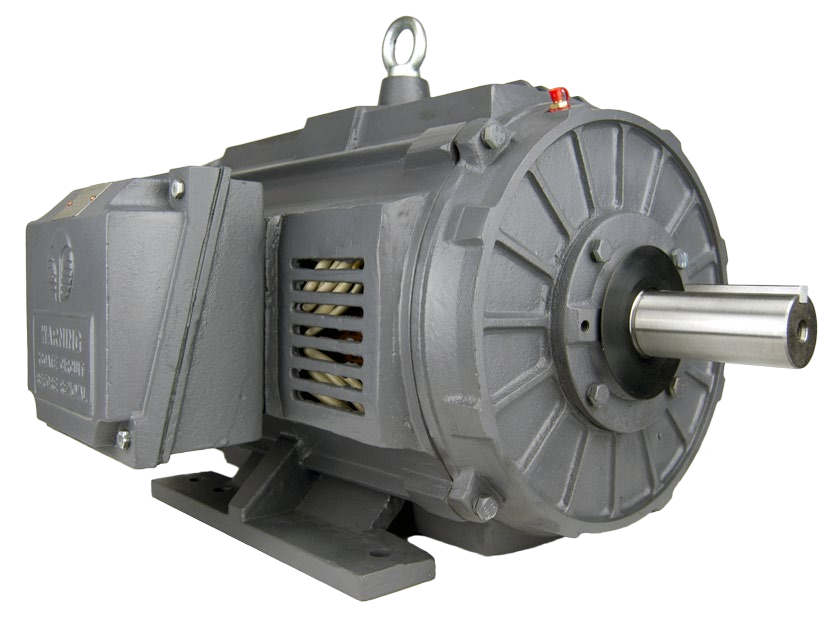

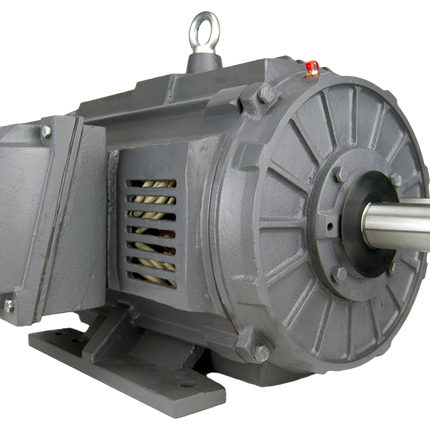

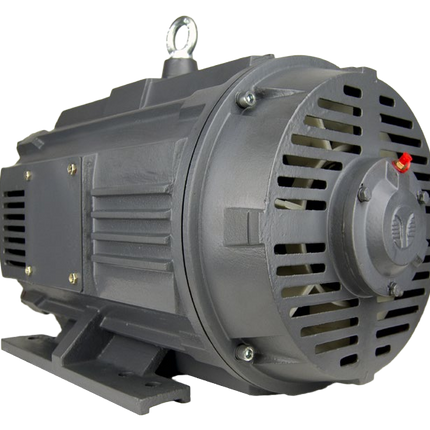

Techtop GR3-RS-OP-143T-4-B-D-1 ODP 1 HP 1800 RPM 143T 208-230/460V Three-Phase Motor
Techtop GR3-RS-OP-143T-4-B-D-1 ODP 1 HP 1800 RPM 143T 208-230/460V Three-Phase Motor
Regular price
$297.99
Regular price
Sale price
$297.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Techtop Rolled Steel Open Drip-proof motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and compliant for use with variable frequency drives (VFDs). The terminal box can be rotated 90-degrees. A service factor of 1.25 along with VPI tropicalization winding makes these motors an excellent value. Comes with a 3-year / 36-month warranty.
Spec Sheets
3D Models
Share
Specifications, Features and Documentation
-
Specs
Model: GR3-RS-OP-143T-4-B-D-1
Phase: Three-Phase
Power: 1 HP
RPM: 1800
Frame: 143T
Enclosure: ODP
Voltage: 208-230/460V
FL Amps:
Bearings: Shielded Ball Bearing
Weight: 112 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- NEMA Premium Efficiency
- MG1 Part 31 Inverter Rated 15:1 Constant Torque
- IP 23 Rated 40°C Ambient
- Double-Lip Oil Seals on Both Ends
- 1.25 SF up to 50 HP, 1.15 on larger
- VPI Winding with Tropicalization Protection
- 1045 Steel Shaft through 326T, 4140 on 360T and up
- Zerk Regreasable Bearigns on Frames 254T and larger
- Nipple Seals between Conduit Box and Body
- Rubber Slinger
- Conduit Box 90° rotatable
- Class H Insulation with Class F Stator
- C Flanges Available
- 36 Month Warranty from Date of Purchase
