Techtop

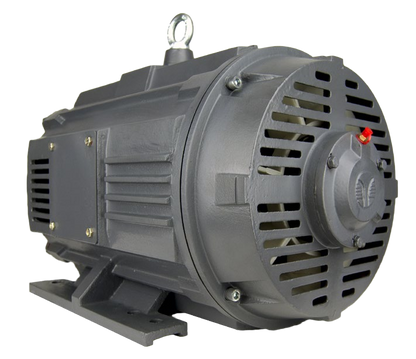

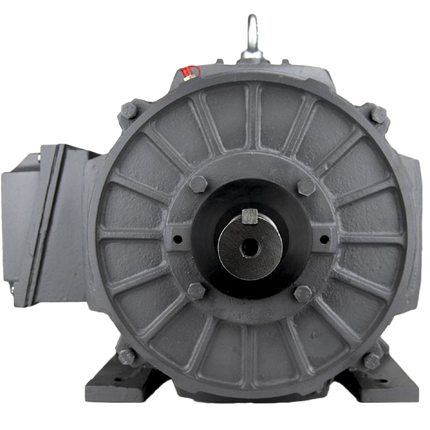

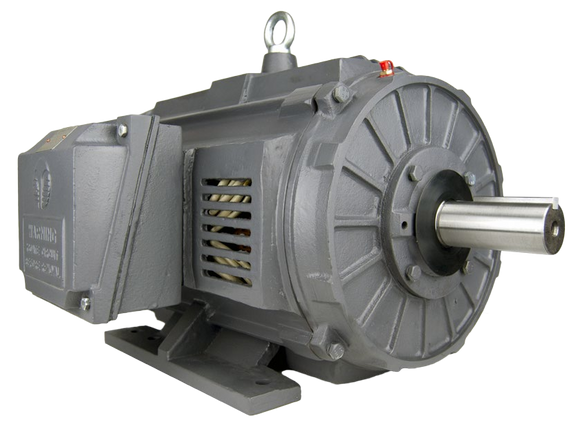

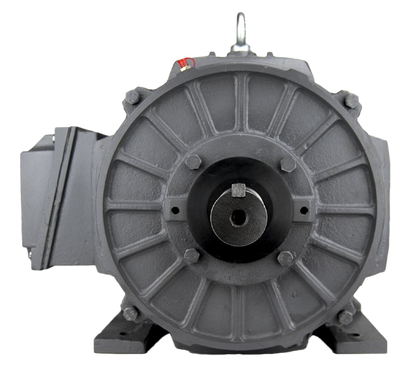

Techtop GR3-CI-OP-444T-4-RR-E-150 ODP 150 HP 1800 RPM 444T 3-Phase Motor

Techtop GR3-CI-OP-444T-4-RR-E-150 ODP 150 HP 1800 RPM 444T 3-Phase Motor

Regular price $9,771.43
Regular price Sale price $9,771.43
Sale Sold out
Shipping calculated at checkout.

Techtop Cast Iron motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and compliant for use with variable frequency drives (VFDs). The terminal box can be rotated 90-degrees. A service factor of 1.25 along with IP23 rating and VPI tropicalization winding makes these motors an excellent value. Comes with a 3-year / 36-month warranty.

Product Specs

hp 150
rpm 1800
phase 3
model GR3-CI-OP-444T-4-RR-E-150
frame 444T
volts 208-230/460 VAC
enclosure ODP
poles 4
Features
  • NEMA Premium Energy Efficiency Design
  • MG1 Part 31 Compliant for VFD use
  • IP 23 Rated - 40C Ambient Rating
  • 1045 Steel Shaft (4140 on 360T frame and up)
  • 1.25 Service Factor to 50 HP (1.15 for larger frames)
  • Zerk fitting regreasable bearings on 254T frame and larger
  • Rotatable conduit box
  • VPI winding
  • Interchangable C & D Flanges Available
  • 36 Month Warranty
