Description

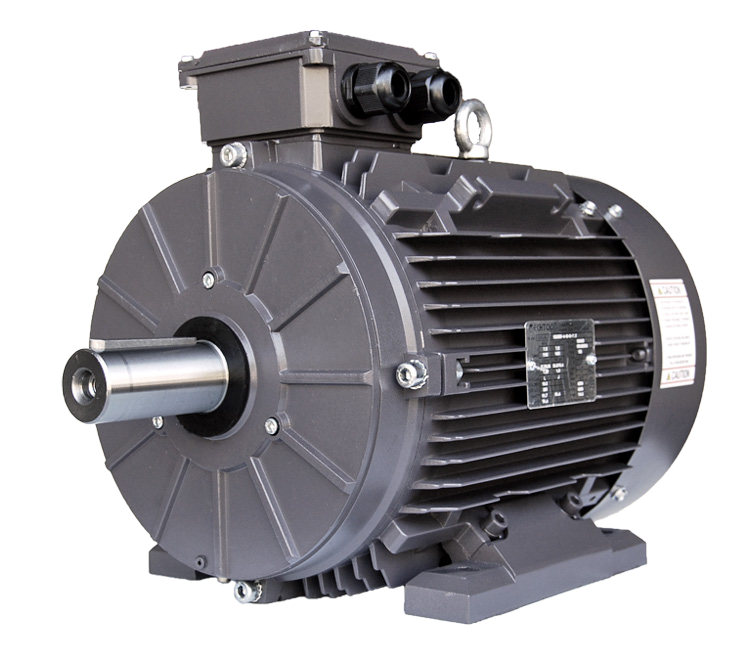

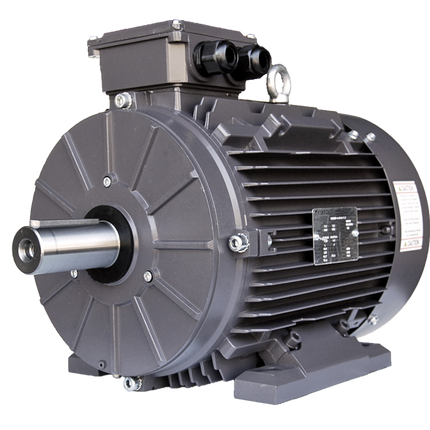

Techtop IEC Motors are high-quality motors with features not found on other brands, such as IP55 rated ingress protection, brass condensation drains, and Class 1, Div 2 Groups A,B,C & D Compliant rating. Designed to meet IEC-standards metric specifications, with a 36 month 3-year warranty.

Spec Sheets

200/400V-60Hz

230/460V-60Hz

190/380V-50Hz

3D Models

GR-63B3-AL-TF.step

Techtop IEC Motor Line Card

Specifications

• Model: GR3-AL-TF-63B3-2-B-D-.25
• Phase: Three-Phase
• Power: 0.25 HP (0.19 kW)
• Base RPM: 3600
• Frame: 63B3
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 208-230/460V
• Construction: Aluminum
• Weight: 8 lb
