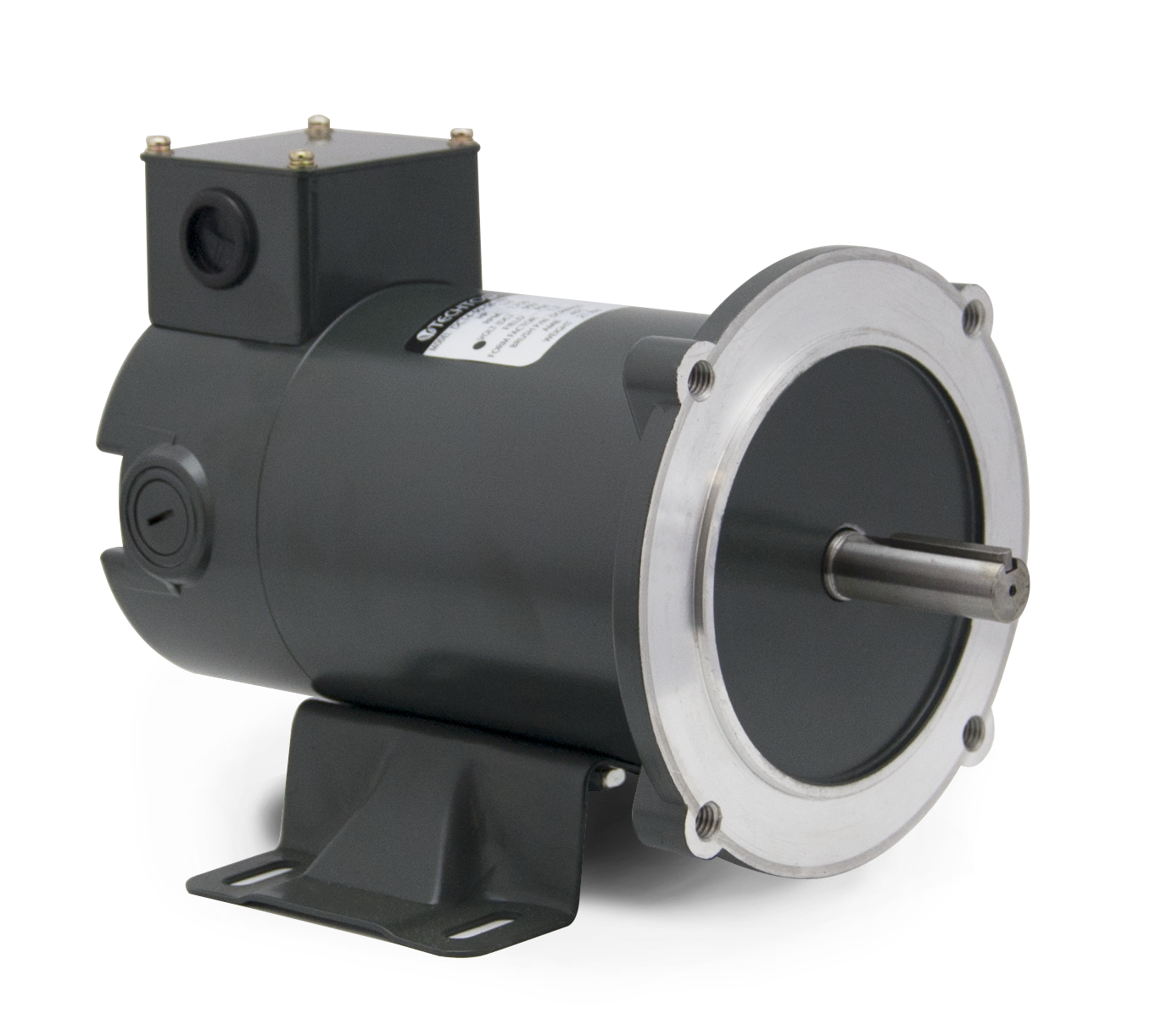

Techtop DC112-180-145-FC TEFC 1.5 HP 1800 RPM 145TC 0 - 180 VDC DC Motor

Techtop DC112-180-145-FC TEFC 1.5 HP 1800 RPM 145TC 0 - 180 VDC DC Motor

$900.29
$900.29
Sale Sold out
Shipping calculated at checkout.

Techtop's new line of permanent magnet DC motors offer a quality DC motor at a good price point. Designed for use with both direct DC power and SCR and PWM type drives. Ideal applications include conveyors, turntables, packaging, or anywhere simple variable speed control is needed. Includes a 1 year / 12 month warranty.

Spec Sheets

180VDC

3D Models

None.step

View full details

Specifications, Features and Documentation

  • Specs

    Model: DC112-180-145-FC

    Phase: DC

    Power: 1.5 HP

    RPM: 1800

    Frame: 145TC

    Enclosure: TEFC

    Voltage: 0 - 180 VDC

    FL Amps:

    Bearings: Shielded Ball Bearings

    Weight: 45 lb

    Efficiency: Standard Efficiency

    Construction: Rolled Steel

    Application:

    • General Purpose

  • Features

    • SCR Rated
    • 20:1 Constant Torque Speed Range
    • 1.0 Service Factor
    • Bolt-on Removable Base
    • 1045 Steel Shaft
    • Corrosion Resistant Hardware
    • Ambient Temp up to 40°C
    • Rated up to 3300 ft. (1000 MASL)
    • Class F Insulation
    • 12 Month Warranty

  • More Documentation

    Techtop DC Motors Line Card
