Description

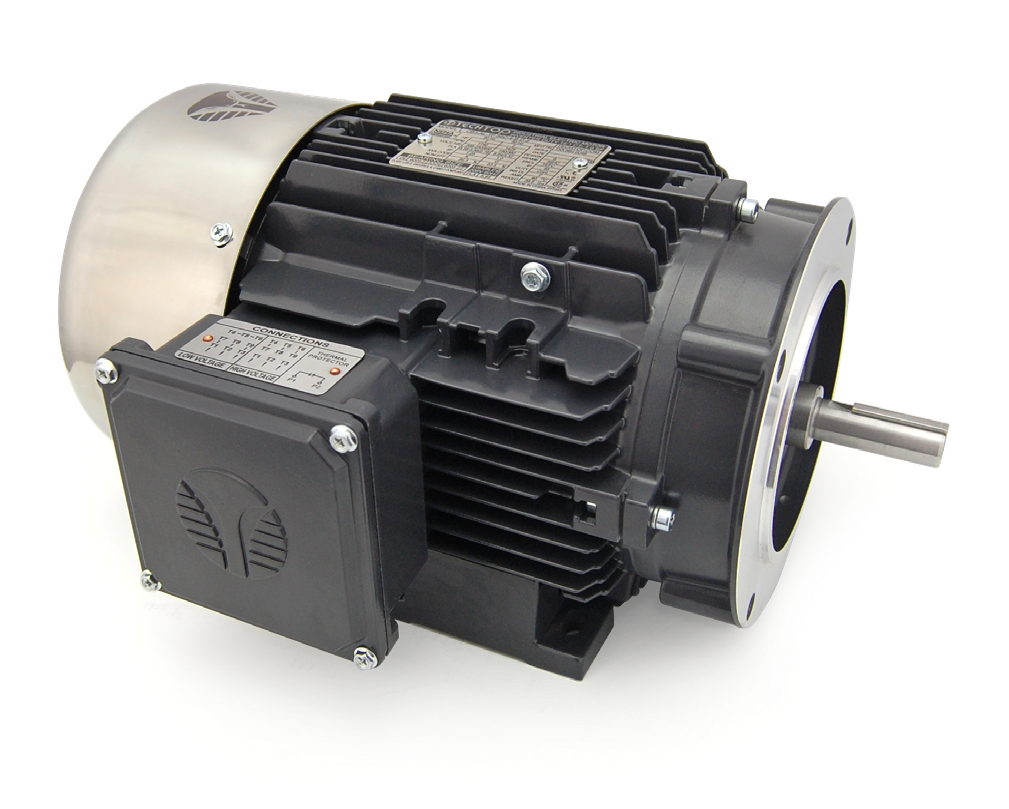

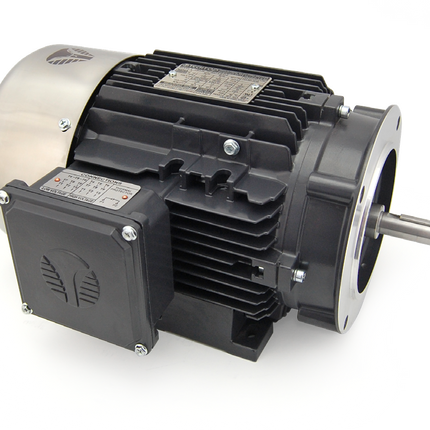

Techtop's Cobra line are top of the line aluminum 56C frame motors with quality features not found on other brands, including stainless steel fan cover and nameplate, epoxy-potted conduit box entry, and installed shaft grounding brush, making them ideal for VFD use. See the brochure below for all the details. Includes a 36-month warranty from purchase date.

Spec Sheets

200/400V-60Hz

230/460V-60Hz

190/380V-50Hz

3D Models

CB-56C-AL-TF.step

Specifications

• Model: CB3-AL-TF-56C-2-B-D-.5
• Phase: Three-Phase
• Power: 0.5 HP
• Base RPM: 3600
• Frame: 56C
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 208-230/460V
• Construction: Aluminum
• Weight: 16 lb
• Read more less
