TECHTOP

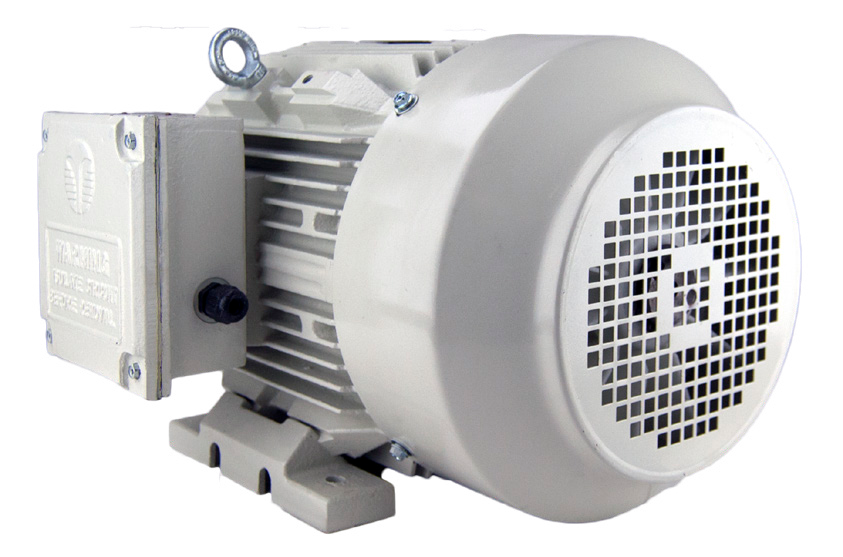

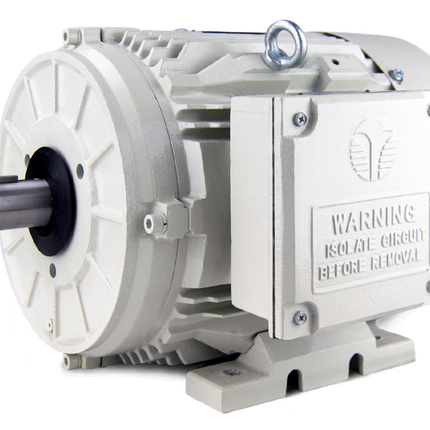

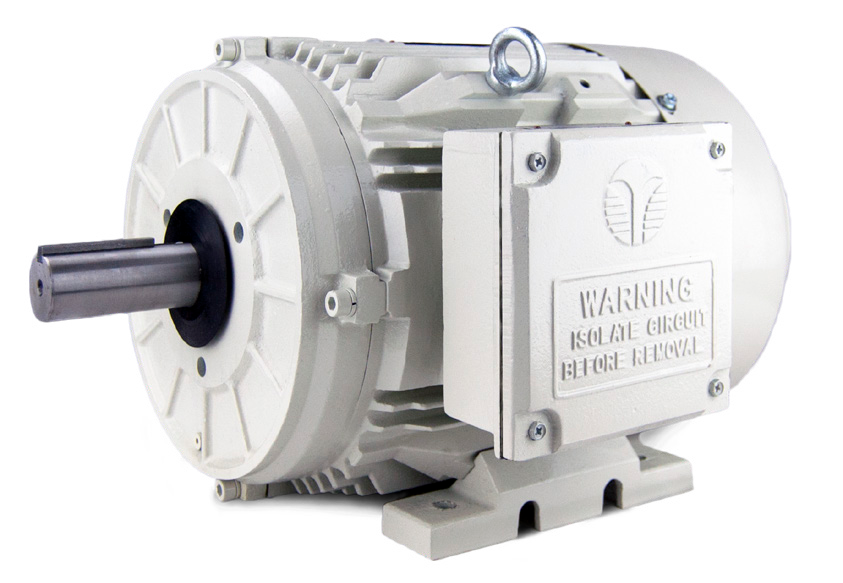

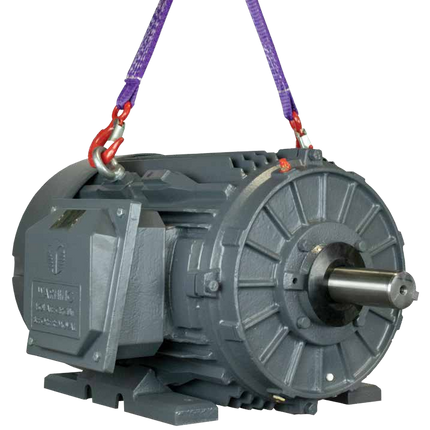

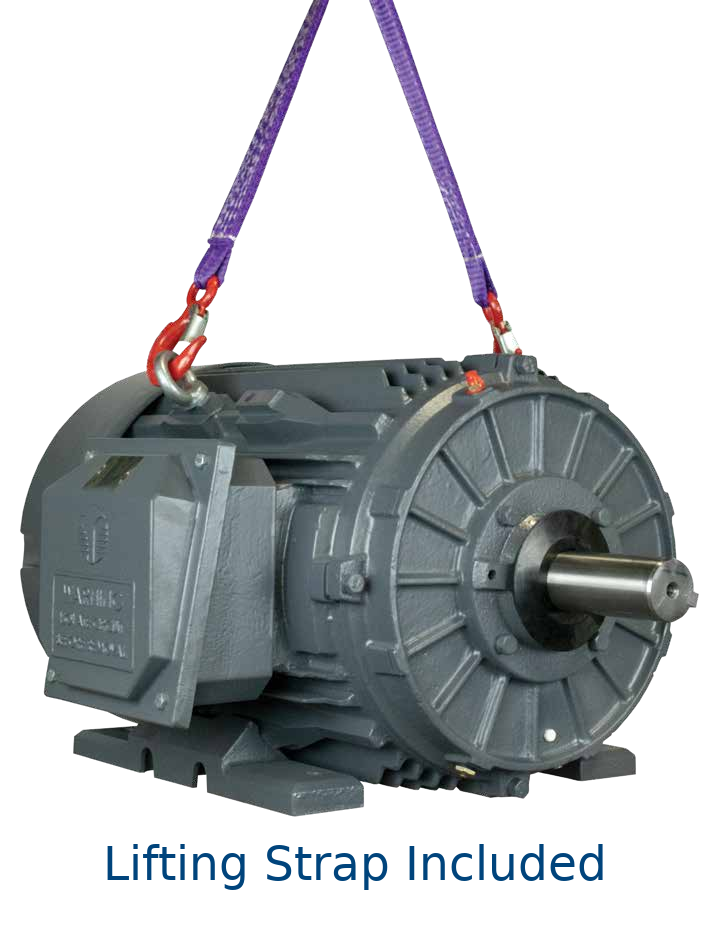

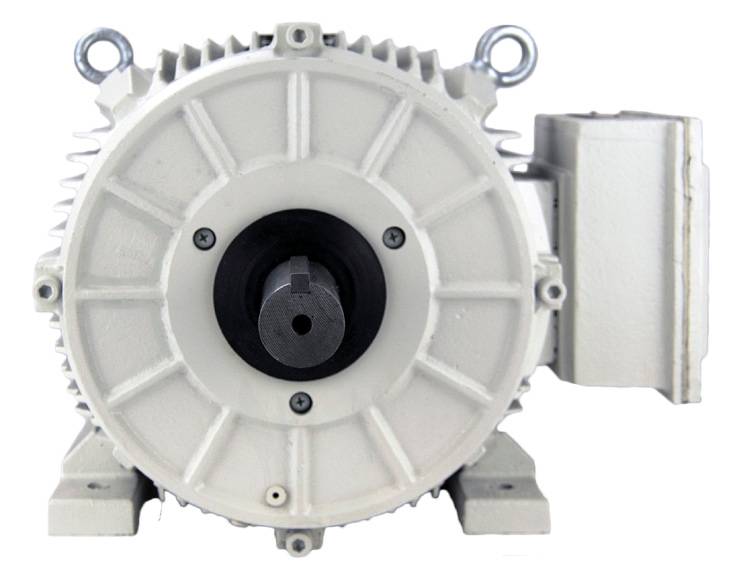

Techtop BK3-CI-TF-445T-6-RR-G-125 TEFC 125 HP 1200 445T Oil Pump Motor
Techtop BK3-CI-TF-445T-6-RR-G-125 TEFC 125 HP 1200 445T Oil Pump Motor
Regular price
$9,468.75
Regular price
Sale price
$9,468.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop Oil Pumper motors are engineered specifically for high inertia starting loads, such as oil pumps and cranes. NEMA Design code 'D' allow for higher 'slip' while boosting starting torque.
Share
Specifications, Features and Documentation
-
Specs
Model: BK3-CI-TF-445T-6-RR-G-125
Phase: Three-Phase
Power: 125 HP
RPM: 1200
Frame: 445T
Enclosure: TEFC
Voltage: 230/460/796 VAC
Bearings:
Weight: 1796 lb
Efficiency:
Construction:
Application:
- Oil Pump
-
Features
- 5%-8% Slip NEMA Design D
- Double Lip Oil Seals on Both Ends
- Cast Iron Terminal Box with Gasket
- Roller Bearing on 404T and Above
- TEFC Cast Iron Frame
- Corrosion Resistant Hardware
- T-Box Mount Position Convertable F1,F2,F3 up to 326T
- Class F Insulation , Class H Stator
- VPI and Tropicalization on Stator Winding
- One-Way Brass Condensation Drains
- 24 Month Warranty
