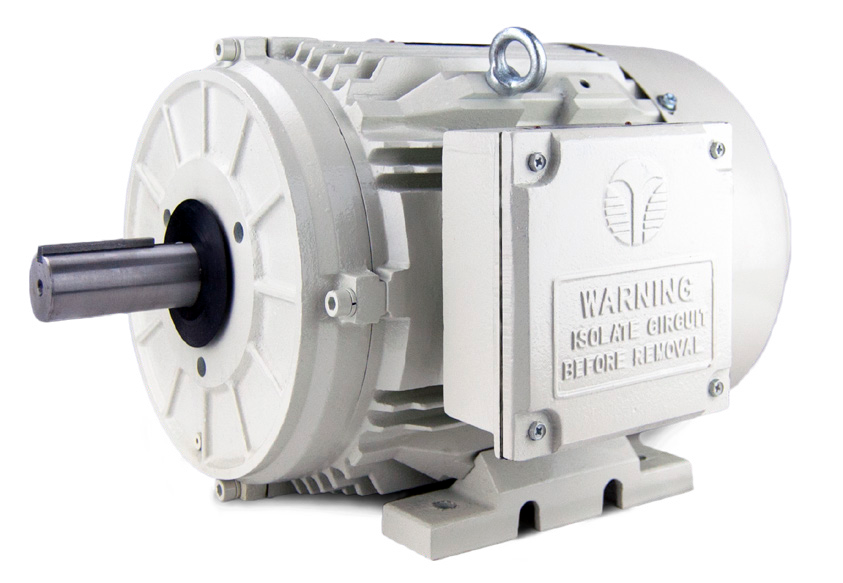

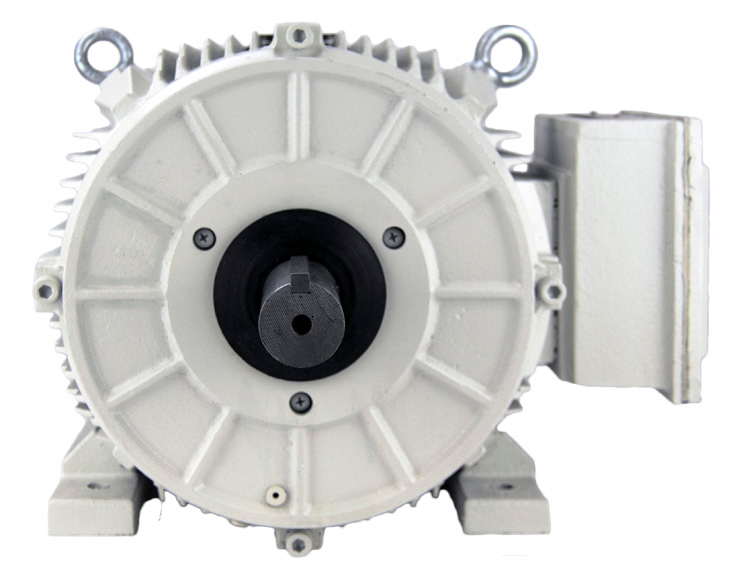

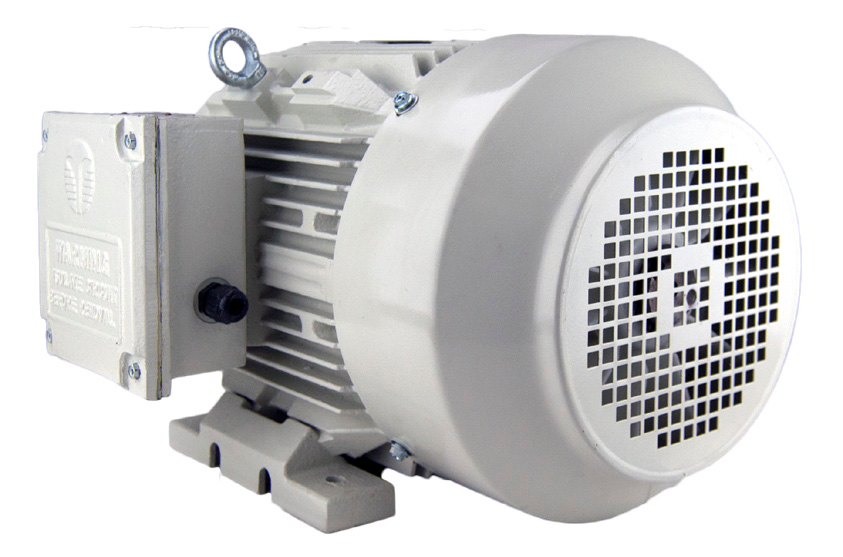

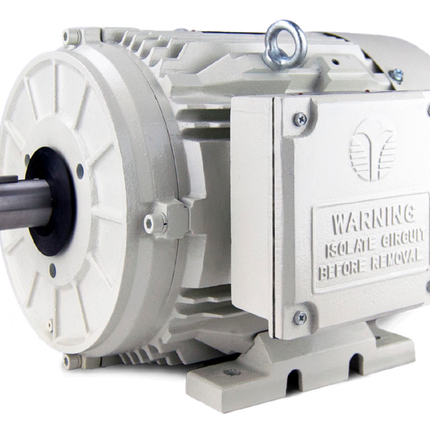

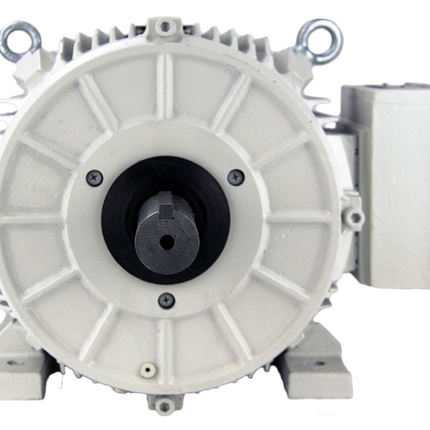

Techtop BK3-CI-TF-284T-6-BR-G-15 TEFC 15 HP 1200 284T Oil Pump Motor
Techtop BK3-CI-TF-284T-6-BR-G-15 TEFC 15 HP 1200 284T Oil Pump Motor
Regular price
$1,610.00
Regular price
Sale price
$1,610.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop Oil Pumper motors are engineered specifically for high inertia starting loads, such as oil pumps and cranes. NEMA Design code 'D' allow for higher 'slip' while boosting starting torque.
Spec Sheets
3D Models
Share




Specifications, Features and Documentation
-
Specs
Model: BK3-CI-TF-284T-6-BR-G-15
Phase: Three-Phase
Power: 15 HP
RPM: 1200
Frame: 284T
Enclosure: TEFC
Voltage: 230/460/796V
FL Amps:
Bearings: Regreasable Ball Bearing
Weight: 301 lb
Efficiency: Standard Efficiency
Construction: Cast Iron
Application:
- Oil Pump
-
Features
- 5%-8% Slip NEMA Design D
- Double Lip Oil Seals on Both Ends
- Cast Iron Terminal Box with Gasket
- Roller Bearing on 404T and Above
- TEFC Cast Iron Frame
- Corrosion Resistant Hardware
- T-Box Mount Position Convertable F1,F2,F3 up to 326T
- Class F Insulation , Class H Stator
- VPI and Tropicalization on Stator Winding
- One-Way Brass Condensation Drains
- 24 Month Warranty
