Description

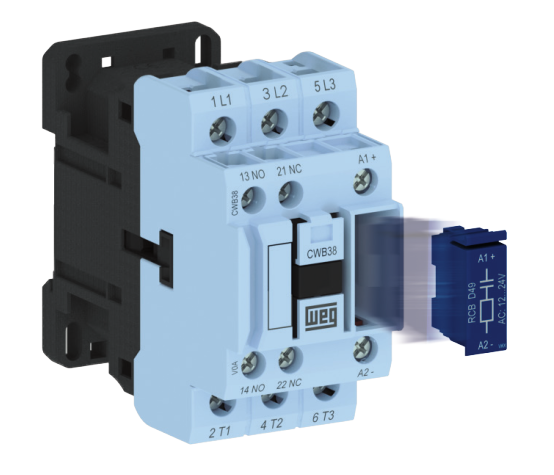

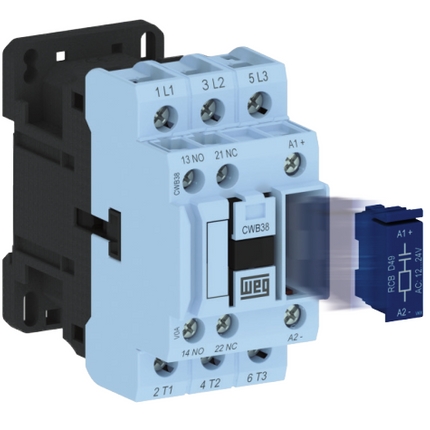

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means.

Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in.

Catalog No.	VRB E41
Suppresor Type	Varistor
Voltage	277-380VAC, 300-510VDC

Compatible with all Weg CWB series contactors.

Documentation

Product form

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or... Read more

SKU: Weg-VRB-E41
Barcode: 7909158260591

$13.83

Description

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means.

Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in.

Catalog No.	VRB E41
Suppresor Type	Varistor
Voltage	277-380VAC, 300-510VDC

Compatible with all Weg CWB series contactors.
