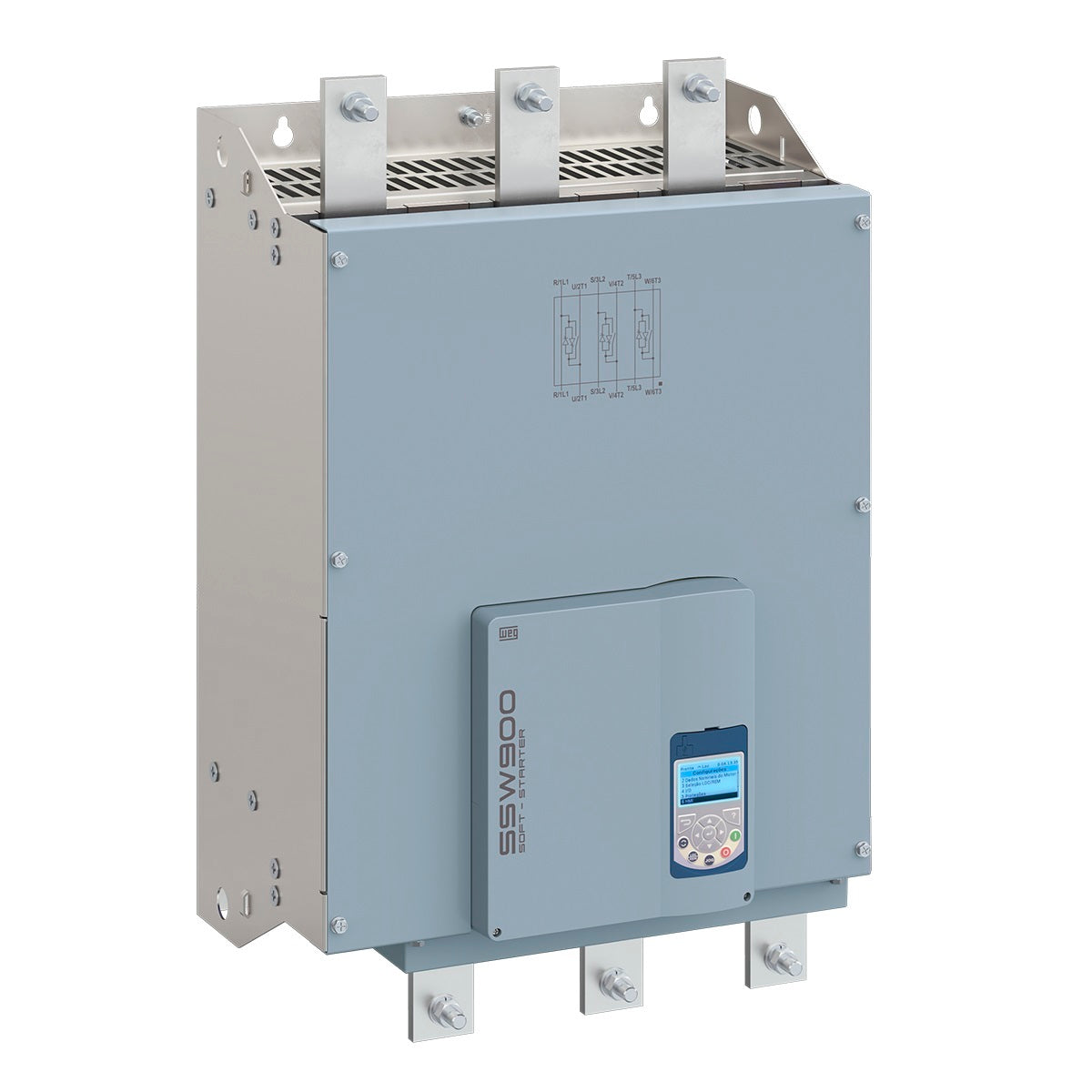

Weg SSW900F0820T5E4B Soft Start 820 Amp 220-575 VAC VAC
Weg SSW900F0820T5E4B Soft Start 820 Amp 220-575 VAC VAC
Regular price
$10,895.26
Regular price
$17,573.00
Sale price
$10,895.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The SSW900 is WEG's next-generation reduced voltage soft starter (RVSS). Advanced features include removable multi-line text display and keypad, event logging, wireless bluetooth supporting WEG's WPS Phone app, built-in bypass contactor, and complete motor protection.
Accessories
- SSW900-HMI-BLT - Standard Bluetooth Keypad
- SSW900-KMD-CBxx - Remote Keypad Frame with cable (xx is length in meters)
- SSW900-CDN-N - DeviceNet Anybus plug-in Module
- SSW900-CETH-IP-N - Ethernet/IP Anybus plug-in Module
- SSW900-CMB-TCP-N - Modbus-TCP Anybus plug-in Module
- SSW900-CPDP-N - Profibus DP Anybus plug-in Module
- SSW900-CPN-IO-N - Profinet IO Anybus plug-in Module
- SSW900-CRS485-W - RS485 plug-in Module
- SSW900-CAN-W - CanOpen and DeviceNet plug-in Module
- SSW900-CETH-W - Ethernet/IP plug-in Module
- SSW900-PT100-W - PT100 temperature transducer plug-in Module
- SSW900-KECA-xx - External Current Transformer (xx is current in Amps)
- ADP-x-y - SSW6 Frame x to SSW900 Frame y adapter plate
- SSW0708900-IP20-4D - IP20 Kit for M4 (Frame Size 4, 255 to 412 Amp)
- SSW900-6BAR-F - 6 busbar for External Bypass Connection Frame F
- SSW900-3BAR-F-L - 3 busbars for Lugs Frame F
- SSW900-3BAR-F-L45S - 3 45° angled down busbars for Lugs Frame F
- SSW900-3BAR-F-L45L - 3 45° angled up busbars for Lugs Frame F
- ADP-7-F - SSW06 Frame 7 to SSW900 Frame F Adapter plate
- ADP-6-EF - SSW06 Frame 6 to SSW900 Frame E,F Adapter plate
Share
Specifications, Features and Documentation
-
Specs
Model: SSW900F0820T5E4B
P/N:
Amps: 820
Voltage: 220-575 VAC
Phase: Three-Phase
Control Voltage: 220-240 VAC
Dimensions:
L: 29.9 in
W: 18.3 in
D: 12.4 in
Weight: 166 lb
Enclosure Rating: IP00
Applications:
- General Purpose
- High Inertia Loads
- Large Fans
- Positive Displacement Pumps
-

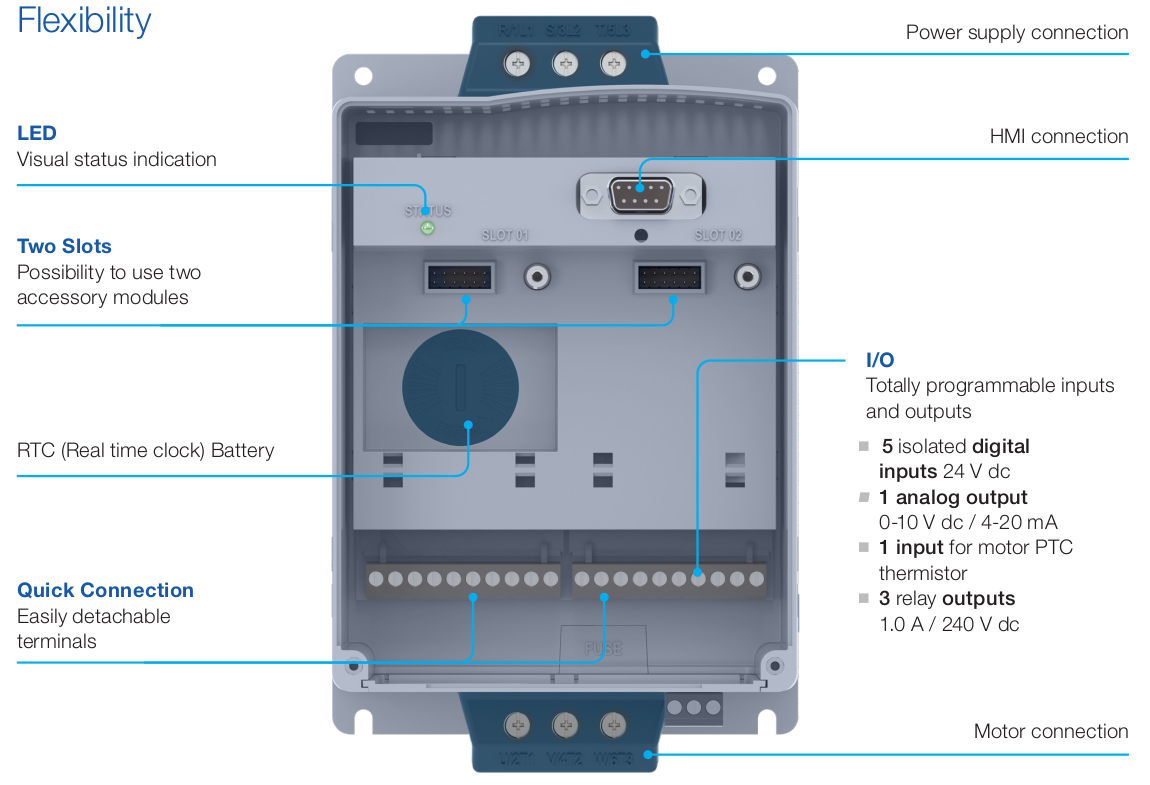

Features
- Universal Voltage: 220 - 575 VAC 3-Phase
- Built-in AC1 Bypass Contactor
- Conformal Coated Circuit Boards

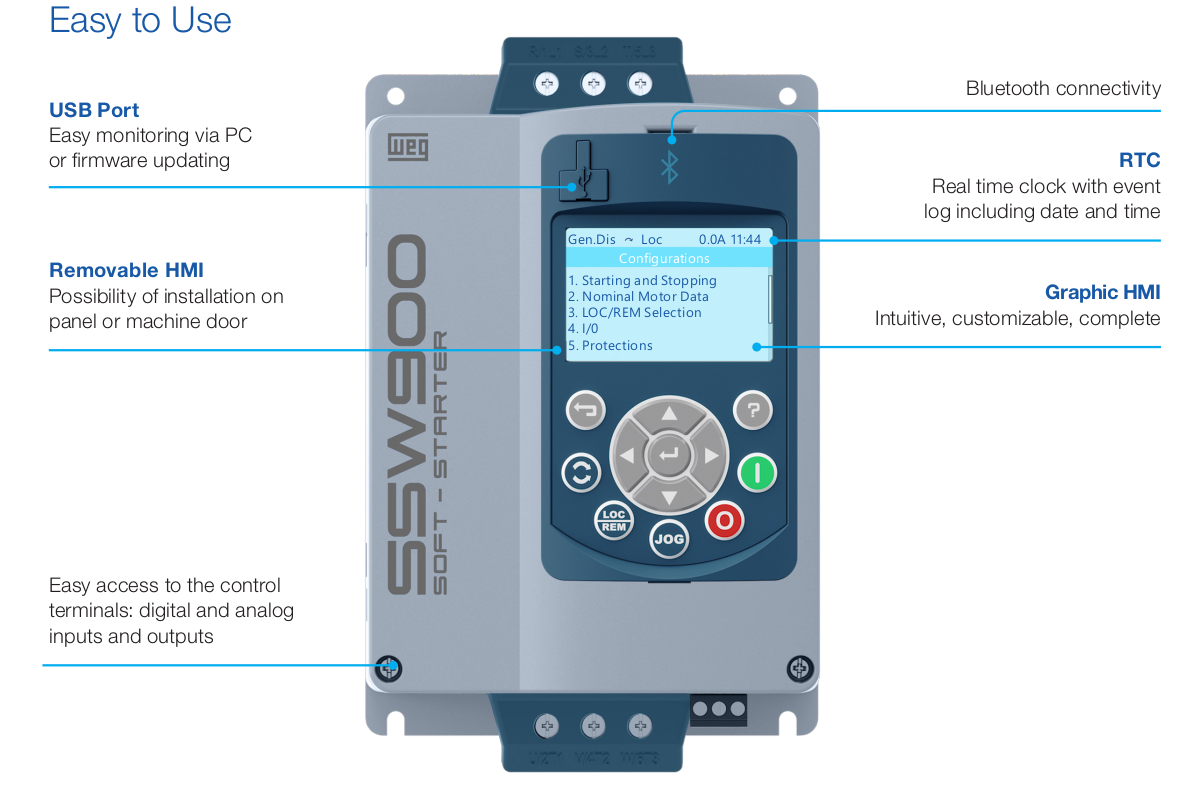

- Detachable Text/Graphic Keypad with USB

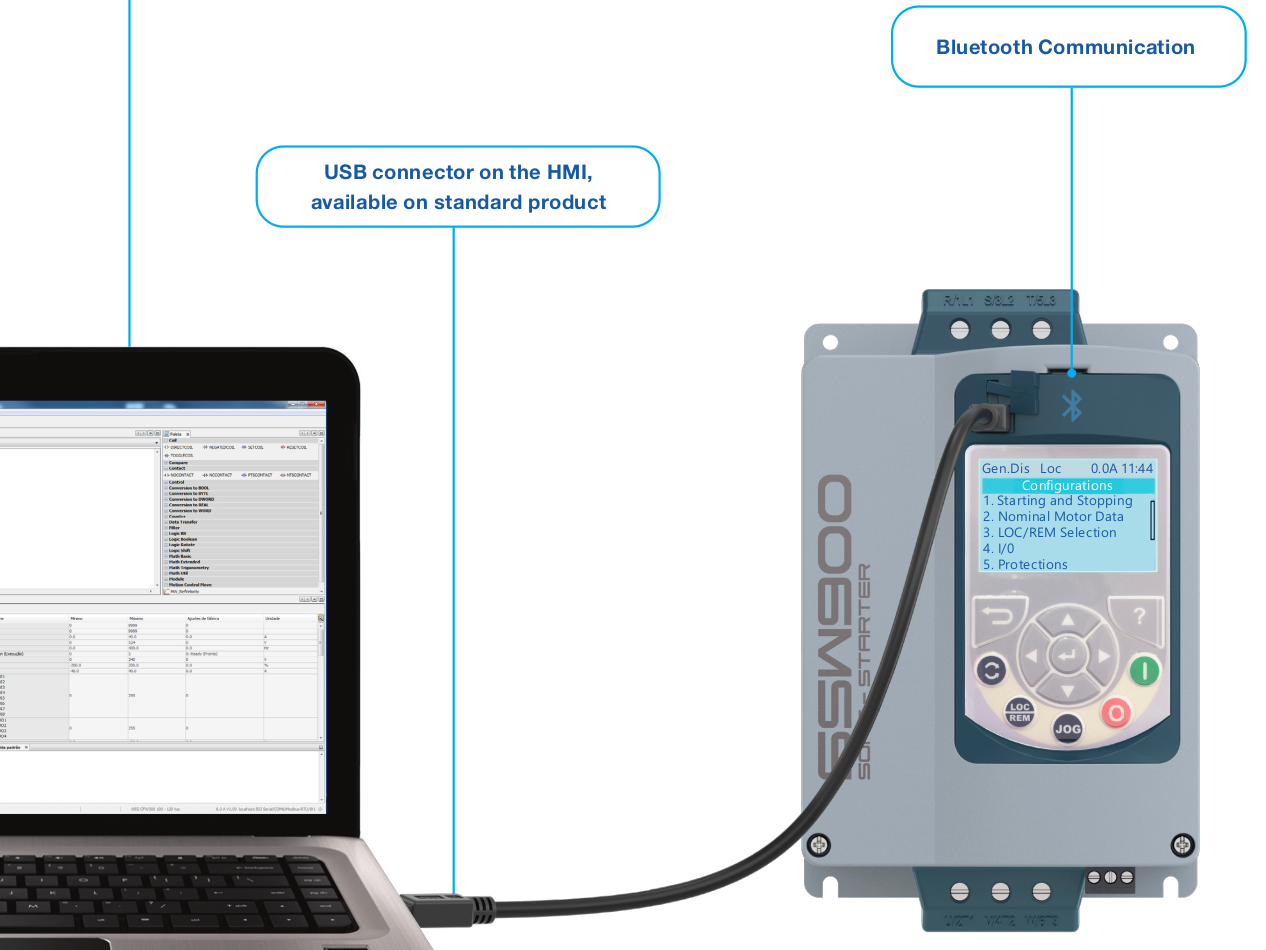

- Bluetooth Interface and free Phone App
- Real-time Clock with Event Logging
- 2 Slots for Plug-In Option Modules
- 5 Isolated Digital Inputs
- 3 Programmable Relay Outputs
- 1 Programmable Analog Out
- Built-in SoftPLC
- Fieldbus Communications Options
- Full Integral Motor Protection
