Weg SSW050016T2246TPZ Soft Start 16 Amp 220-460 VAC
Weg SSW050016T2246TPZ Soft Start 16 Amp 220-460 VAC

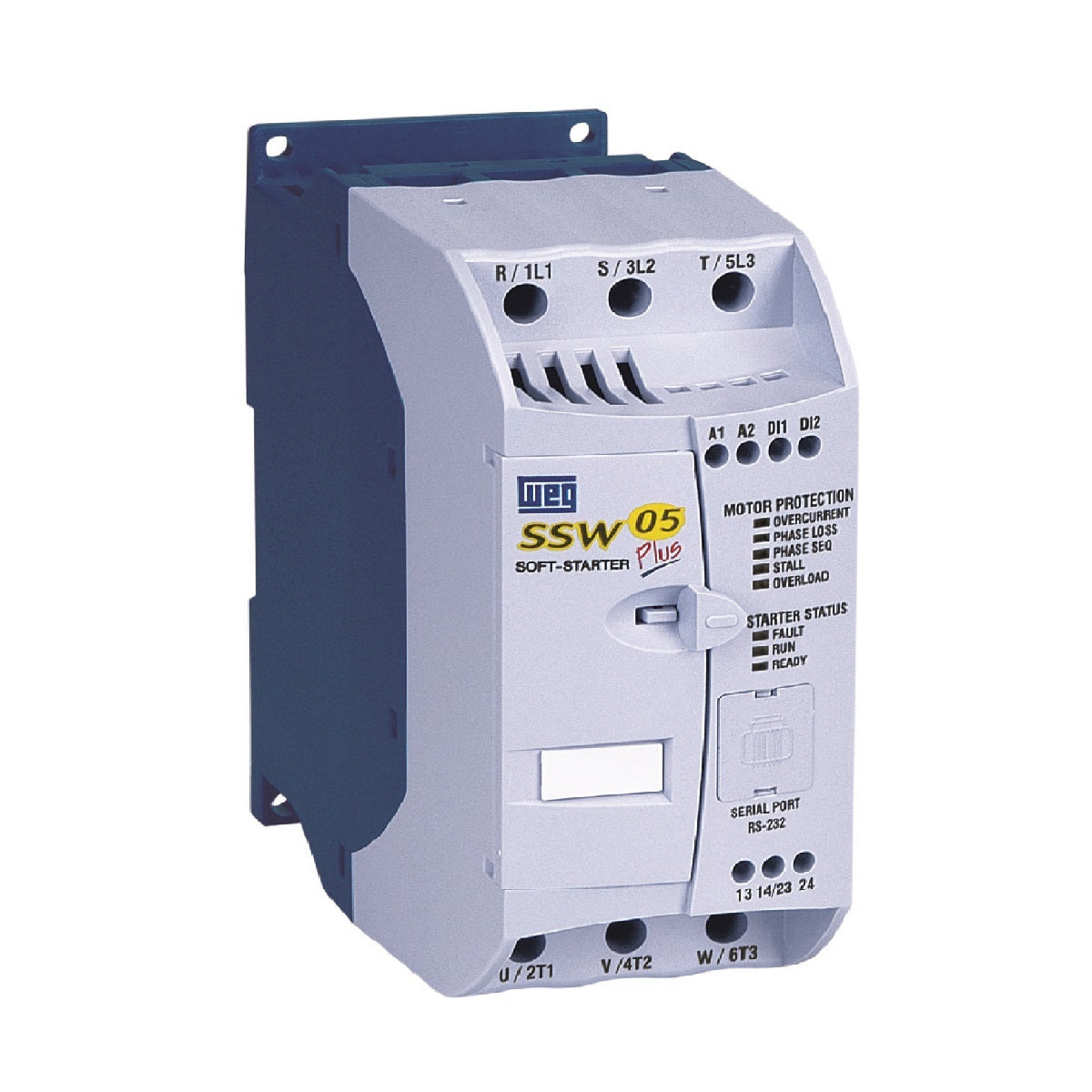

The Weg SSW05 Soft Starter is a compact fully digital soft starter with a state-of-the-art DSP controller and built-in bypass.
Easy setup using only front panel dip switches and dials.
The built-in bypass eliminates the need for an external contactor after the motor reaches full speed, and effectively takes the soft start out of the circuit, while protection monitoring remains in place.
For high inertia loads, please see the SSW07 or SSW900 product lines
Accessories

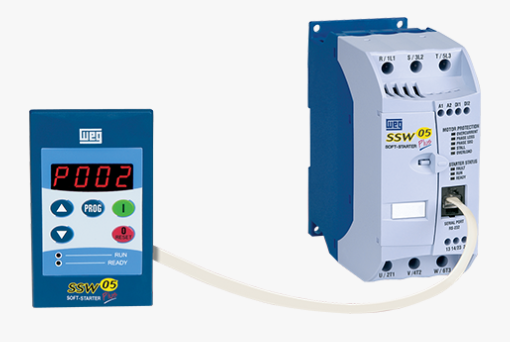

- SSW05-HMI-RS - Remote keypad with LED display
- CAB-RS-1 - 3.3ft (1 meter) remote keypad cable
- CAB-RS-2 - 6.6ft (2 meter) remote keypad cable
- SSW05-07-08-CRS-3M - 9.9ft (3 meter) remote keypad cable
- SSW05-07-08-CRS-5M - 16ft (5 meter) remote keypad cable
- CAB-RS-7.5 - 25ft (7.5 meter) remote keypad cable
- CAB-RS-10 - 33ft (10 meter) remote keypad cable
Share
Specifications, Features and Documentation
-
Specs
Model: SSW050016T2246TPZ
P/N: 10413821
Amps: 16
Voltage: 220-460
Phase: Three-Phase
Dimensions:
L: 5.12 in
W: 2.32 in
D: 5.71 in
Weight: 3 lb
Enclosure Rating: IP00
Applications:
- General Purpose
-
Features
Input Voltage: 208-480V 50/60Hz 3-Phase
Bypass Contactor: built-in
Duty Cycle: 300% rated current for 30 seconds, 4/hour
Digital Input: Start/Stop (90-250 VAC)
Digital Input: Fault Reset (90-250 VAC)
Relay Output: Run Indication (1amp - 250V)

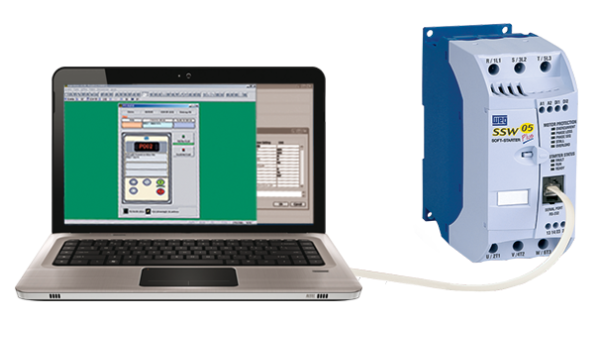

Coms: RS-232 Port
Acc and Dec Ramps: 0 -20 sec adj.
Mounting: DIN Rail or Direct Mount
Protective Features:
- Motor Overload
- Over Current
- SCR Overload
- Phase Loss
- Phase Sequence
