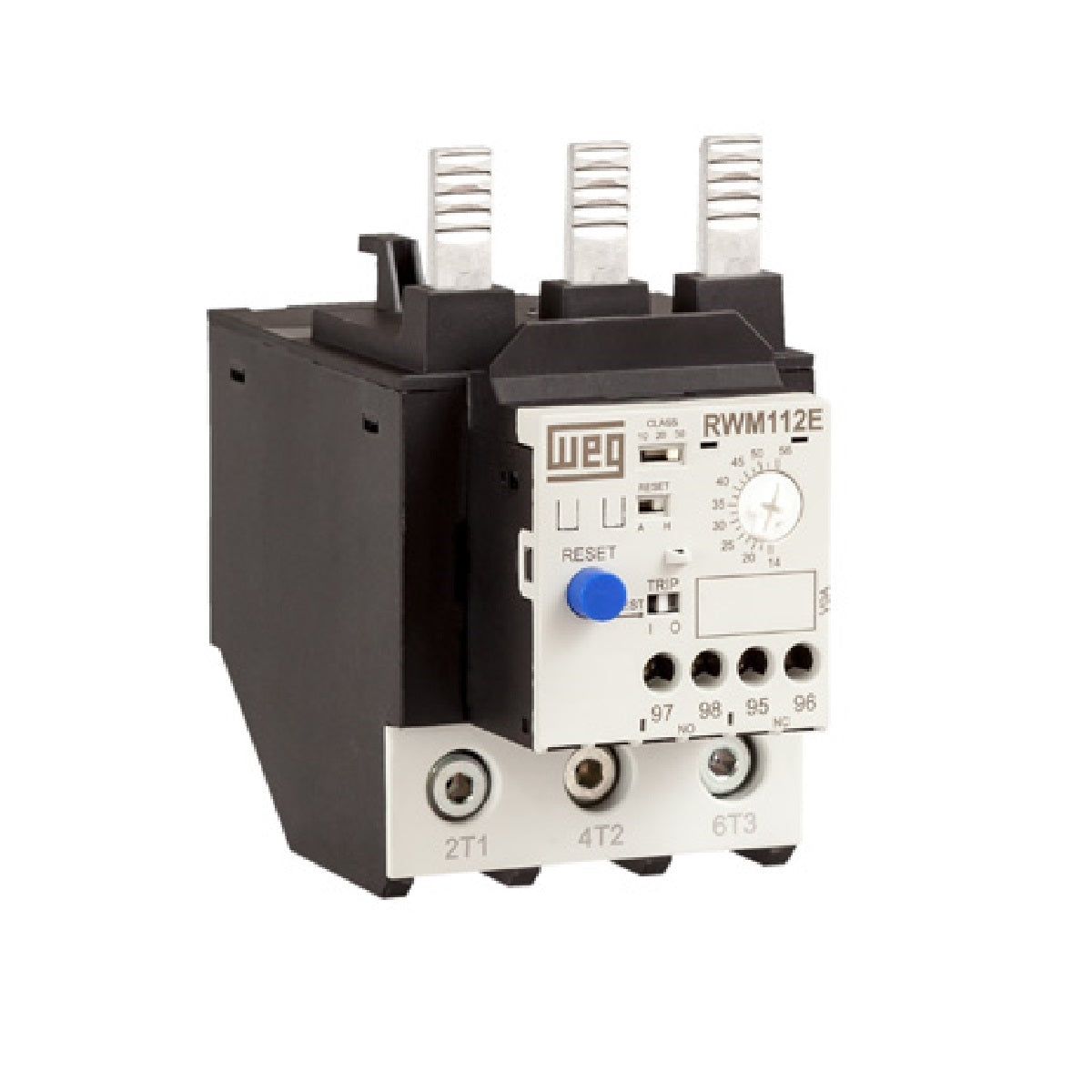

WEG RWM112E-3-R4U112 Electronic Overload Relay 28.0-112 Amp Remote Reset

The Weg RW-E series of electronic overload relays are designed to protect expensive motors from damage due to overloads, phase loss, and current unblances. The Weg electronic relay is up to 87% more energy efficient compared to thermal overload relays, saving on both energy and cabinet ventilation demands. They also have a much larger settable current range as compared to the thermal overloads, thus reducing spare parts inventory. The entire current range from 0.4 to 820 amps is covered by just 4 RW-E products.

This model features 2 extra control terminals, A3,A4, for optional remote reset. By applying 24VDC to these terminals, the relay may be reset from an overload condition. Manual reset still available from the blue button on the front.

Specs

• Direct mounting to WEG CWM50, CWM65, CWM80, CWM50N, CWM95, CWM105, CWM95N contactors
• Current Setting Range: 28.0-112 Amps
• Number of power poles: 3
• Auxiliary Contacts: 1 N.O., 1 N.C, isolated
• Auto/Manual Reset Button, Remote Reset via terminals A3,A4

Features

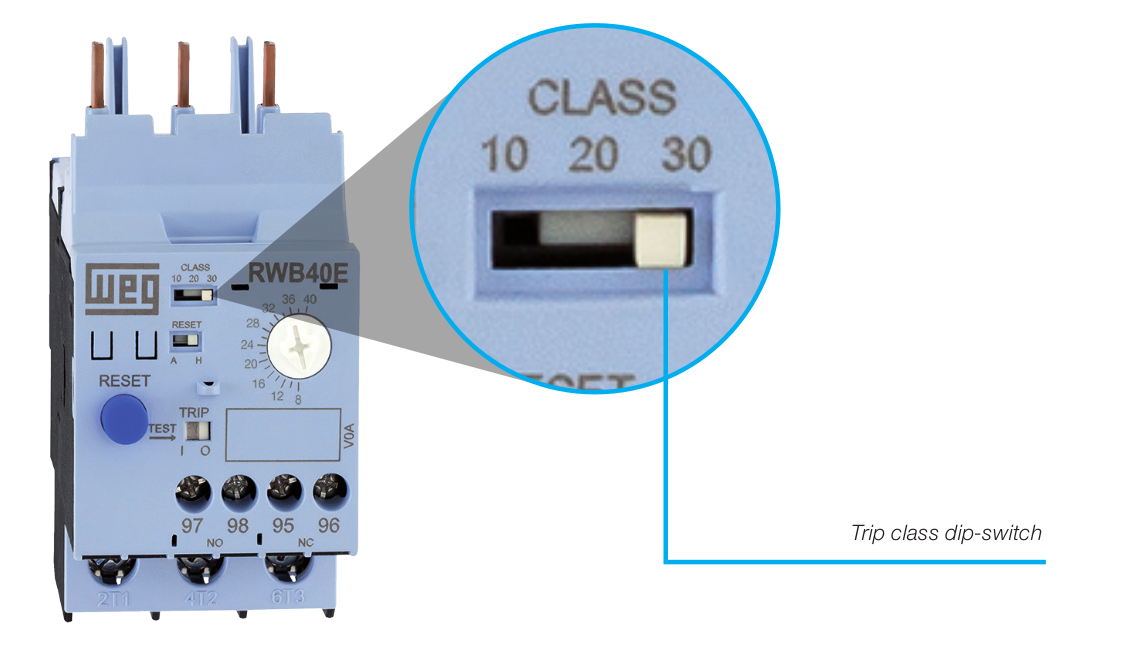

• Adjustable trip class 10,20 or 30
• Wide range settable current overload value
• Overload, phase-loss and current unbalance protection
• Red flag trip indication
• Isolated NO and NC auxiliary contacts
• Manual/Auto/Remote RESET button
• Low energy consumption and low power dissipation
• Direct mounting below Weg contactorsStand-alone mount accessory allows mounting anywhere
• Selectable Auto or Manual Reset

Documentation

• Weg Electronic Overload Flyer
• Weg Electronic Overload Catalog

Accessories

• BF112: Remote Mounting Kit for RWM112E Overloads
• GA117D: Overload Connector Links for CWM112/150 contactors
• CSW-BHF437: Overload Relay Reset Button with adjustable shaft
