Description

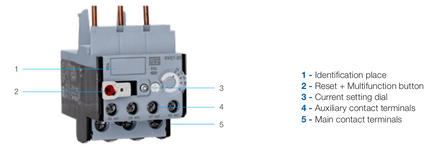

Weg RW series of thermal overload relays are Class 10 overloads designed to protect motors from damage due to overloads, phase loss, and current unbalance. Available in a wide range of current settings. Many accessories are available, including stand-alone mounting brackets, connector links, and more.
Specs
- Direct mounting to WEG CWB95, CWB110, CWB125, CWBN3 contactors
- Current Setting Range: 110-140 Amps
- Number of power poles: 3
- Auxiliary Contacts: 1 N.O., 1 N.C, isolated
Features
- Overload, phase-loss and current unbalance protection
- Class 10 Trip Characteristics
- Isolated NO and NC auxiliary contacts
- Manual/Auto/Remote RESET button
- Direct mounting below Weg contactors
- Stand-Alone accessory allows mounting anywhere
- Selectable Auto or Manual Reset
Documentation
Accessories
- BF117-3D: Remote Mounting Kit for RWM117-3D Overloads
- CSW-BHF437: Overload Relay Reset Button with adjustable shaft
