Description

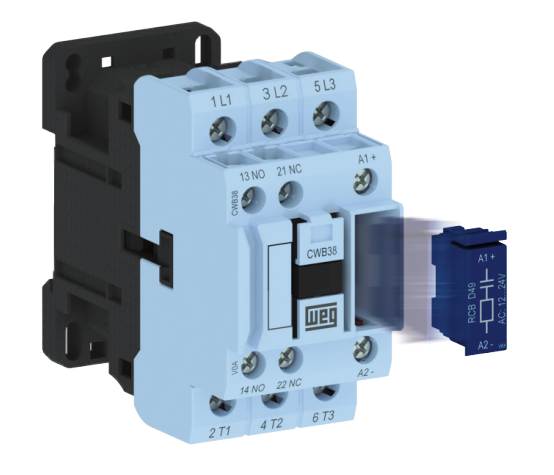

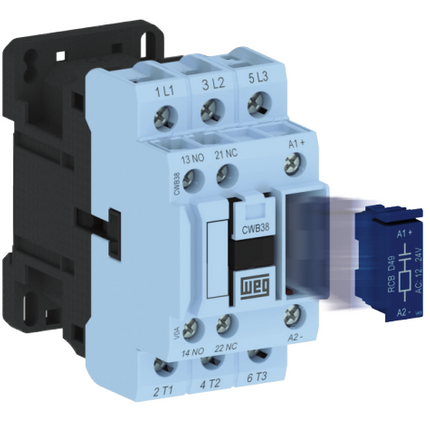

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means.

Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in.

Catalog No.	RCB D53
Suppresor Type	RC Circuit
Voltage	24-48V 50/60Hz

Compatible with all Weg CWB series contactors.

Documentation

Product form

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or... Read more

SKU: Weg-RCB-D53
Barcode: 7909158260539

Delivery within 48 hours, pay afterwards

$13.83

Description

The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means.

Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in.

Catalog No.	RCB D53
Suppresor Type	RC Circuit
Voltage	24-48V 50/60Hz

Compatible with all Weg CWB series contactors.
