Description
Weg MPW manual motor protectors provide a very compact solution for meeting the 4 NEC requirements for a combination motor starter:
- Motor Disconnect
- Branch Circuit Protection
- Motor controller
- Overload protection
The MPW series meets all of the above as well as UL requirements for self-protected motor controllers to be used with type E and F applications.
Standard Features
- High short-circuit interruptiong ratings - up to 65kA 480V
- Phase loss sensitivity protection
- UL Type-E self-protected combination starter
- Suitable for motor disconnect applications
- Group motor installations (per NEC Article 430)
- Wide variety of Accessories
- Rated for AC and DC applications

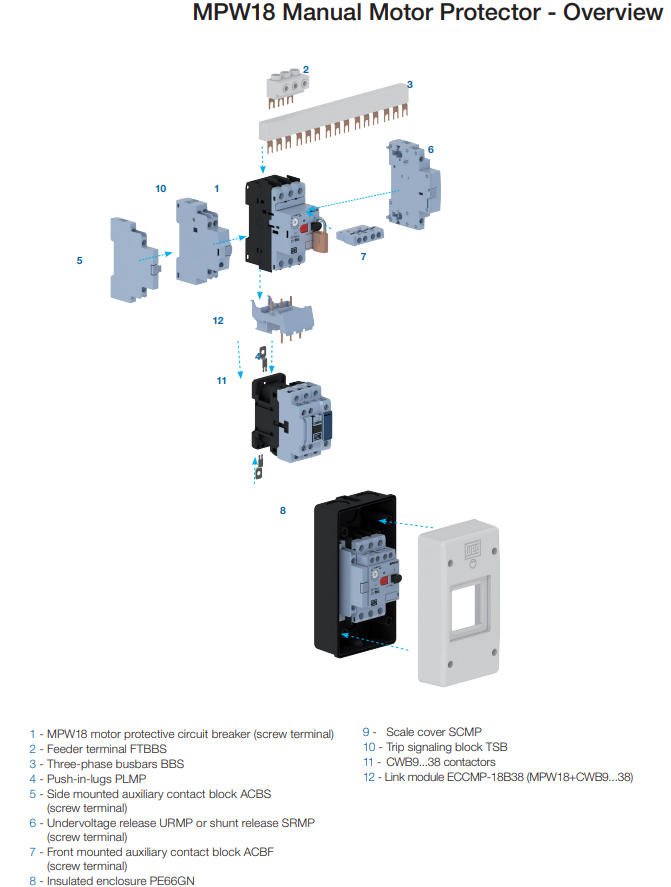

We carry the full line of MPW accessories including:
- Auxiliary Contact Blocks
- Bus bars
- Enclosures
- Trip Signaling blocks (TSP)
- Undervoltage release URMP or Shunt Release SRMP, and more
