WEG CWM80-11-30V47 80 Amp 3 Pole Contactor with 480 VAC Coil

Description

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

Specs

  • Model No: CWM80-11-30V47
  • Rated Current: 80 Amp
  • Coil Voltage: 480 VAC 60Hz / 400-415 VAC 50Hz
  • Number of Power Poles: 3 Pole
  • Auxiliary Contacts: 1 NC 1 NO (More available as added option)

Features

  • 2-pole and 3-pole contactors
  • Panel Mountable on 35mm DIN rails up to CWM105 size
  • Wide range of AC and DC Coils
  • Compact Footprint

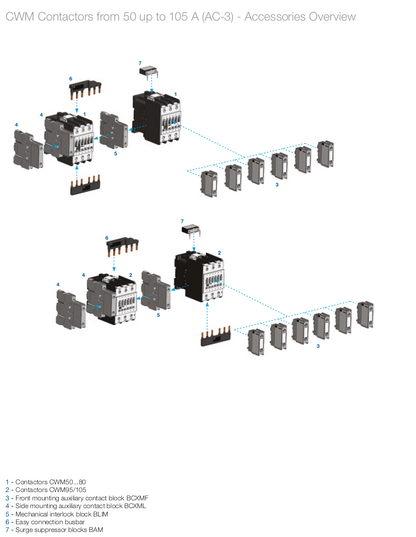

  • Easy-to-use accessories through snap-on connectivity
  • Conforms to UL 508, IEC 60947, CE

Documentation

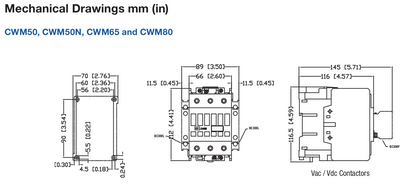

3-D Models and More

WEG Downloads

Product form

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to... Read more

SKU: Weg-CWM80-11-30V47
Barcode: 7894171707850

Normally ships within 24 hours

$141.91

    Description

    The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

    Specs

    • Model No: CWM80-11-30V47
    • Rated Current: 80 Amp
    • Coil Voltage: 480 VAC 60Hz / 400-415 VAC 50Hz
    • Number of Power Poles: 3 Pole
    • Auxiliary Contacts: 1 NC 1 NO (More available as added option)

    Features

    • 2-pole and 3-pole contactors
    • Panel Mountable on 35mm DIN rails up to CWM105 size
    • Wide range of AC and DC Coils
    • Compact Footprint
    • Easy-to-use accessories through snap-on connectivity
    • Conforms to UL 508, IEC 60947, CE

    Documentation

    3-D Models and More

    WEG Downloads
