WEG CWM80-11-30V24 80 Amp 3 Pole Contactor with 208-240 VAC Coil

Description

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

Specs

  • Model No: CWM80-11-30V24
  • Rated Current: 80 Amp
  • Coil Voltage: 208-240 VAC 60Hz / 180-208 VAC 50Hz
  • Number of Power Poles: 3 Pole
  • Auxiliary Contacts: 1 NC 1 NO (More available as added option)

Features

  • 2-pole and 3-pole contactors
  • Panel Mountable on 35mm DIN rails up to CWM105 size
  • Wide range of AC and DC Coils
  • Compact Footprint

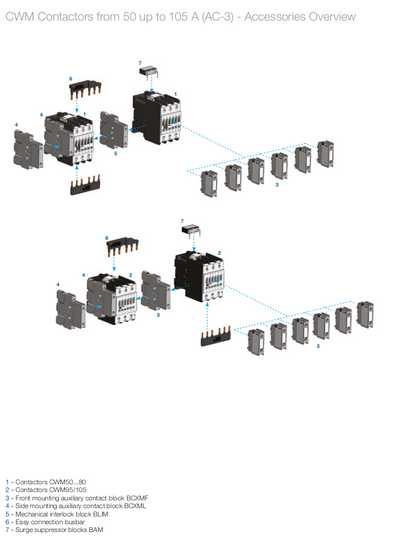

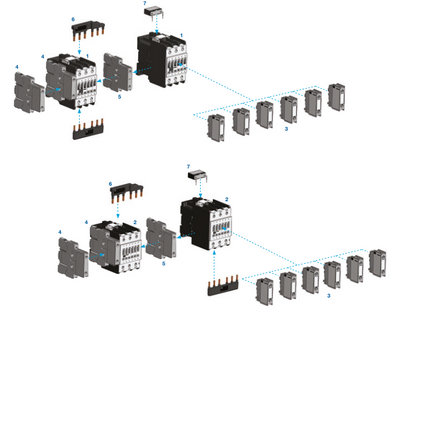

  • Easy-to-use accessories through snap-on connectivity
  • Conforms to UL 508, IEC 60947, CE

Documentation

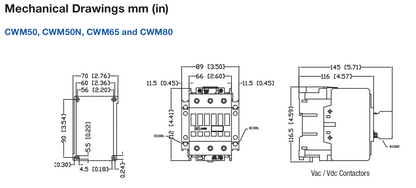

3-D Models and More

WEG Downloads

Product form

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to... Read more

SKU: Weg-CWM80-11-30V24
Barcode: 7894171826025

Normally ships within 24 hours

$141.91

    Description

    The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

    Specs

    • Model No: CWM80-11-30V24
    • Rated Current: 80 Amp
    • Coil Voltage: 208-240 VAC 60Hz / 180-208 VAC 50Hz
    • Number of Power Poles: 3 Pole
    • Auxiliary Contacts: 1 NC 1 NO (More available as added option)

    Features

    • 2-pole and 3-pole contactors
    • Panel Mountable on 35mm DIN rails up to CWM105 size
    • Wide range of AC and DC Coils
    • Compact Footprint
    • Easy-to-use accessories through snap-on connectivity
    • Conforms to UL 508, IEC 60947, CE

    Documentation

    3-D Models and More

    WEG Downloads
