The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.
Specs

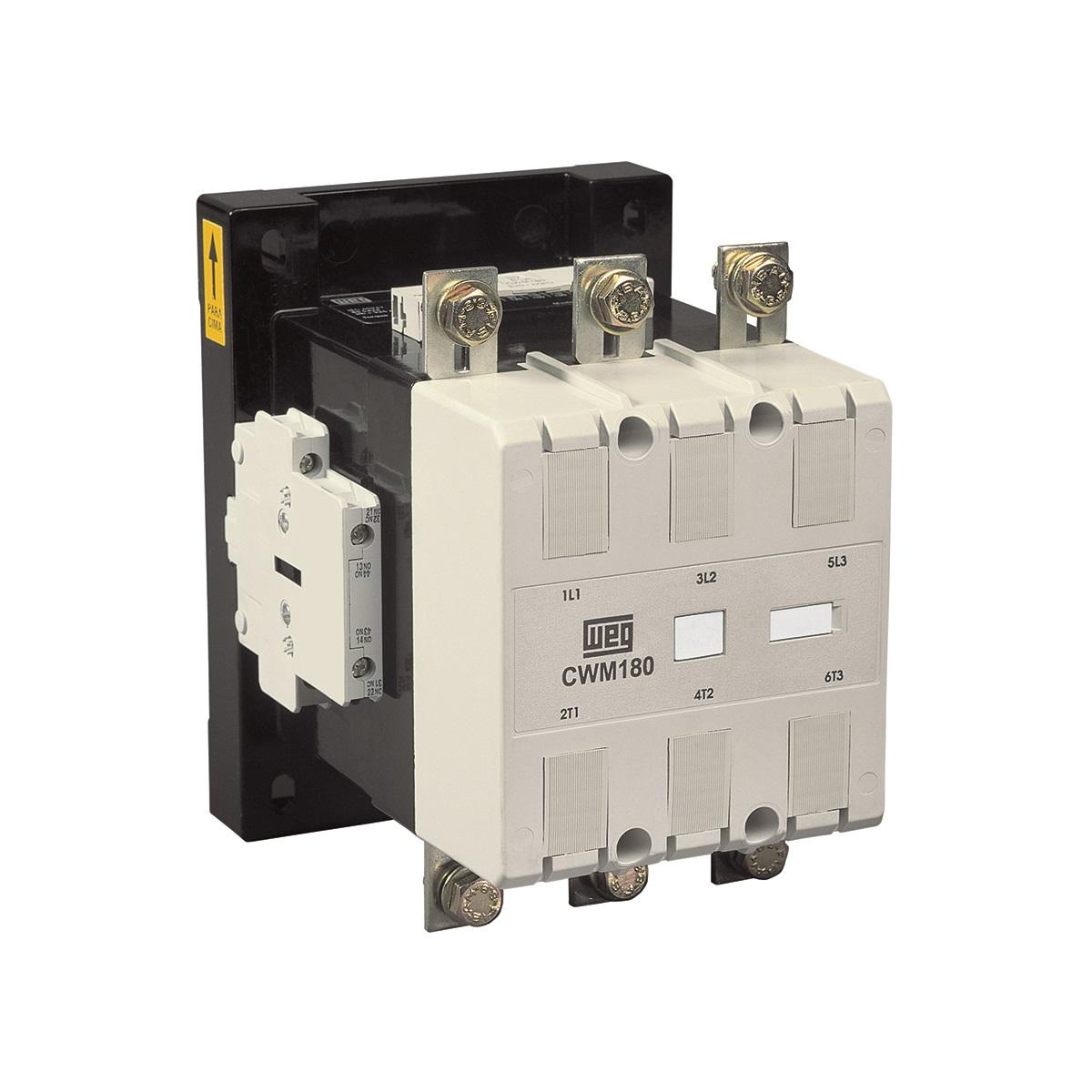

Model No: CWM180-22-30E21
Rated Current: 180 Amp
Coil Voltage: 430-500V AC/DC
Number of Power Poles: 3 Pole
Auxiliary Contacts: 2 NO 2 NC (More available as added option)
Features
2-pole and 3-pole contactors
Panel Mountable on 35mm DIN rails up to CWM105 size
Wide range of AC and DC Coils
Compact Footprint

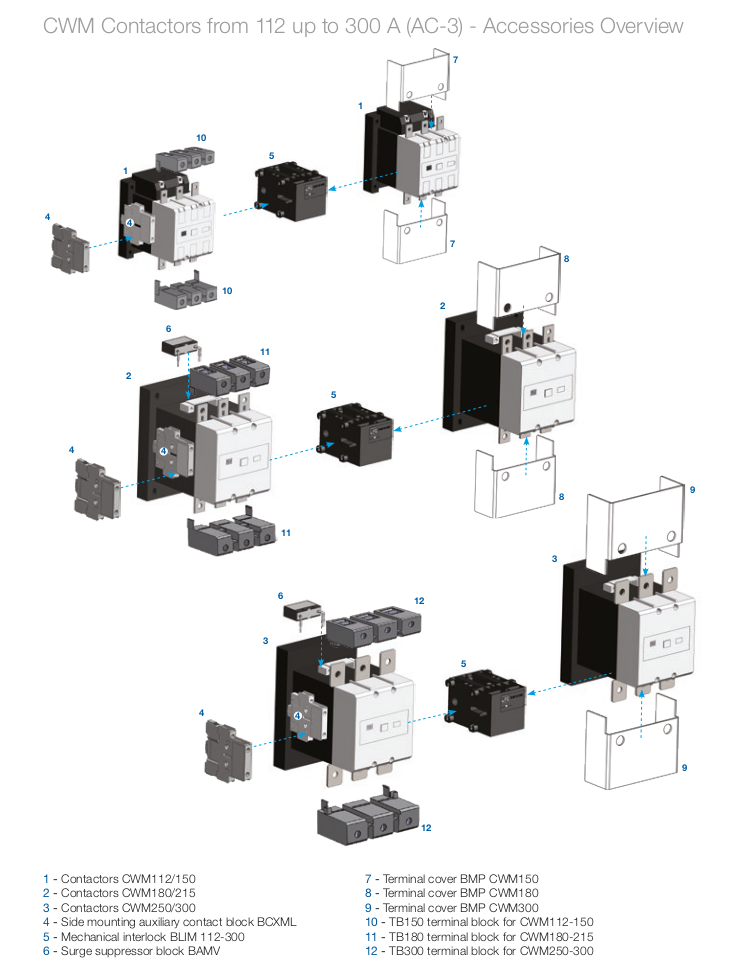

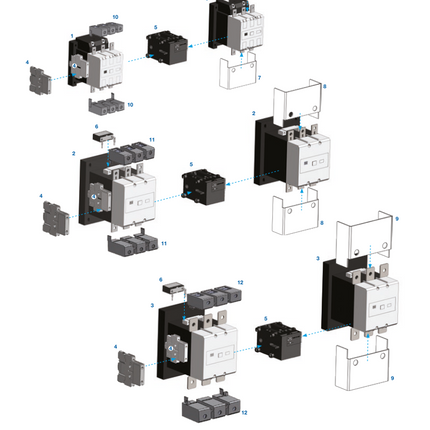

Easy-to-use accessories through snap-on connectivity
