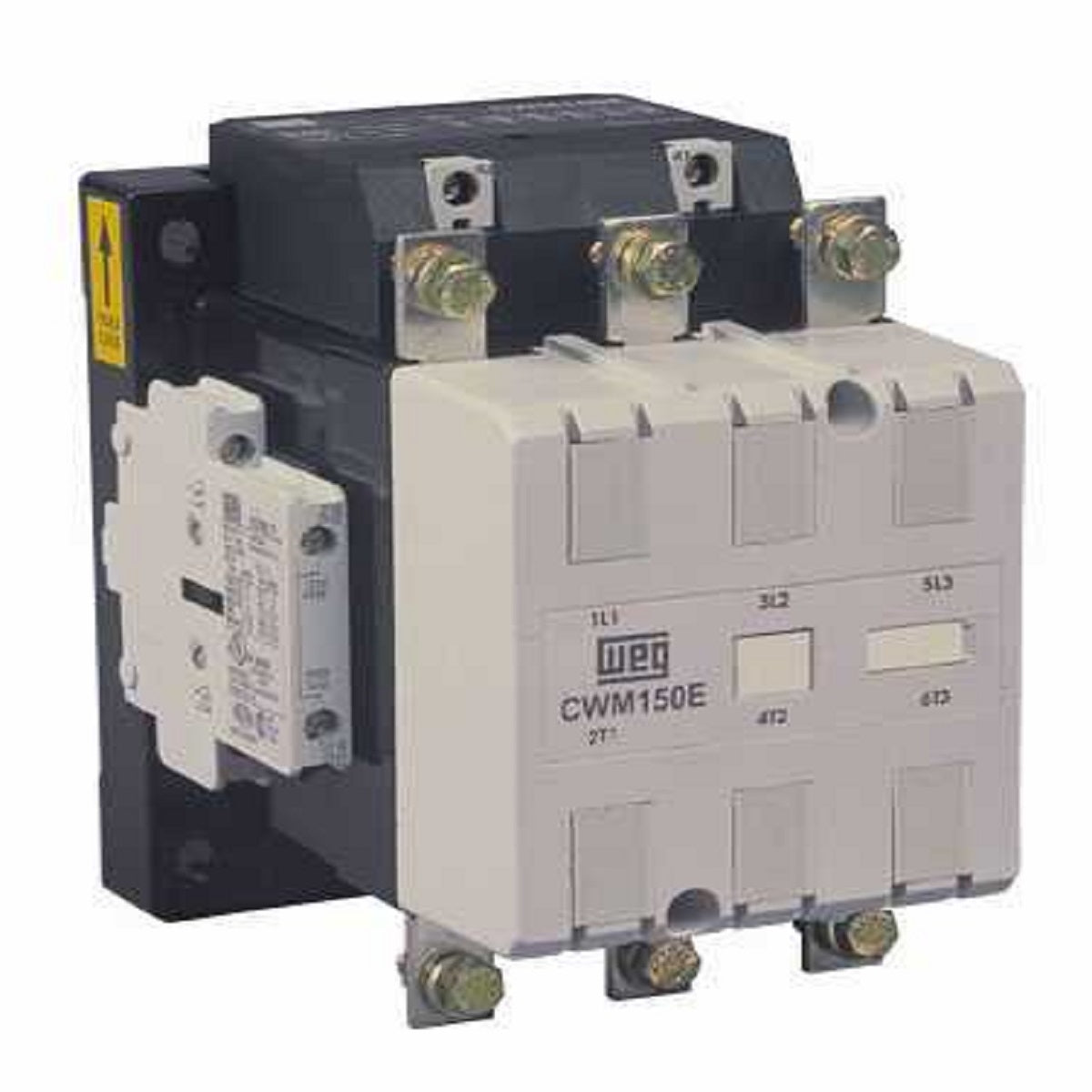

WEG CWM150-22-30E21 150 Amp 3 Pole Contactor with 430-500V AC/DC Coil

Description

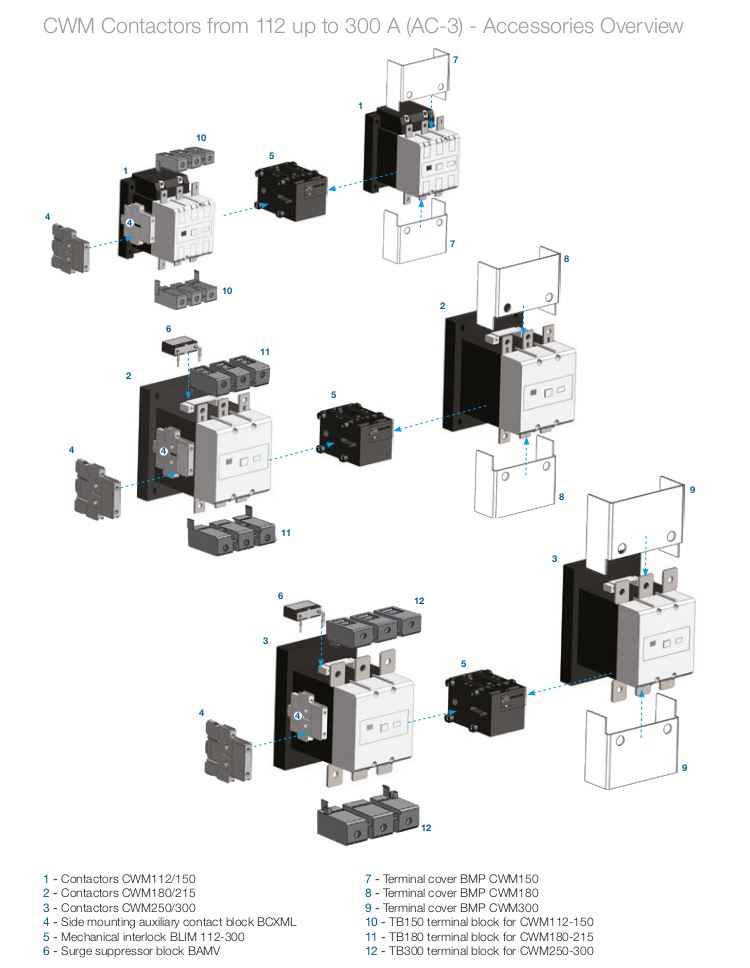

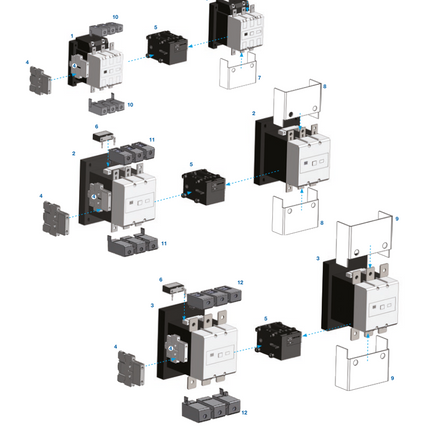

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

Specs

  • Model No: CWM150-22-30E21
  • Rated Current: 150 Amp
  • Coil Voltage: 430-500V AC/DC
  • Number of Power Poles: 3 Pole
  • Auxiliary Contacts: 2 NO 2 NC (More available as added option)

Features

  • 2-pole and 3-pole contactors
  • Panel Mountable on 35mm DIN rails up to CWM105 size
  • Wide range of AC and DC Coils
  • Compact Footprint
  • Easy-to-use accessories through snap-on connectivity
  • Conforms to UL 508, IEC 60947, CE

Documentation

3-D Models and More

WEG Downloads

Product form

The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to... Read more

SKU: Weg-CWM150-22-30E21
Barcode: 7890355211908

Normally ships within 24 hours

$484.80

    Description

    The WEG CWM contactors are designed for industrial duty reliability. Rated for inductive loads up to 800 Amp, conforming to UL 508, IEC 60947 and CE. A variety of options are available including replacement coils, auxiliary contacts and overloads.

    Specs

    • Model No: CWM150-22-30E21
    • Rated Current: 150 Amp
    • Coil Voltage: 430-500V AC/DC
    • Number of Power Poles: 3 Pole
    • Auxiliary Contacts: 2 NO 2 NC (More available as added option)

    Features

    • 2-pole and 3-pole contactors
    • Panel Mountable on 35mm DIN rails up to CWM105 size
    • Wide range of AC and DC Coils
    • Compact Footprint
    • Easy-to-use accessories through snap-on connectivity
    • Conforms to UL 508, IEC 60947, CE

    Documentation

    3-D Models and More

    WEG Downloads
