Description

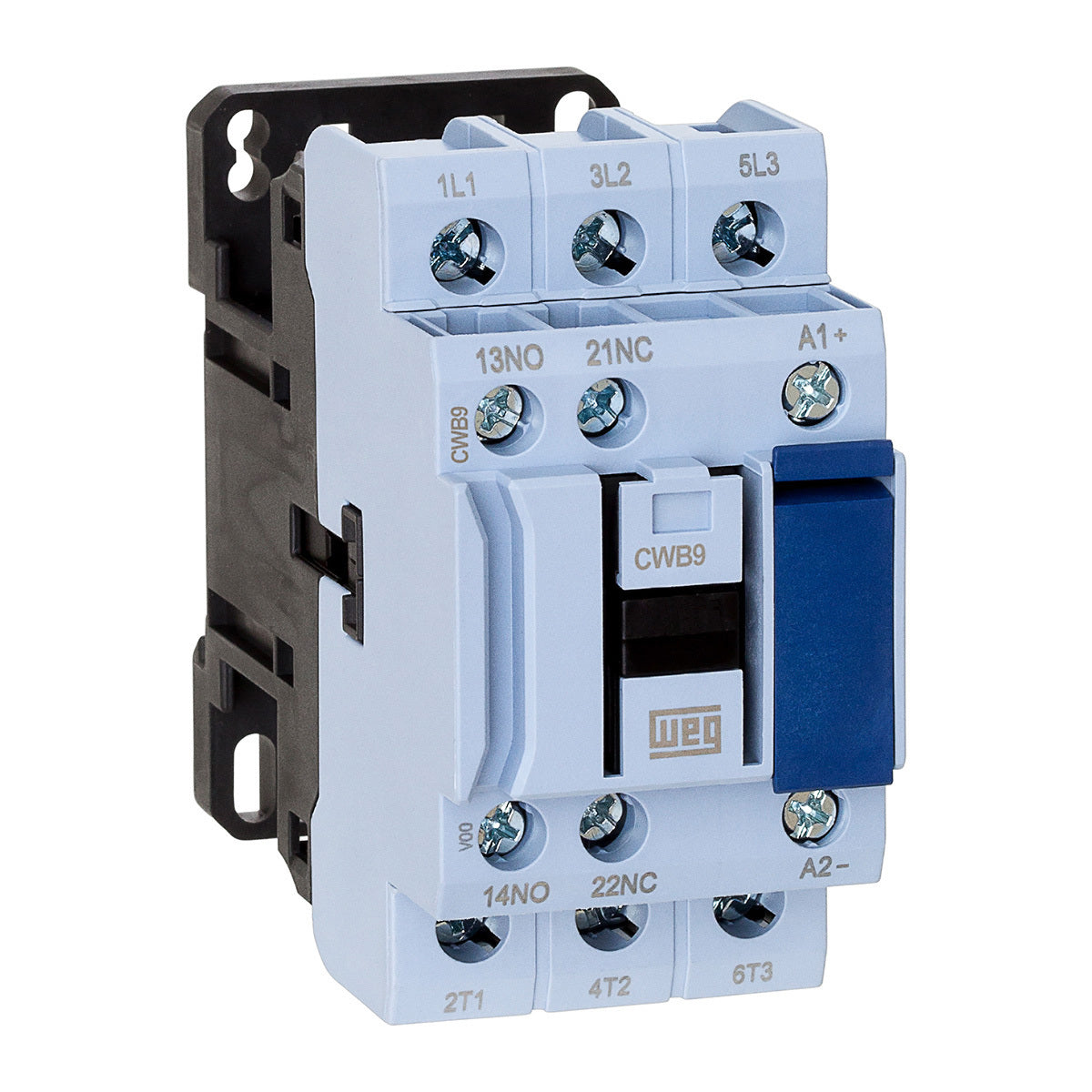

The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.
NOTE: DC Coils from WEG have been difficult to obtain. Please contact us for availability
Specifications
| Rated Current |
9 Amps |
| NEMA Size |
N/A |
| Power Poles |
3 Pole |

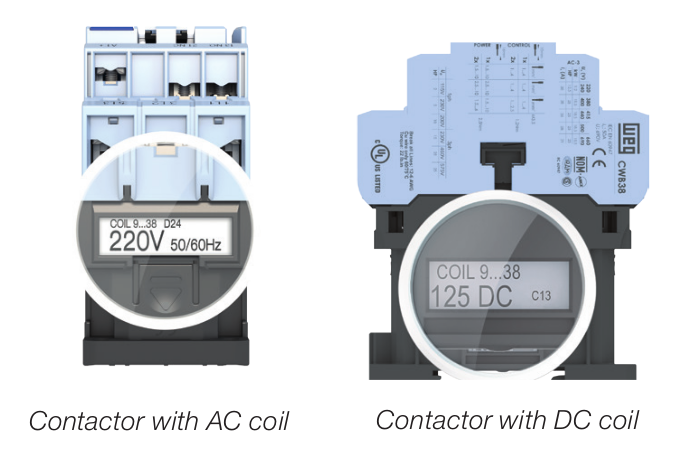

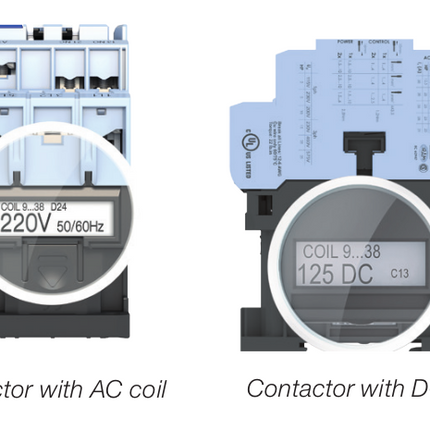

| Coil Voltage |
125VDC |
| Aux Contacts |
1 NC 1 NO |
| Approvals |
CE and UL - UL File No. E202315 |
Features
- Zero-Width Mechanical Interlock
- Built-In Aux. Contacts 1NO, 1NC

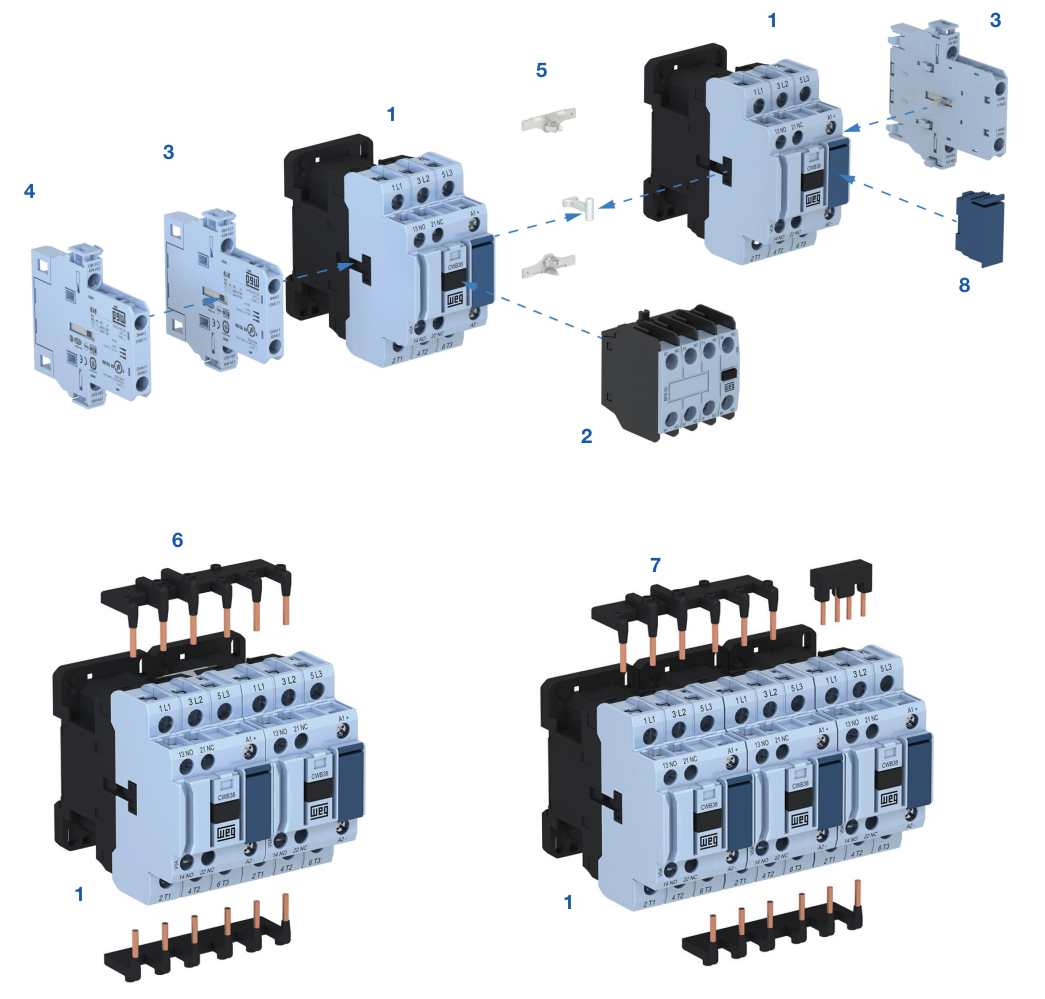

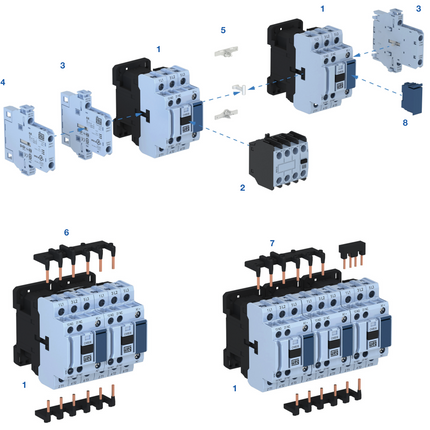

- Extra auxiliary contacts can be added to front and side
- All terminals accessible from top, including coil

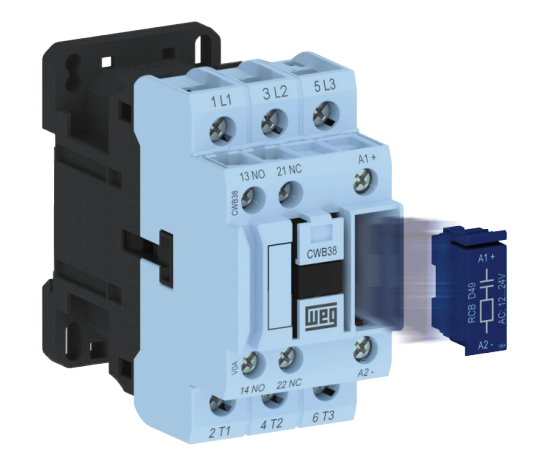

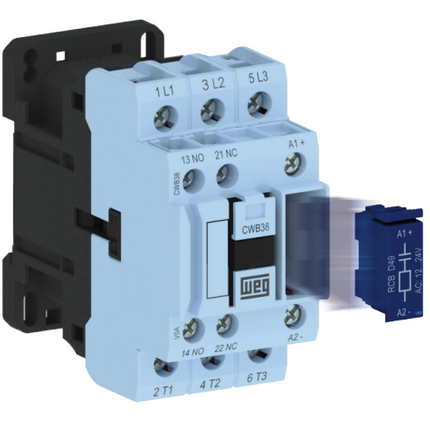

- Front plug-in slot for coil suppressor modules
- DIN-Rail or Screw Mountable
- Front channel wire guide for clean, organized installation
- IEC 60947, UL 508, CE Conformance
