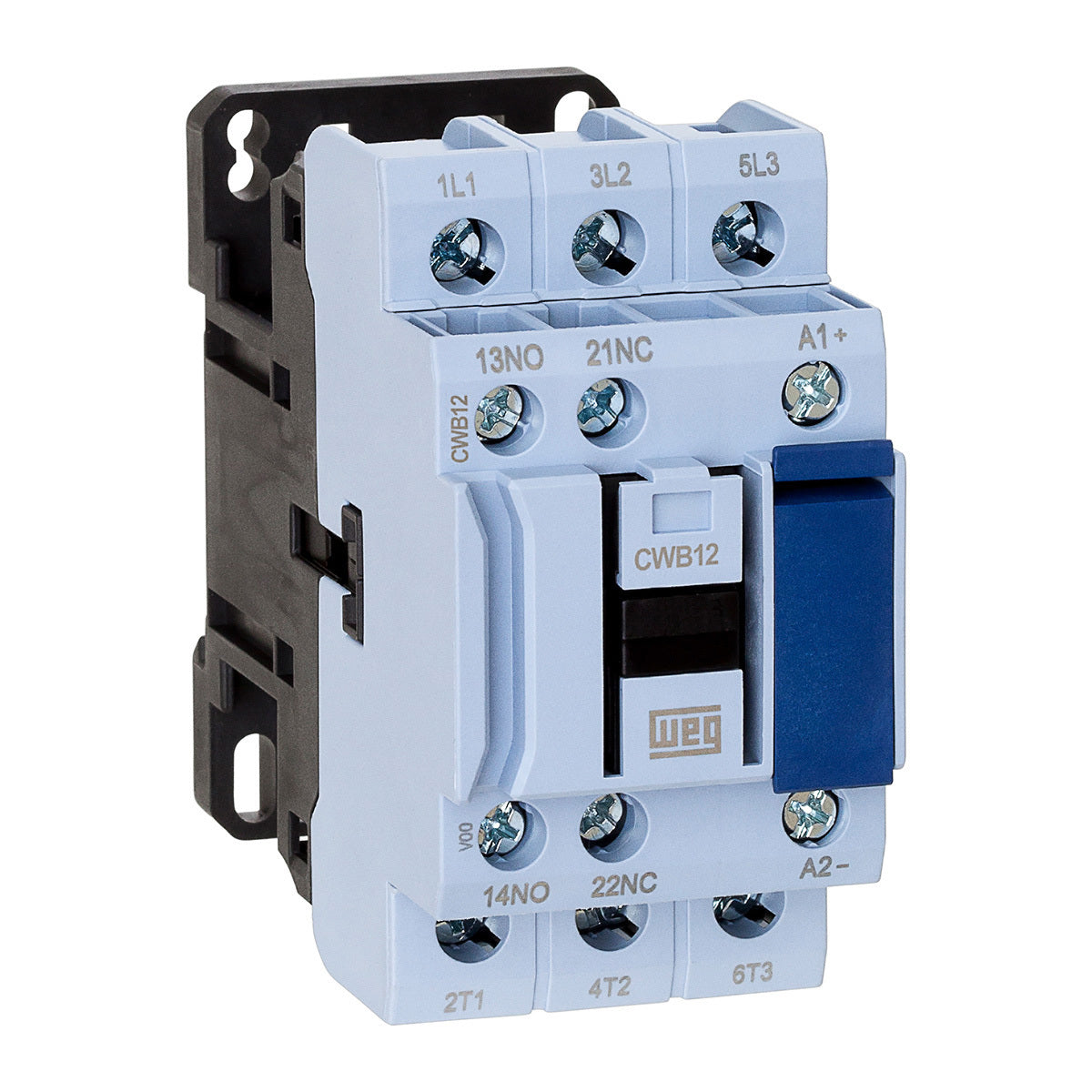

The CWB series is the newest line of contactors from WEG, offering compact solutions for circuit switching and motor control. These magnetic contactors are available up to 125 Amps in IEC versions and up to 95 Amps In NEMA Sizes sizes 00 to 3. Both the IEC and NEMA rated contactors are DIN-rail mountable, or can be mounted with screws. All terminals are accessible from the front, including coil connections, simplifying installation and trouble-shooting.
Specifications
Rated Current
12 Amps
NEMA Size
N/A
Power Poles
3 Pole

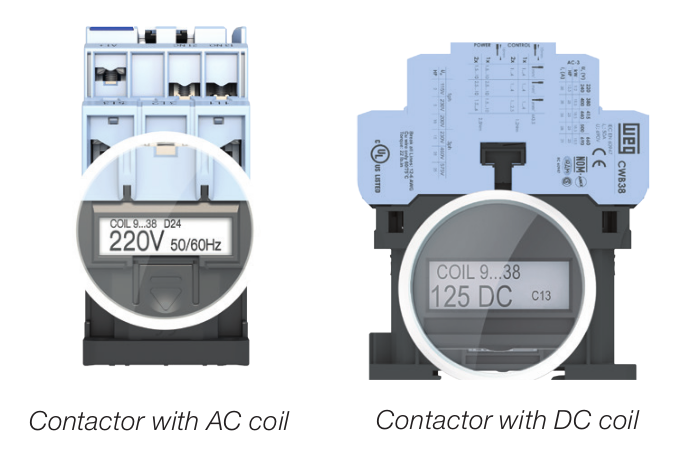

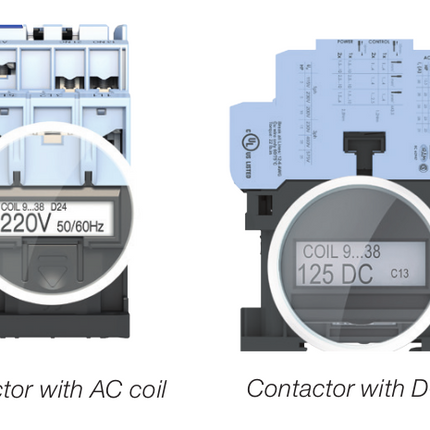

Coil Voltage
380VAC
Aux Contacts
1 NC 1 NO
Approvals
CE and UL - UL File No. E202315
Features
Zero-Width Mechanical Interlock
Built-In Aux. Contacts 1NO, 1NC

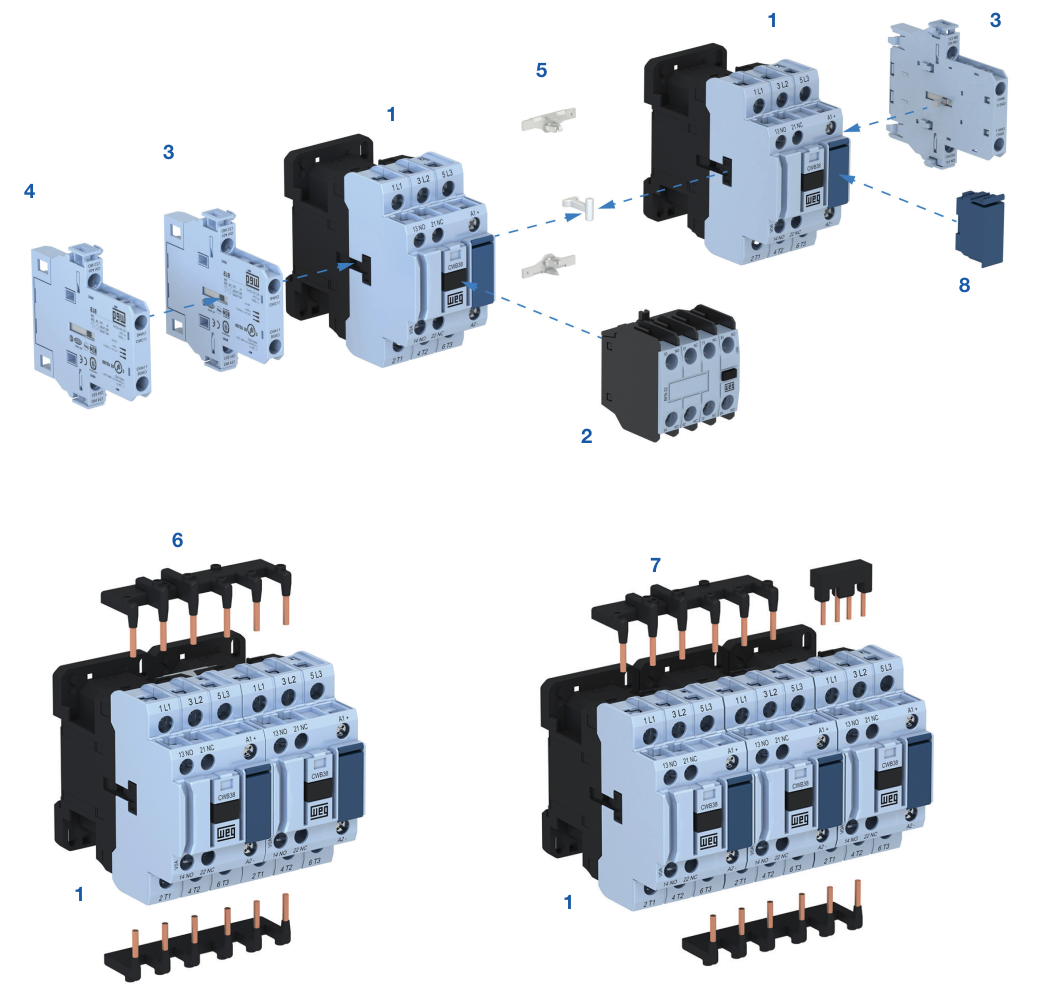

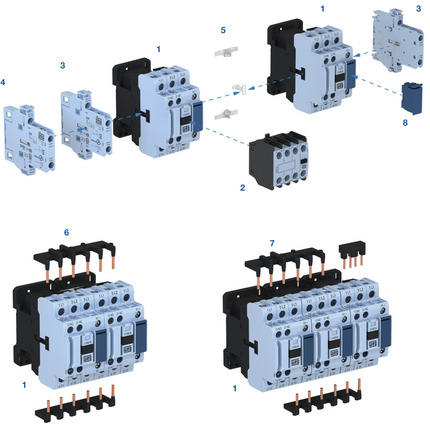

Extra auxiliary contacts can be added to front and side
All terminals accessible from top, including coil

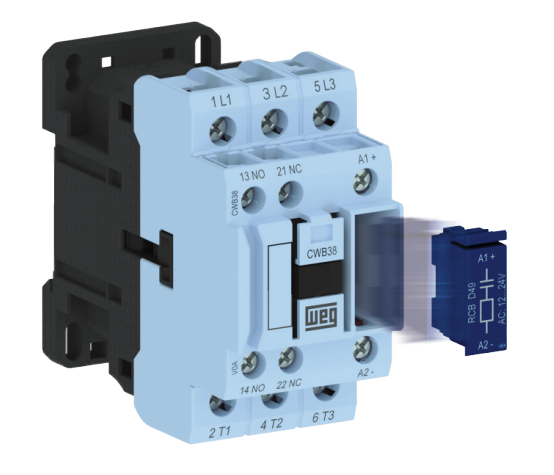

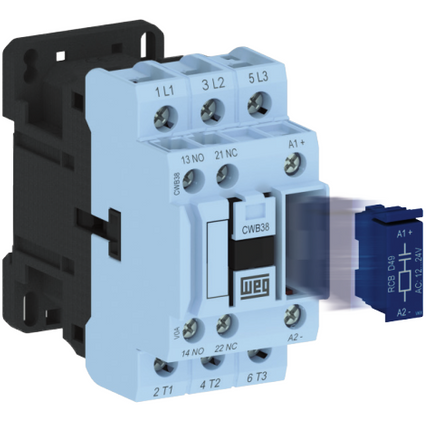

Front plug-in slot for coil suppressor modules
DIN-Rail or Screw Mountable
Front channel wire guide for clean, organized installation
