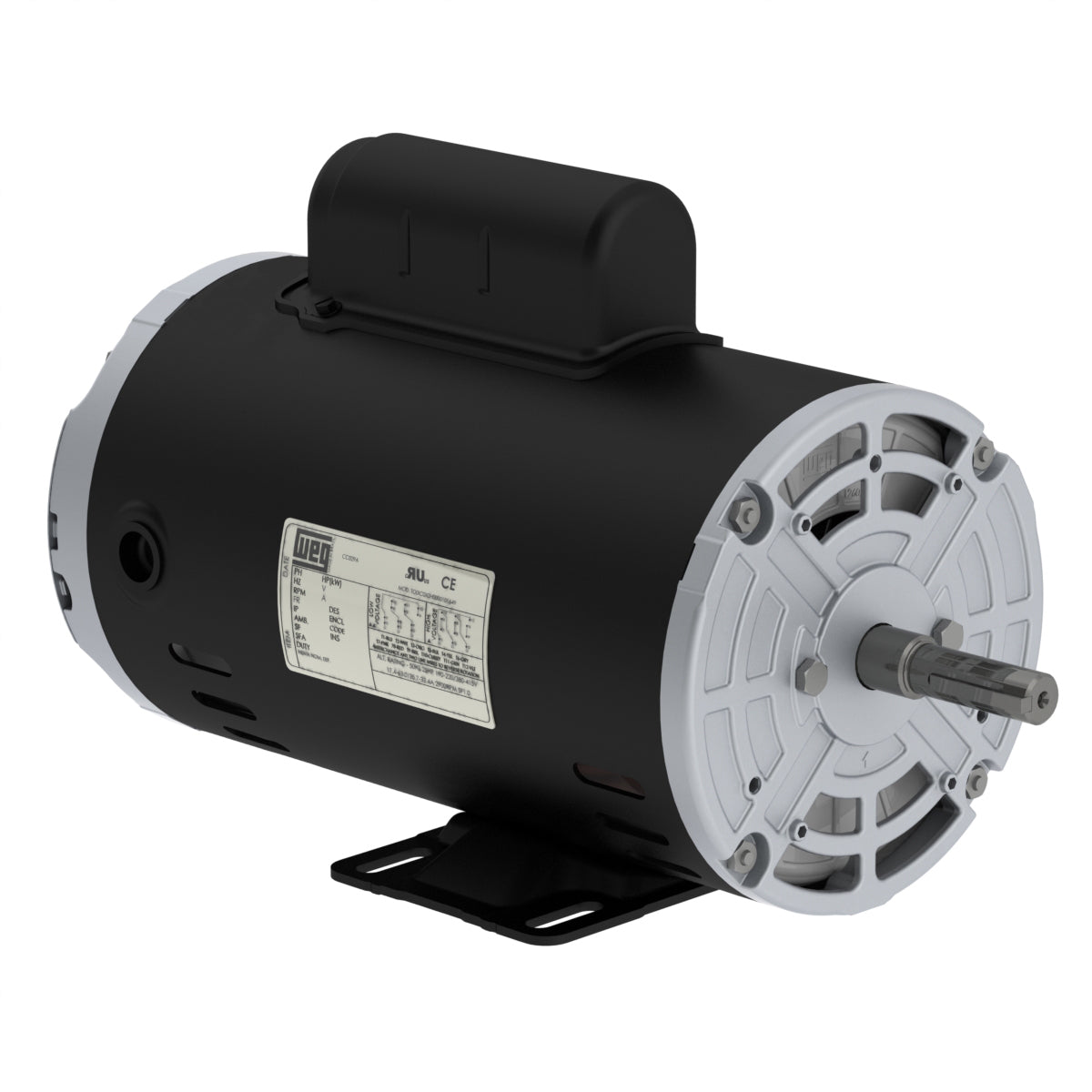

Weg .7518OS1BFB56-S 0.75 HP 1800 RPM 56 ODP Single-Phase Motor
Weg .7518OS1BFB56-S 0.75 HP 1800 RPM 56 ODP Single-Phase Motor
Regular price
$246.00
Regular price
$328.00
Sale price
$246.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg rolled steel Open Drip Proof (ODP) Single-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. The open enclosure offers a light-weight, quite and cost-effective motor with IP 21 rated protection.The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
Share
Specifications, Features and Documentation
-
Specs
Model: .7518OS1BFB56-S
Phase: Single-Phase
Power: 0.75 HP
RPM: 1800
Frame: 56
Enclosure: ODP
Voltage: 115/208-230V
Bearings: Ball Bearing
Weight: 30.09 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
-
