Weg .2518ES1BW56-S 0.25 HP 1800 RPM 56 TEFC Single-Phase Motor
Weg .2518ES1BW56-S 0.25 HP 1800 RPM 56 TEFC Single-Phase Motor
Regular price
$200.25
Regular price
$267.00
Sale price
$200.25
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

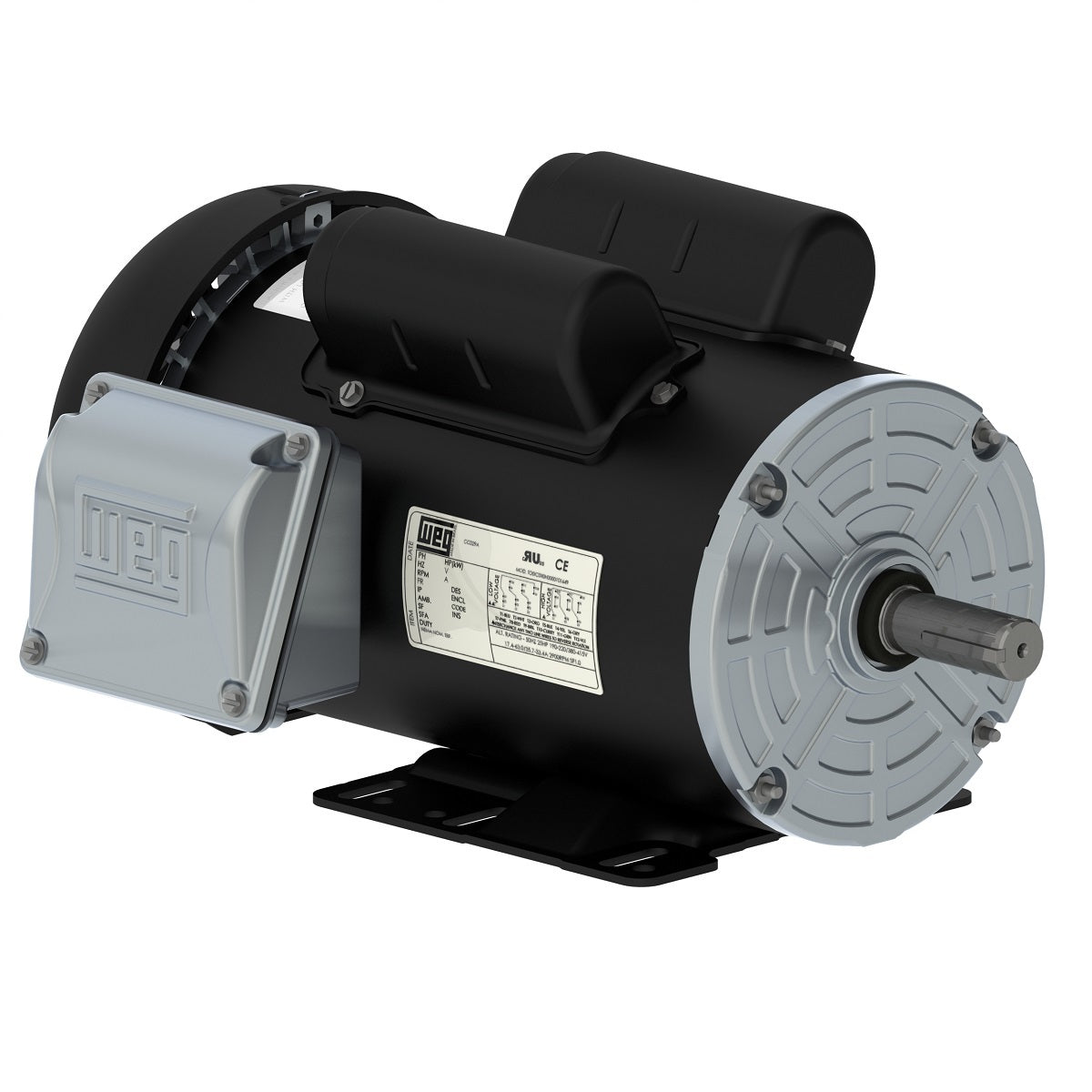

Weg rolled steel TEFC Single-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. These totally enclosed fan cooled (TEFC) motors offer IP55 ingres protection against dust, dirt, and moisture. The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
Share
Specifications, Features and Documentation
-
Specs
Model: .2518ES1BW56-S
Phase: Single-Phase
Power: 0.25 HP
RPM: 1800
Frame: 56
Enclosure: TEFC
Voltage: 115/208-230V
Bearings: Ball Bearing
Weight: 19.6 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Totally Enclosed Fan Cooled (TEFC)
- IP 55 Ingress Protection
- NEMA MG 1 Standard Spec'd
- Oversized Terminal Box - 90° Rotatable
- Ball Bearings
- V-ring Shaft Seals
- WEG Warranty:
- 36 Months on Premium and Super Premium Efficiency Motors
- 18 Months on Standard and High Efficiency Motors
-
More Documentation
