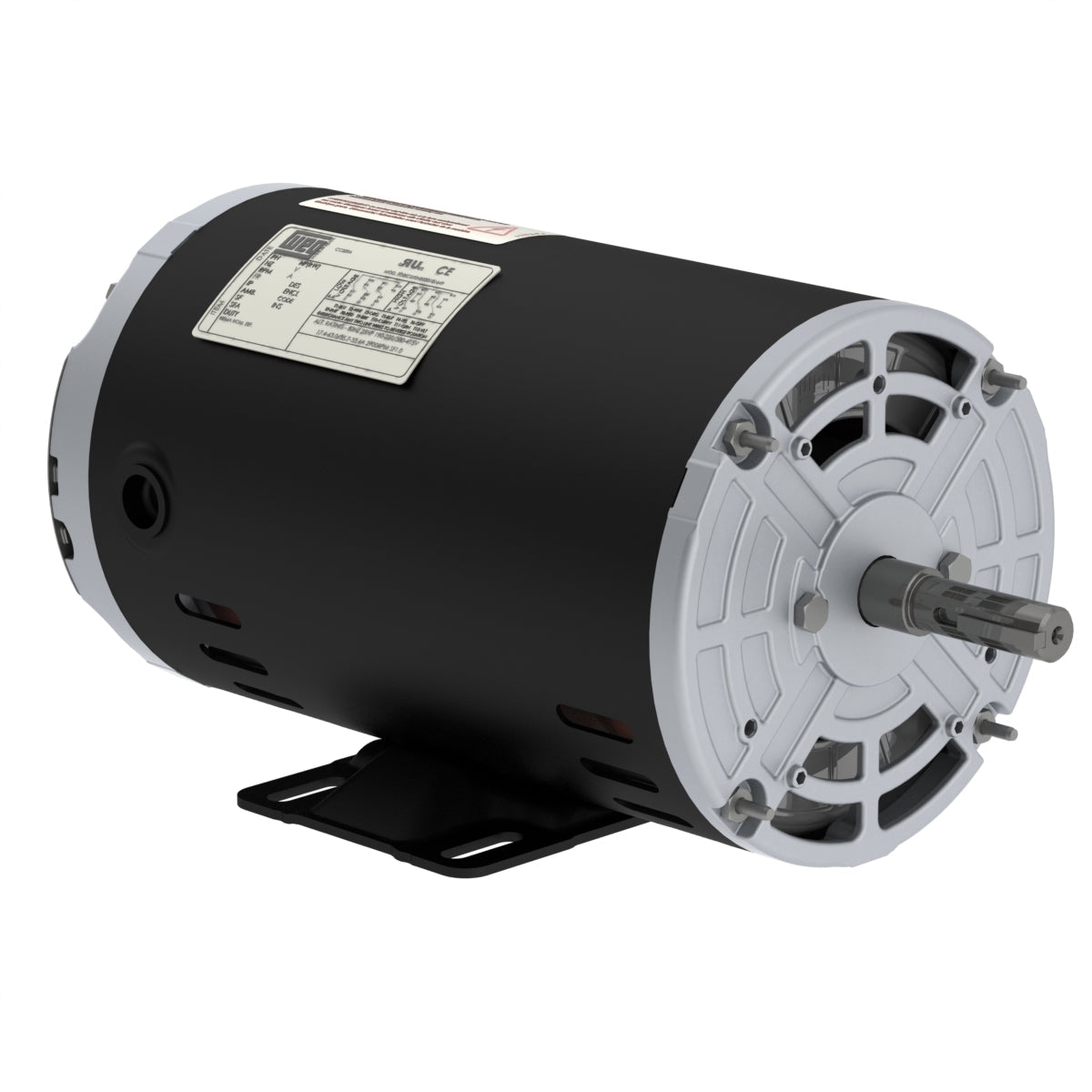

Weg .2512OT3E56-S 0.25 HP 1200 RPM 56 ODP Three-Phase Motor
Weg .2512OT3E56-S 0.25 HP 1200 RPM 56 ODP Three-Phase Motor
Regular price
$216.00
Regular price
$288.00
Sale price
$216.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg rolled steel Open Drip Proof (ODP) Three-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. The open enclosure offers a light-weight, quite and cost-effective motor with IP 21 rated protection.The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
This model is rated NEMA Premium Efficiency (DOE Compliant)
Share
Specifications, Features and Documentation
-
Specs
Model: .2512OT3E56-S
Phase: Three-Phase
Power: 0.25 HP
RPM: 1200
Frame: 56
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 19.75 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- General Purpose
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
-
More Documentation
