Weg 12509ET3G447T-W22 125 HP 900 RPM 447T TEFC Three-Phase Motor

VendorWEG
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress... Read more

SKU: Weg-12509ET3G447T-W22
Barcode: 7891327749030

Normally ships within 24 hours

$28,175.00 $25,075.75

Description

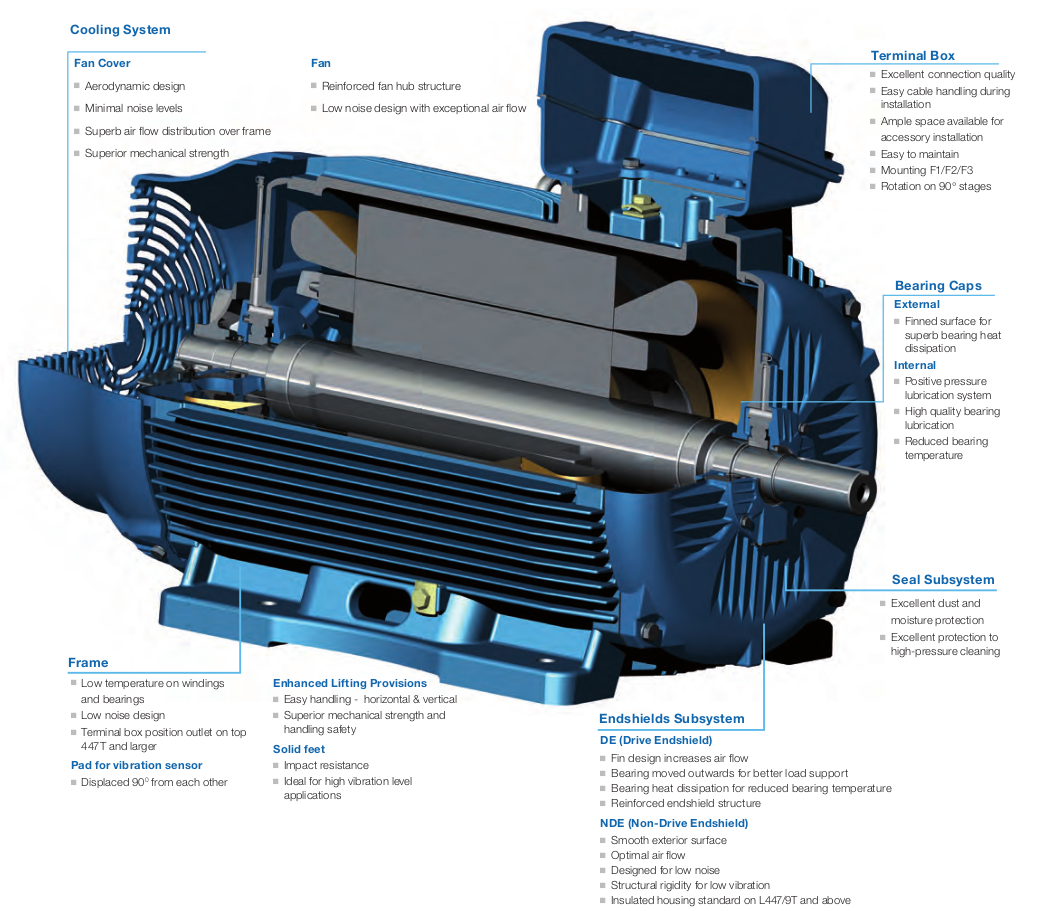

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.

Specifications

Model: 12509ET3G447T-W22
Phase: Three-Phase
Power: 125 HP
Base RPM: 900
Frame: 447T
Enclosure: TEFC
Enclosure Rating: IP55
Voltage: 460V PWS
Construction: Cast Iron
Weight: 2225.34 lb
